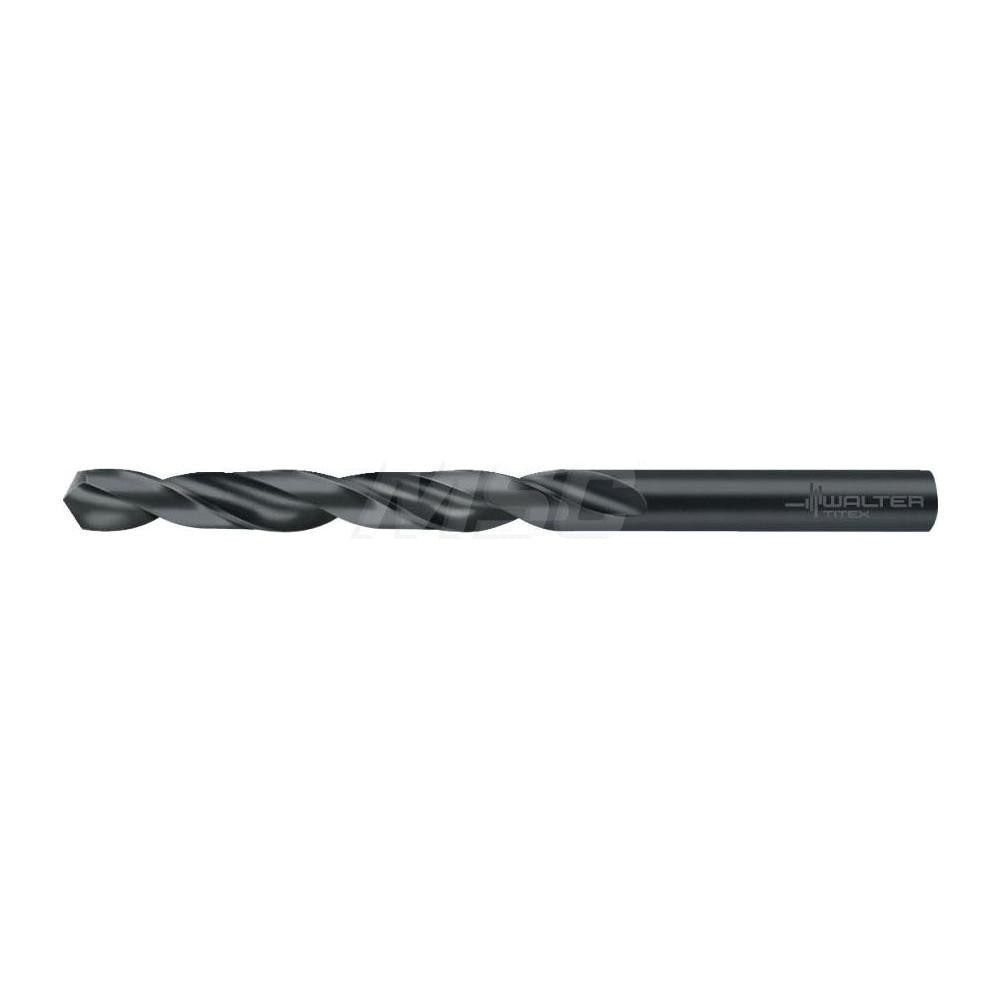

Walter-titex 5058512 Jobber Drill Bit 1.5 Mm Hss

Product Description

The WALTER-TITEX 5058512 is a jobber length twist drill bit designed for general-purpose hole-making in ferrous materials including cast iron and steel. The bit measures 1.5 mm in diameter (0.0591 inches) with an overall length of 40 mm (approximately 1-37/64 inches). It is manufactured from high speed steel (HSS) with an oxide coating that provides basic corrosion resistance and reduces friction during cutting. The 118-degree standard point angle and web-thinned, tapered web geometry help reduce thrust force and improve chip evacuation. Two spiral flutes in a regular helix pattern clear material efficiently during drilling. Licensed HVAC technicians, plumbers, electricians, and general mechanical contractors keep these bits on hand for everyday metal drilling tasks.

This drill bit is suited for drilling blind holes and stack drilling operations in cast iron and steel workpieces. The straight-cylindrical shank accepts standard three-jaw drill chucks, making the bit compatible with handheld drills, drill presses, and CNC machines running appropriate collets. The Series A1211 designation places this bit within a metric jobber-length product family manufactured to ANSI, ISO, BS, and DIN specifications, giving trade users confidence in dimensional consistency across the size range. Maximum recommended drilling depth is 15 mm (0.591 inches) at an 8xD flute-to-diameter ratio.

Key Features

• 1.5 mm (0.0591 inch) diameter with h8 diameter tolerance for precise, repeatable hole sizing
• High speed steel construction with oxide coating for basic wear and corrosion resistance
• 118-degree standard point angle with web-thinned, tapered web for reduced entry thrust
• Two regular-spiral flutes optimized for chip evacuation in cast iron and steel
• Straight-cylindrical shank fits standard drill chucks without adapters
• Rated for blind hole and stack drilling applications per Series A1211 design intent

Compatibility

Designed for use in cast iron and steel workpieces. Fits any standard three-jaw drill chuck or collet accepting a 0.0591-inch straight shank. Manufactured to ANSI, ISO, BS, and DIN specifications within the 0.0500 to 0.1000 inch (0.00 to 2.00 mm) size range of the A1211 series.

Installation Notes

Secure the shank fully in the chuck before drilling and verify chuck key is removed before powering the tool. Power down and de-energize any equipment being drilled into before beginning work. Use appropriate cutting fluid or coolant for extended runs in steel, even though this bit does not feature through-coolant capability. Dispose of metal chips per shop safety protocols and wear appropriate eye and hand protection in accordance with applicable OSHA and shop safety standards.
