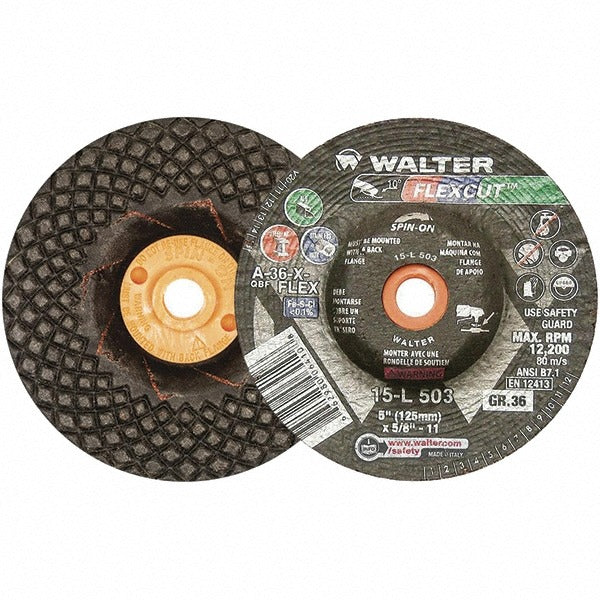

Walter Surface Technologies 15L503 Type 29 Grinding Wheel

Product Description

The WALTER SURFACE TECHNOLOGIES 15L503 is a Type 29 depressed center grinding wheel designed for use with angle grinders in demanding metal fabrication and surface preparation work. It measures 5 inches in diameter with a 5/8-11 threaded hub and is constructed from aluminum oxide abrasive at a 36 grit coarse grade. Rated to a maximum of 12,200 RPM, this wheel handles aggressive material removal on steel, stainless steel, aluminum, and other non-ferrous metals. It weighs 0.042 pounds. Licensed tradespeople and skilled fabricators working in shop or field environments are the primary users of this wheel.

This wheel suits residential and commercial metal fabrication, weld blending, deburring, and surface conditioning applications. The Type 29 conical profile allows for an optimized contact angle when working on flat or curved surfaces, making it a practical choice for pipe work, structural steel, and sheet metal operations. Compatible with standard angle grinders accepting a 5/8-11 threaded spindle connection, it performs across a range of grinding tasks where coarse material removal is required.

Key Features

• Type 29 depressed center profile optimized for angle grinding at low contact angles
• Aluminum oxide abrasive, 36 grit coarse grade for aggressive stock removal
• 5 inches diameter with 5/8-11 threaded connector for secure angle grinder mounting
• 12,200 RPM maximum rated speed
• Compatible with aluminum, non-ferrous metals, stainless steel, and carbon steel

Compatibility

Designed for use with angle grinders equipped with a 5/8-11 threaded spindle. Suitable for material applications including aluminum, non-ferrous metals, stainless steel, and steel.

Installation Notes

Installation and wheel changes should be performed by qualified personnel following ANSI B7.1 safety standards for abrasive wheel use. Always power down and disconnect the angle grinder before mounting or removing the wheel. Verify that the grinder spindle speed does not exceed the 12,200 RPM maximum rated speed of this wheel before operation. Inspect the wheel for cracks or damage before each use and never use a damaged wheel.
