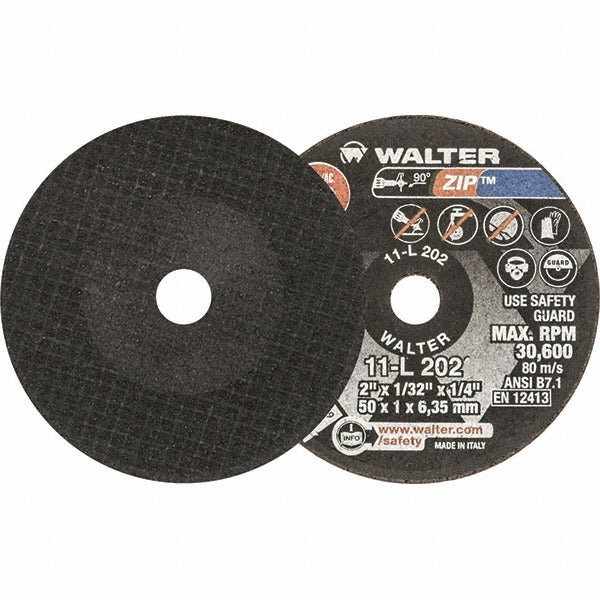

Walter Surface Technologies 11L202 Type 1 Cut-off Wheel

Product Description

The WALTER SURFACE TECHNOLOGIES 11L202 is a Type 1 (01/41) aluminum oxide cut-off wheel designed for precision cutting on steel and stainless steel. Measuring 2 inches in diameter and 1/32 inch thick with a 1/4 inch arbor hole, this reinforced resinoid-bond wheel carries a maximum speed rating of 30,600 RPM. The 24-grit abrasive structure delivers aggressive material removal, making it well suited for tight-access cutting tasks where a standard larger wheel cannot reach. The black wheel color is standard for this abrasive formulation and helps differentiate it from grinding wheels on the job.

This cut-off wheel is intended for use with die grinders in applications involving steel and stainless steel. Its compact 2 inch diameter makes it ideal for cutting in confined spaces, such as inside tubing, along weld seams, or in areas where clearance is limited. Fabricators, pipe fitters, welders, and maintenance technicians commonly use this wheel size for detail cuts and deburring work on both ferrous and stainless workpieces. It is sold individually and is suitable for light-duty production and service environments.

Key Features

• Type 1 (01/41) flat profile for straight cut-off operations
• Aluminum oxide abrasive, reinforced construction with resinoid bond
• 24 grit for aggressive cutting action on steel and stainless steel
• 30,600 maximum RPM rating for compatibility with standard die grinders
• 2 inch diameter and 1/4 inch arbor hole for use in compact, tight-access applications
• 1/32 inch wheel thickness minimizes material loss per cut

Compatibility

Designed for use with die grinders. Rated for steel and stainless steel applications. Arbor hole size of 1/4 inch is standard for most die grinder mandrels used with small-diameter cut-off wheels.

Installation Notes

Always verify that the tool spindle speed does not exceed the 30,600 RPM maximum rating marked on the wheel before mounting. Inspect the wheel for cracks or chips before each use and discard any damaged wheels immediately. Wear appropriate eye protection, a face shield, and gloves when operating cut-off wheels, in accordance with ANSI B7.1 and applicable shop safety standards. Never use a cut-off wheel as a grinding wheel or apply side pressure to the wheel face.
