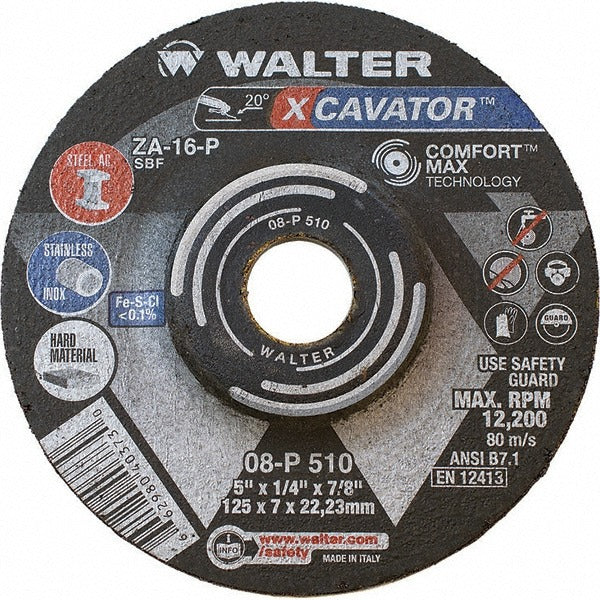

Walter Surface Technologies 08P510 Type 27 Grinding Wheel

Product Description

The WALTER SURFACE TECHNOLOGIES 08P510 is a Type 27 depressed center grinding wheel designed for heavy-duty material removal on angle grinders. It measures 5 inches in diameter and 1/4 inches thick, with a 7/8 inch arbor hole for standard angle grinder spindle compatibility. The abrasive material is aluminum oxide at 16 grit, making it aggressive enough for rapid stock removal on hard metals and alloys. The resinoid bond holds the abrasive securely under load, and the wheel is rated to a maximum of 12,200 RPM. Licensed tradespeople performing weld grinding, surface prep, or deburring work will find this wheel well suited to demanding production environments.

This wheel is intended for use on angle grinders in applications involving alloys, cast iron, hard metal, stainless steel, steel, and tungsten. The 16-grit aluminum oxide construction favors aggressive grinding over finishing, making it a practical choice for fabrication shops, pipefitters, ironworkers, and maintenance mechanics who need fast, consistent material removal. It is sold individually and suited for both residential shop and commercial fabrication environments.

Key Features

• Type 27 depressed center profile for flush and surface grinding clearance
• 16-grit aluminum oxide abrasive for aggressive stock removal
• Resinoid bond construction for durability under continuous load
• 12,200 RPM maximum speed rating for standard angle grinder compatibility
• 7/8 inch arbor hole fits common angle grinder spindles
• Rated for alloys, cast iron, hard metal, stainless steel, steel, and tungsten

Compatibility

Designed for use with angle grinders equipped with a 7/8 inch arbor. Suitable for grinding alloys, cast iron, hard metal, stainless steel, steel, and tungsten per manufacturer material application data.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive wheel safety per ANSI B7.1 standards. Always inspect the wheel for cracks or damage before mounting and never exceed the rated maximum RPM of 12,200. Ensure the grinder guard is in place before operation and power down the tool completely before mounting or removing the wheel. Use the correct flange and arbor hardware specified for Type 27 wheels.
