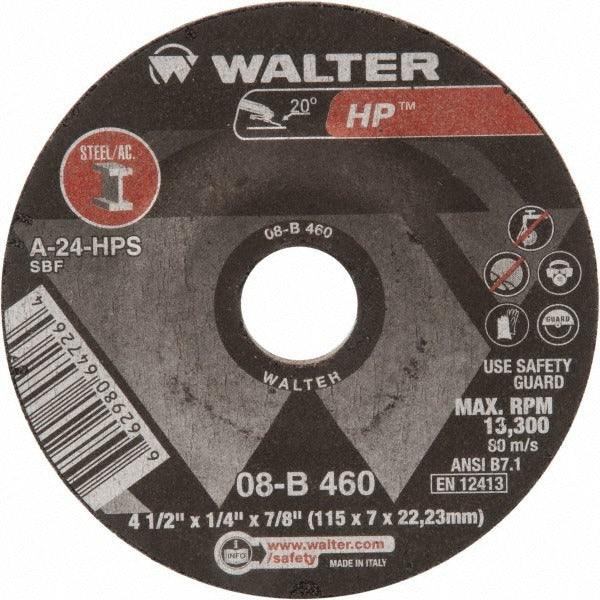

Walter Surface Technologies 08B460 Type 27 Grinding Wheel

Product Description

The WALTER SURFACE TECHNOLOGIES 08B460 is a Type 27 depressed center grinding wheel designed for aggressive material removal on ferrous and stainless steel surfaces. Measuring 4.5 inches in diameter and 0.25 inches thick with a 0.875-inch arbor hole, it mounts directly to standard angle grinders via an arbor connector. The aluminum oxide abrasive grain at 24 grit provides a very coarse cutting action suited to weld grinding, surface prep, and stock removal. A resinoid bond holds the grain matrix together under sustained load, rated to a maximum of 13,300 RPM.

This wheel is intended for use with angle grinders in fabrication, maintenance, and metalworking applications. It performs on carbon steel and stainless steel workpieces, making it a common choice for welding shops, structural steel contractors, and industrial maintenance crews. The depressed center profile keeps the wheel body clear of the workpiece edge, allowing flat and flush grinding along surfaces and into tight weld joints.

Key Features

• Type 27 depressed center profile for flat and flush grinding applications
• 24 grit aluminum oxide abrasive for very coarse, high-removal-rate cutting action
• Resinoid bond construction for durability under continuous grinding load
• 13,300 RPM maximum speed rating for standard angle grinder use
• 0.875-inch arbor hole fits common angle grinder spindle arbors
• Rated for use on carbon steel and stainless steel

Compatibility

Designed for use with angle grinders. Rated for material application on stainless steel and carbon steel. Arbor connector type fits standard angle grinder spindles accepting a 0.875-inch hole.

Installation Notes

Installation and wheel changes must be performed by qualified personnel with the grinder disconnected from power. Inspect the wheel for cracks or damage before mounting and never operate above the marked maximum RPM rating. Ensure the guard is properly in place before operating the tool. Always wear appropriate eye and face protection during grinding operations, in accordance with applicable ANSI and OSHA standards.
