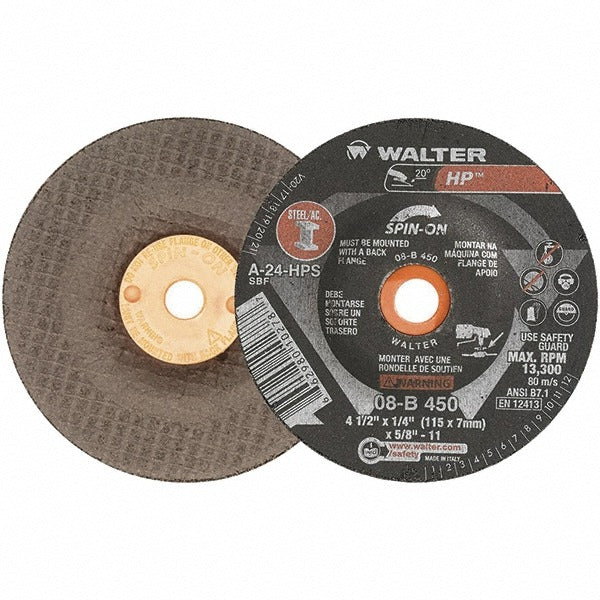

Walter Surface Technologies 08B450 Type 27 Grinding Wheel

Product Description

The WALTER SURFACE TECHNOLOGIES 08B450 is a Type 27 depressed center grinding wheel designed for aggressive material removal on steel and stainless steel. At 4.5 inches in diameter and 0.25 inches thick, it mounts via a 5/8-11 threaded arbor and runs at up to 13,300 RPM on a standard angle grinder. The 24-grit aluminum oxide abrasive with a resinoid bond delivers a very coarse cut rate suited for weld grinding, surface prep, and rapid stock removal. At 1 pound, it is a straightforward field consumable for fabrication and maintenance professionals.

This wheel is a direct fit for angle grinders accepting a 5/8-11 threaded mount. It is used in fabrication shops, structural steel work, pipeline work, and maintenance environments where fast, aggressive grinding on mild steel or stainless steel is required. The Type 27 depressed-center geometry keeps the wheel face low to the work surface, making it well suited for flat and contoured grinding in tight clearances.

Key Features

• Type 27 depressed center profile for flat and surface grinding applications
• 24-grit very coarse aluminum oxide abrasive for aggressive stock removal
• Resinoid bond provides durability and resistance to shock loading during grinding
• Rated to 13,300 RPM - compatible with standard 4.5-inch angle grinders
• 5/8-11 threaded connector for secure, direct mount to angle grinder spindles
• Rated for use on steel and stainless steel

Compatibility

Designed for use with angle grinders accepting a 5/8-11 threaded arbor and rated for 4.5-inch Type 27 grinding wheels. Suitable for material applications on steel and stainless steel.

Installation Notes

Installation and wheel changes should be performed by a qualified operator following ANSI B7.1 safe use standards and the grinder manufacturer's guidelines. Always power down and disconnect the grinder before mounting or removing a wheel. Inspect the wheel for cracks or damage before each use and never exceed the rated maximum RPM. Appropriate PPE including eye protection and a face shield is required during grinding operations.
