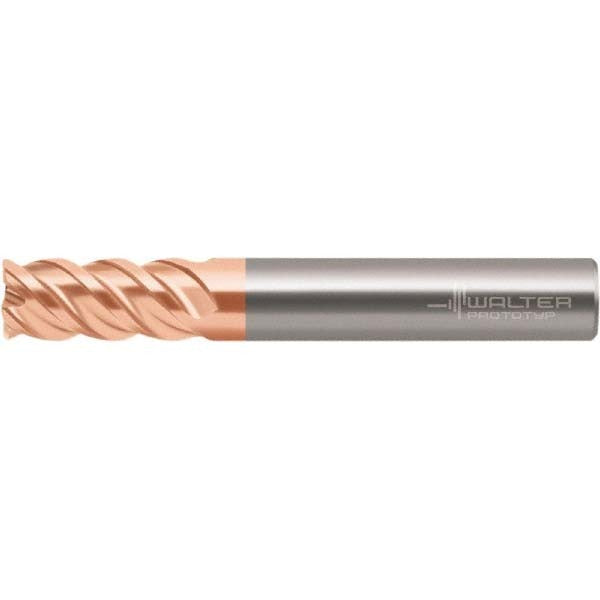

Walter-prototyp 7255003 Corner Radius End Mill 10mm 4FL

Product Description

The WALTER-PROTOTYP 7255003 is a solid carbide corner radius end mill designed for high-performance milling in steel and hard materials. It features a 10 mm cutting diameter, a 22 mm length of cut, and a 1 mm corner radius that reduces stress concentration at the cutting edge and extends tool life. The TiAlSiN PVD coating provides thermal resistance and wear protection during aggressive material removal. With four helical flutes and a high helix style, this end mill is suited for both roughing and finishing passes. It is installed in CNC machining centers and milling machines using a standard straight-cylindrical toolholder.

This end mill is intended for use in steel and hard material applications in precision machining environments. The MC388 series is engineered for demanding cutting conditions where surface finish and dimensional accuracy both matter. The centercutting geometry allows for plunge entry as well as conventional peripheral milling. With a 100 mm overall length and a 60 mm reach length, it accommodates pockets and features requiring extended reach without sacrificing rigidity.

Key Features

• Solid carbide fine grain construction for rigidity and edge retention in hard materials
• TiAlSiN PVD coating for elevated thermal and abrasion resistance
• 1 mm corner radius reduces edge chipping and extends tool life at cutting corners
• Centercutting design allows plunge milling entry
• Right-hand cut, right-hand flute direction with normal pitch for stable chip evacuation
• Extended reach geometry at 60 mm reach length for deep-feature access

Compatibility

Designed for use with standard straight-cylindrical toolholders. Suited for CNC milling applications in steel and hard material workpieces per ISO material codes P and H. Part of the WALTER-PROTOTYP MC388 series.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Power down and lock out the machine spindle before loading or removing the tool. Seat the 10 mm straight-cylindrical shank fully into the toolholder to the specified grip length and torque the retention mechanism per the toolholder manufacturer's specification. Confirm runout with a dial indicator before beginning a cutting cycle.
