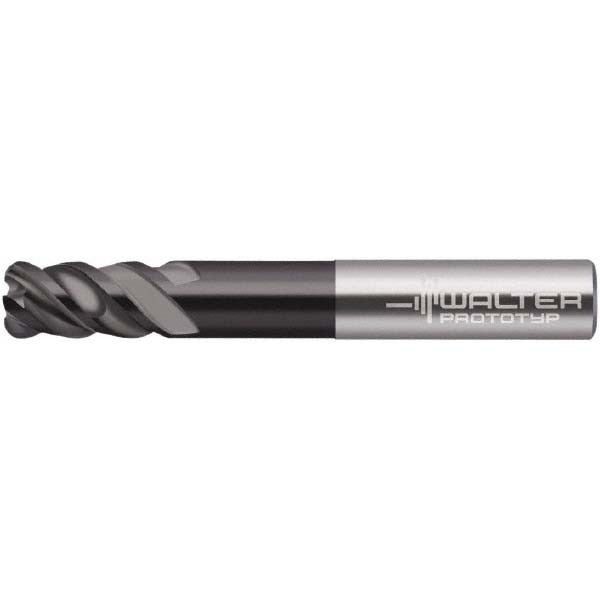

Walter-prototyp 6579293 Corner Radius End Mill 1/2in 4 Flute

Product Description

The WALTER-PROTOTYP 6579293 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining environments. Built to the MC326 series specification, it features a 1/2 inch cutting diameter, a 0.12 inch corner radius, and a TiAlN (PVD) coating that extends tool life at elevated cutting temperatures. The 4-flute, right-hand spiral geometry supports both roughing and finishing operations in a single tool. With a long-length configuration and extended reach, this end mill suits deep-pocket and complex-profile work where standard-length tooling falls short. It is a single-end, centercutting design, allowing direct plunge entry where required.

This end mill is intended for use in CNC machining centers with standard toolholders accepting a 1/2 inch straight-cylindrical shank. Primary workpiece materials include steel, stainless steel, cast iron, and superalloys and titanium. Secondary materials include hard materials and additional grades of cast iron and stainless steel. The extended reach and long length of cut make it well suited to deep-wall milling, rib machining, and contour finishing in aerospace, die and mold, and general precision metalworking applications.

Key Features

• 0.12 inch corner radius reduces stress concentration and improves surface finish at part edges
• TiAlN PVD coating provides oxidation resistance and thermal hardness for dry and semi-dry cutting
• 4-flute right-hand spiral geometry supports both roughing and finishing operations
• Centercutting design permits direct plunge milling without a pre-drilled pilot hole
• Extended reach with 2.967 inch reach length suits deep-pocket and long-cavity work
• High helix style promotes chip evacuation in gummy and work-hardening materials

Compatibility

Designed for use with standard toolholders accepting a 1/2 inch straight-cylindrical shank. Compatible with primary workpiece materials including steel, stainless steel, cast iron, and superalloys and titanium.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. The machine spindle must be stopped and the tool path verified before mounting. Secure the shank fully within the toolholder to the manufacturer-specified engagement depth and confirm runout with a dial indicator before the first cut. Do not exceed the toolholder's rated speed and torque capacity for this shank diameter.
