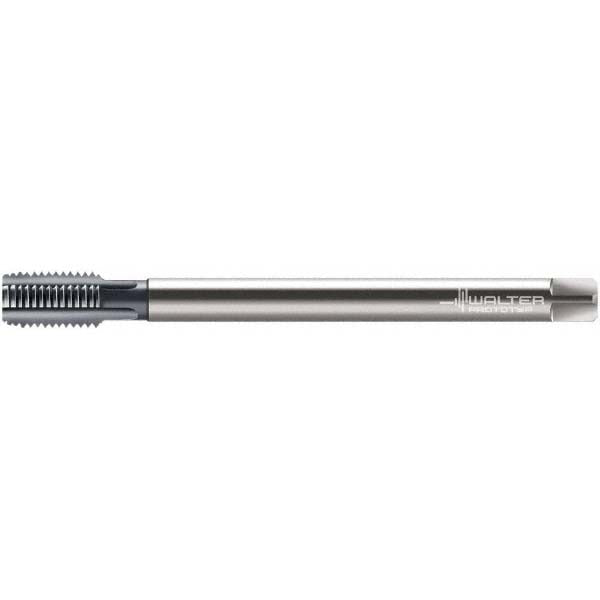

Walter-prototyp 5603128 Extension Tap M12x1.75 Ticn

Product Description

The WALTER-PROTOTYP 5603128 is a metric extension tap designed for threading M12 x 1.75 holes in production and toolroom environments. Built from powdered metal with a TiCN coating, it delivers improved wear resistance and surface hardness compared to standard high-speed steel taps. The modified bottoming chamfer allows threading close to the bottom of blind holes. At 8.661 inches overall length, it provides reach in deep or obstructed bore locations. The 6HX class of fit produces a tight-tolerance metric thread suited to precision assemblies. Machinists and tool-and-die technicians are the primary users of this tool.

This extension tap is used in machining centers, CNC lathes, and drill press setups where standard-length taps cannot reach the required depth. The reduced shank and 9.00 mm shank diameter allow it to seat in standard tap holders and extension adapters. The right-hand flute direction and right-hand thread cut standard right-hand M12 x 1.75 internal threads in ferrous and non-ferrous materials. Applications include production threading of deep bosses, fixture plates, and structural machine components requiring metric fastener engagement.

Key Features

• M12 x 1.75 metric thread form with 6HX class of fit for precision tolerance control
• TiCN coating increases surface hardness and reduces tool wear in abrasive materials
• Powdered metal construction provides improved toughness over conventional HSS
• Modified bottoming chamfer allows threading to near-bottom depth in blind holes
• 8.661 inch overall length gives extended reach in deep or recessed bores
• Reduced shank design compatible with standard tap holders and extension chucks

Compatibility

Designed as an OEM-style replacement or direct substitute for extension taps in the WALTER-PROTOTYP Series E2036436 family. Fits standard tap holders accepting a 9.00 mm shank diameter with a 7.00 mm square drive.

Installation Notes

This tool is installed and operated by machinists following standard tapping procedures. Ensure the workpiece is securely fixtured and the spindle is properly aligned before beginning the tapping cycle. Use an appropriate tapping fluid or cutting oil for the workpiece material to extend tool life and achieve clean thread form. Inspect the tap for wear or chipping before each use and replace if the cutting edges show damage.
