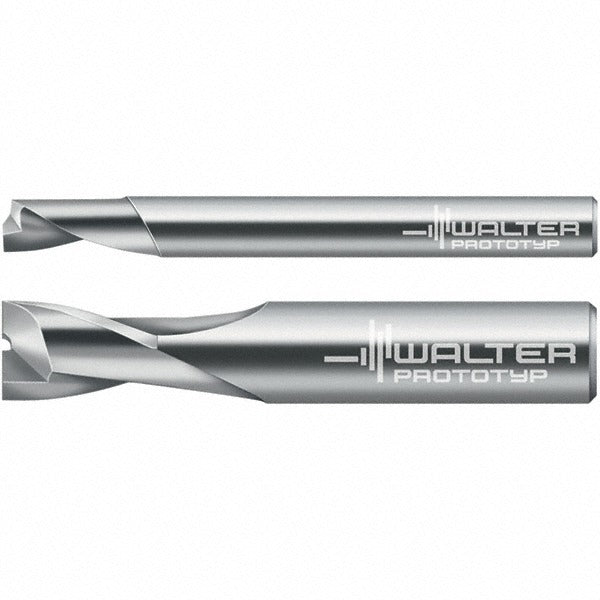

Walter-prototyp 5083995 Square End Mill 0.1969 in 1 Flute Carbide

Product Description

The WALTER-PROTOTYP 5083995 is a single-flute solid carbide square end mill designed for precision milling of non-ferrous metals. With a cutter diameter of 0.1969 inches (5.00 mm) and a length of cut of 0.3937 inches (10.00 mm), this end mill is built for tight-tolerance work where chip evacuation and surface finish are critical. The single-flute geometry provides maximum chip clearance, reducing the risk of recutting in gummy materials such as aluminum, copper, and brass. The 30-degree helix and right-hand spiral flute promote smooth cutting action and efficient chip removal. Solid carbide construction delivers rigidity and wear resistance well beyond HSS tooling.

This end mill is suited for CNC machining centers and manual mills where small-diameter, high-precision cutting is required. Typical applications include slotting, profiling, and contouring of non-ferrous workpieces in aerospace, automotive, and general precision machining environments. The 0.2362-inch (6.00 mm) shank fits standard collets and tool holders in that size range. Overall length is 57.00 mm, making it appropriate for shallow-to-moderate reach applications without sacrificing tool stiffness.

Key Features

• Single-flute design maximizes chip clearance for non-ferrous and gummy materials
• Solid carbide construction for rigidity and extended tool life
• 30-degree right-hand spiral flute for smooth cutting action and efficient chip evacuation
• Bright/uncoated finish suitable for non-ferrous applications where coating adhesion is not required
• Right-hand cut with single-end configuration for straightforward setup
• Series H901451 for direct cross-reference and reorder identification

Compatibility

Designed for use in standard collet systems and tool holders accepting a 0.2362-inch (6.00 mm) shank diameter. Primary workpiece material is non-ferrous metal. Part of the WALTER-PROTOTYP Series H901451.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked out before inserting or removing the end mill from the collet or tool holder. Verify collet size matches the 0.2362-inch shank diameter and that the tool is seated to the correct gauge length before tightening. Do not exceed the tool's rated cutting parameters for the workpiece material being machined.
