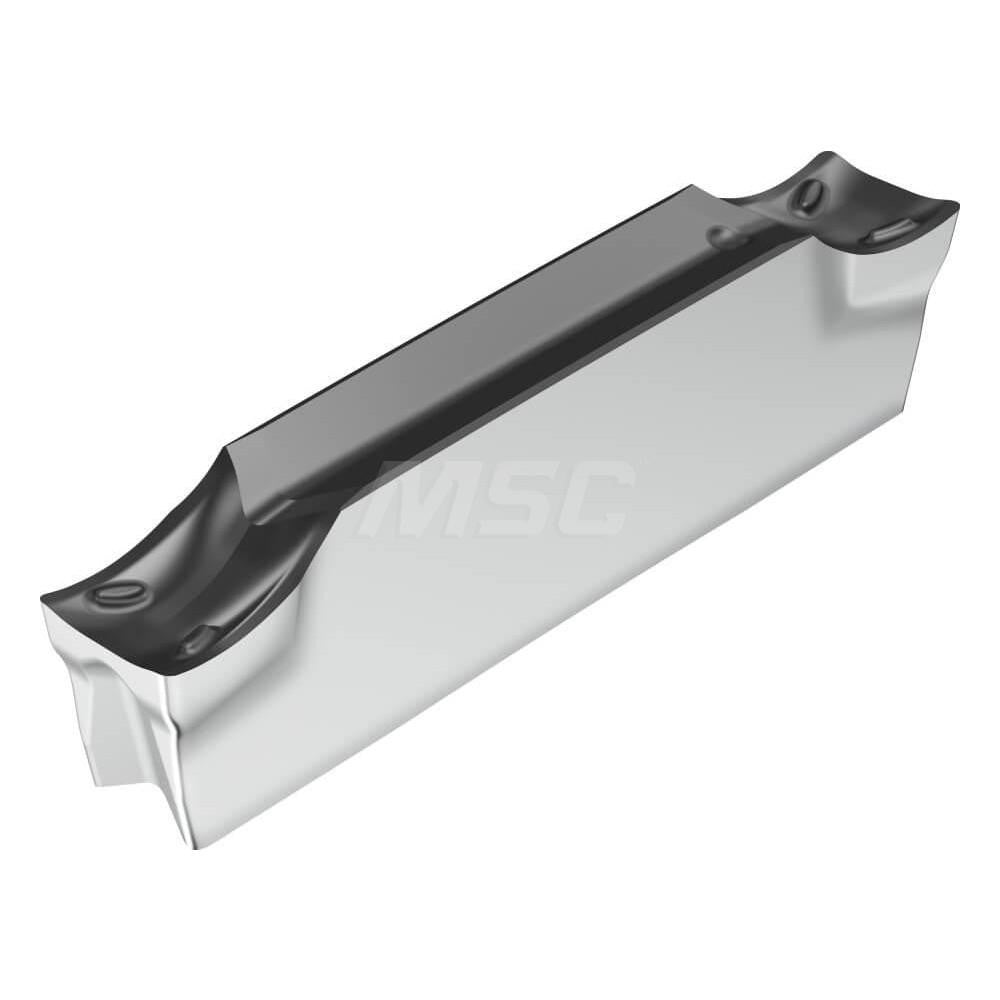

Walter 7910430 Grooving Insert DX18CF6 WSM33S Solid Carbide

Product Description

The WALTER 7910430 is a solid carbide grooving insert designed for precision grooving operations in demanding machining environments. This right-hand insert carries the WSM33S manufacturer grade and features a 0.059-inch cutting width, making it well suited for tight-tolerance groove profiles. The CF6 chip breaker geometry promotes effective chip control, while the PVD-applied aluminum-based coating helps extend tool life under thermal and abrasive loads. Machinists and toolroom professionals working with multi-axis CNC turning centers or grooving tool holders will find this insert compatible with the DX-E-R-CF6 series system.

This insert is intended primarily for machining superalloys, corresponding to primary workpiece material codes M, P, and S. It supports a maximum depth of cut of 17.00 mm and incorporates a 10-degree lead angle to aid chip evacuation and reduce cutting forces at the insert tip. The ANSI and ISO code for this insert is DX181E150R10CF6 WSM33S, and it is classified under insert style DX18 with insert size code 1E150R10. It is rated as a multi-use tool, allowing it to serve across compatible grooving and parting applications within the series.

Key Features

• Solid carbide construction for rigidity and wear resistance in superalloy cutting
• PVD aluminum-based coating extends tool life under high-heat cutting conditions
• CF6 chip breaker geometry for reliable chip control in grooving operations
• Right-hand orientation with a 10-degree lead angle for improved chip evacuation
• 0.059-inch cutting width suits precise, narrow groove profiles
• ANSI and ISO compliant - code DX181E150R10CF6 WSM33S for easy cross-referencing

Compatibility

Designed for use in the WALTER DX-E-R-CF6 series grooving system. Compatible with superalloy workpiece materials designated under material codes M, P, and S. Verify holder compatibility using ANSI and ISO insert code DX181E150R10CF6 WSM33S before ordering.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and the tool holder is secured before seating or removing the insert. Use the appropriate torque wrench and insert-clamping hardware specified by the tool holder manufacturer - do not overtighten the clamping screw. Confirm insert orientation matches the right-hand designation of the holder before initiating a cutting cycle.
