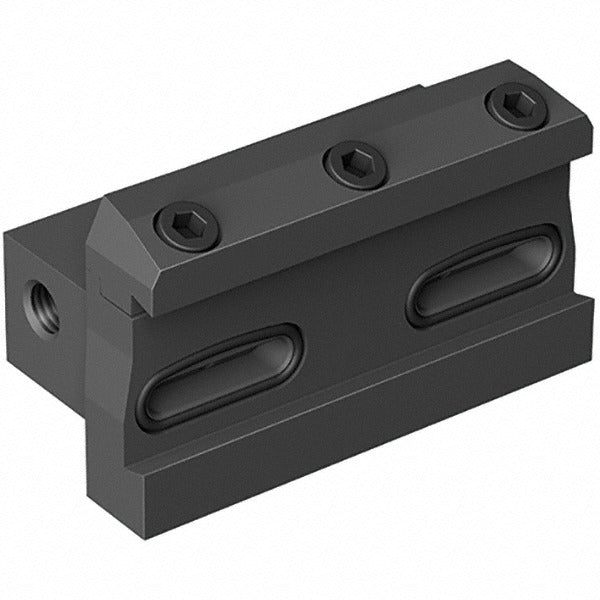

Walter 6687226 Indexable Cutoff Blade Tool Block

Product Description

The WALTER 6687226 is an indexable cutoff blade tool block designed for parting and grooving operations on CNC lathes and turning centers. Built to Series G2661-P-INCH specifications, it accepts a range of WALTER indexable cutoff blades and provides a rigid, repeatable clamping platform. The block measures 3.74 inches overall length with a 1.0 inch square shank height and 1.0 inch shank width, and weighs 1.825 pounds. It is installed by machinists and toolroom technicians working in production turning environments where consistent blade positioning and fast insert changeovers are required.

This tool block is suited for cut-off applications in both job shop and production turning environments. The 1.0 inch square shank fits standard machine tool holders and gang-style turrets commonly found on mid-size CNC lathes. The G2661-P-INCH series is sized for inch-dimension setups, making it a practical choice for shops running imperial tooling standards. Compatible blades span multiple WALTER G-series families, giving toolroom personnel flexibility when selecting blade geometry or width for a specific parting operation.

Key Features

• Series G2661-P-INCH indexable system for fast blade changeover without disturbing setup
• 1.0 inch square shank (25.4 mm height x 25.4 mm width) for secure turret or block-holder mounting
• 3.74 inch overall length suitable for standard CNC lathe turret clearances
• Compatible with a broad range of WALTER G-series indexable cutoff blades
• Cut-off application rating for consistent parting performance across production runs

Compatibility

Compatible blades confirmed by manufacturer data: G1041, G1041-P, G1041C, G1041C-P, G1042, G2042N, G2042N-P, G2042R/L, G2042R/L-P, G2042R/LC-P, G3041, G3041C, G4041-P, G4041C, G4041C-P, and XLCFN. Manufacturers catalog number G2661.16N-32-P.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before mounting or removing the tool block from the turret. Ensure the shank bore and mating surfaces are clean and free of chips before seating the block. Verify blade clamping torque and overhang per the machine tool and tooling system documentation before resuming cutting operations.
