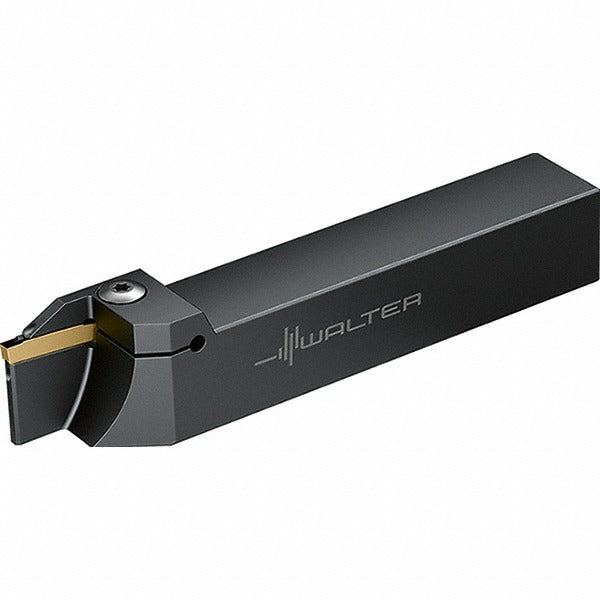

Walter 6607609 Grooving Cutoff Toolholder Right Hand

Product Description

The WALTER 6607609 is a right-hand indexable grooving and cutoff toolholder designed for precision turning operations on CNC lathes and turning centers. Built to the G1011 toolholder style, it accepts GX24 insert size code inserts and uses a clamp-and-screw holding method for secure, repeatable insert clamping under heavy interrupted cuts. The shank measures 1.0 inch by 1.0 inch (25.4 mm x 25.4 mm) with a shank length of 4.3307 inches (110 mm) and an overall length of 5.9055 inches (150 mm). Through-coolant delivery is built in, directing fluid directly to the cutting zone for improved chip evacuation and extended insert life. This holder is part of the G1011-12-20-P-INCH series.

This toolholder is suited for grooving and cutoff applications across a wide range of workpiece materials, including steels, stainless steels, cast irons, non-ferrous metals, high-temperature alloys, and titanium alloys, corresponding to material codes H, K, M, N, P, and S. It handles a maximum groove width of 3.0 mm and a maximum depth of cut of 21.0 mm (0.8270 inches), making it appropriate for both shallow profile grooves and full parting operations on small-to-medium diameter workpieces. Installation is performed by licensed machinists and CNC setup technicians in production and job-shop turning environments.

Key Features

• Right-hand orientation for standard turning center spindle configurations
• Clamp and screw insert holding method provides rigid insert seating under cutting loads
• Built-in through-coolant port directs fluid to the cutting zone for chip control and thermal management
• Accepts GX24 insert size code inserts for grooving and parting operations
• 3.0 mm maximum groove width and 21.0 mm maximum depth of cut
• Universal primary workpiece material rating covers steel, cast iron, stainless, non-ferrous, and superalloy applications

Compatibility

Designed for use with GX24 insert size code grooving and cutoff inserts within the G1011-12-20-P-INCH series. Compatible with tool blocks and turrets accepting a 1.0 inch by 1.0 inch (25.4 mm x 25.4 mm) square shank. No additional specific model or machine compatibility data was provided in the product input.

Installation Notes

This toolholder is installed by qualified machinists or CNC turning center setup technicians. Power down and lock out the machine spindle before inserting or indexing any insert or seating the toolholder in the turret. Use the appropriate torque wrench and manufacturer-specified fasteners when securing the clamp screw to avoid insert rocking or premature seat wear. Verify through-coolant port alignment with the machine tool's coolant supply before running at full cutting parameters.
