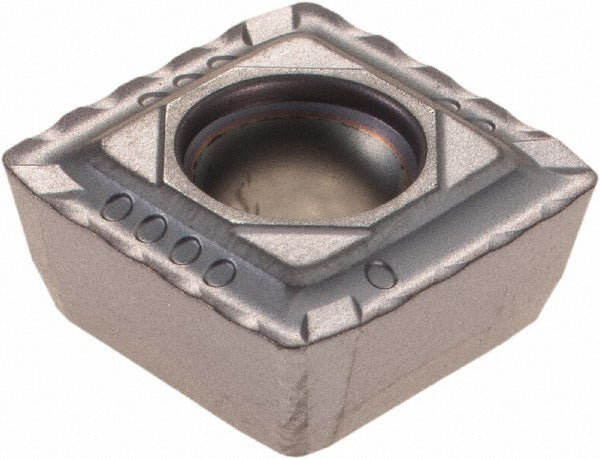

Walter 6154465 Indexable Drill Insert P48448E67 WXP40

Product Description

The WALTER 6154465 is a solid carbide indexable drill insert designed for high-performance drilling applications in stainless steel and steel. Manufactured in the WXP40 grade with a PVD coating process, this insert belongs to the Tiger Tec series and delivers consistent cutting performance in demanding material grades P40, M30, and S30. The square insert shape with a P484 insert style and E67 chipbreaker geometry provides controlled chip evacuation and stable cutting action. With four usable cutting edges per insert, it offers extended tool life and reduced per-edge cost in production drilling operations.

This insert is intended for use in indexable drill tooling systems where right-hand cutting direction is required. It is suited to CNC machining centers, turning centers with live tooling, and dedicated drilling operations targeting stainless steel and carbon or alloy steel workpieces. The E67 chipbreaker geometry is optimized for medium cutting conditions in these material groups. Installation is performed by machinists and tooling specialists in precision metalworking and manufacturing environments.

Key Features

• Tiger Tec series WXP40 grade with PVD coating for wear resistance in steel and stainless steel
• Square insert shape with 90-degree included angle and P484 insert style
• E67 chipbreaker for controlled chip formation in medium cutting conditions
• Four cutting edges per insert for maximum utilization
• Right-hand cutting direction; meets ANSI and ISO standards
• ISO code P4840C-7R-E67 WXP40 for cross-reference and replacement sourcing

Compatibility

Designed as an OEM-style replacement indexable drill insert for tooling systems accepting a size 7, square P484-style insert with a 14.68 mm inscribed circle and E67 chipbreaker. Verify seat geometry and clamping mechanism compatibility with the host drill body before installation.

Installation Notes

Indexable insert replacement is performed by qualified machinists or tooling technicians. Ensure the spindle is fully stopped and the machine is locked out before changing inserts. Clean the insert pocket and inspect the seat for wear or debris before seating the new insert. Torque the clamping screw according to the drill body manufacturer's specification for the insert size; do not apply values not supplied by that manufacturer.
