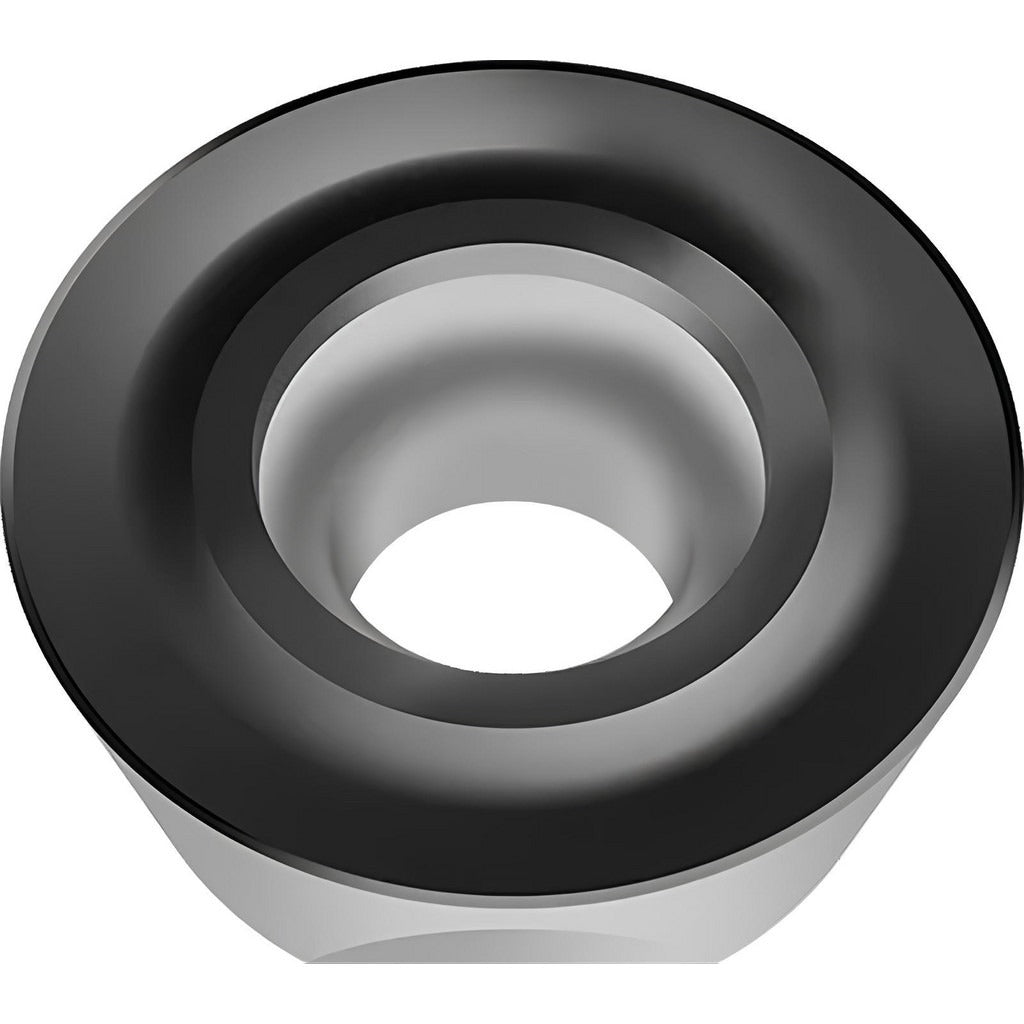

Walter 5888009 Round Milling Insert WKP35S Carbide

Product Description

The WALTER 5888009 is a solid carbide round milling insert in the ROHX series, designed for high-performance metal removal in milling applications. It carries a WKP35S manufacturer grade and a CVD-applied multilayer coating of TiCN / Al2O3 / TiCN for wear resistance and thermal stability. The insert features a positive rake angle of 10 degrees, a honed cutting edge style, and four cutting edges for extended tool life per insert. With a neutral hand orientation and a screw-type holding method, it fits standard ROHX toolholders used by licensed machinists and CNC tooling specialists.

This insert is suited for milling steel and cast iron in both roughing and semi-finishing passes. The D57 chip breaker geometry supports controlled chip evacuation at moderate-to-aggressive depths of cut. It is compatible with the F2334R cutter series and is well matched to operations on CNC machining centers where consistent surface finish and dimensional accuracy are required. The ANSI and ISO designations are both ROHX1204M0-D57 WKP35S, making cross-referencing straightforward for tooling engineers and procurement teams.

Key Features

• Round insert shape (ROHX series) with 360-degree included angle for full-perimeter cutting
• Four cutting edges per insert for extended service life
• CVD multilayer coating: TiCN / Al2O3 / TiCN for heat and wear resistance
• Positive rake and honed cutting edge for reduced cutting forces on steel and cast iron
• D57 chip breaker geometry for controlled chip flow
• Compatible with F2334R cutter series; screw-mounted retention

Compatibility

Compatible with the F2334R cutter series. ANSI and ISO code ROHX1204M0-D57 WKP35S. Designed for milling of steel and cast iron workpiece materials.

Installation Notes

Installation and insert indexing should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the spindle before changing inserts. Use the correct torx or hex key to seat the clamping screw to the toolholder manufacturer's specified torque range - do not overtighten. Confirm insert seating and runout before resuming cutting operations.
