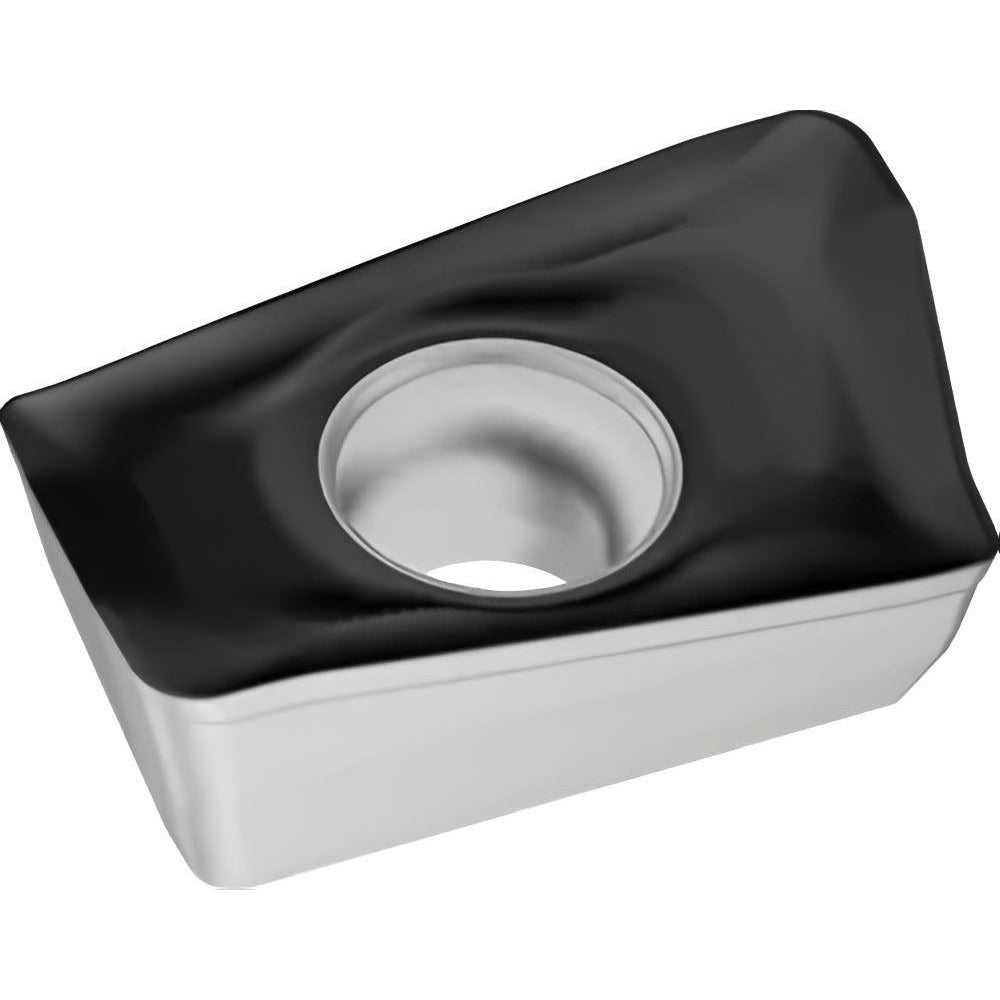

Walter 5881326 Milling Insert WKP35S Solid Carbide

Product Description

The WALTER 5881326 is a solid carbide milling insert in the ADMT series, designed for high-performance face and shoulder milling operations in steel and cast iron. Carrying the WKP35S manufacturer grade, this insert features a CVD-applied multilayer coating of TiCN, Al2O3, and TiCN for extended tool life and wear resistance. The parallelogram insert shape with an 85-degree included angle and a positive rake angle of 16 degrees reduces cutting forces and supports clean chip evacuation. It is installed by machinists and CNC tooling specialists in production and job-shop environments.

This insert is suited for milling steel and cast iron workpieces in both roughing and semi-finishing applications. The ADMT10T308R-F56 geometry, with its F56 chip breaker and chamfered and honed cutting edge style, performs reliably in interrupted cuts and continuous passes. It is compatible with the F4042R cutter series. Typical applications include face milling and shoulder milling on CNC machining centers handling P-grade steels and K-grade cast irons.

Key Features

• Solid carbide construction with CVD multilayer TiCN, Al2O3, TiCN coating for wear resistance
• WKP35S grade rated for P35 and K35 material applications including steel and cast iron
• Positive rake angle of 16 degrees with chamfered and honed cutting edge reduces cutting forces
• F56 chip breaker geometry supports controlled chip formation across a range of feed rates
• Right-hand cut orientation with screw-held mounting for secure insert seating
• Two cutting edges per insert for extended usable tool life per piece

Compatibility

Compatible with the F4042R cutter series. Designed for use with ADMT-series toolholders accepting the 10T308 insert size. Suitable for machining primary workpiece materials coded P (steel) and K (cast iron) per ISO material classification.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before changing inserts. Secure the insert using the appropriate screw torque driver per the toolholder manufacturer specifications for ADMT-series seats. Inspect the insert pocket and seating surface for chips or debris before seating a new insert to ensure proper clamping and runout control.
