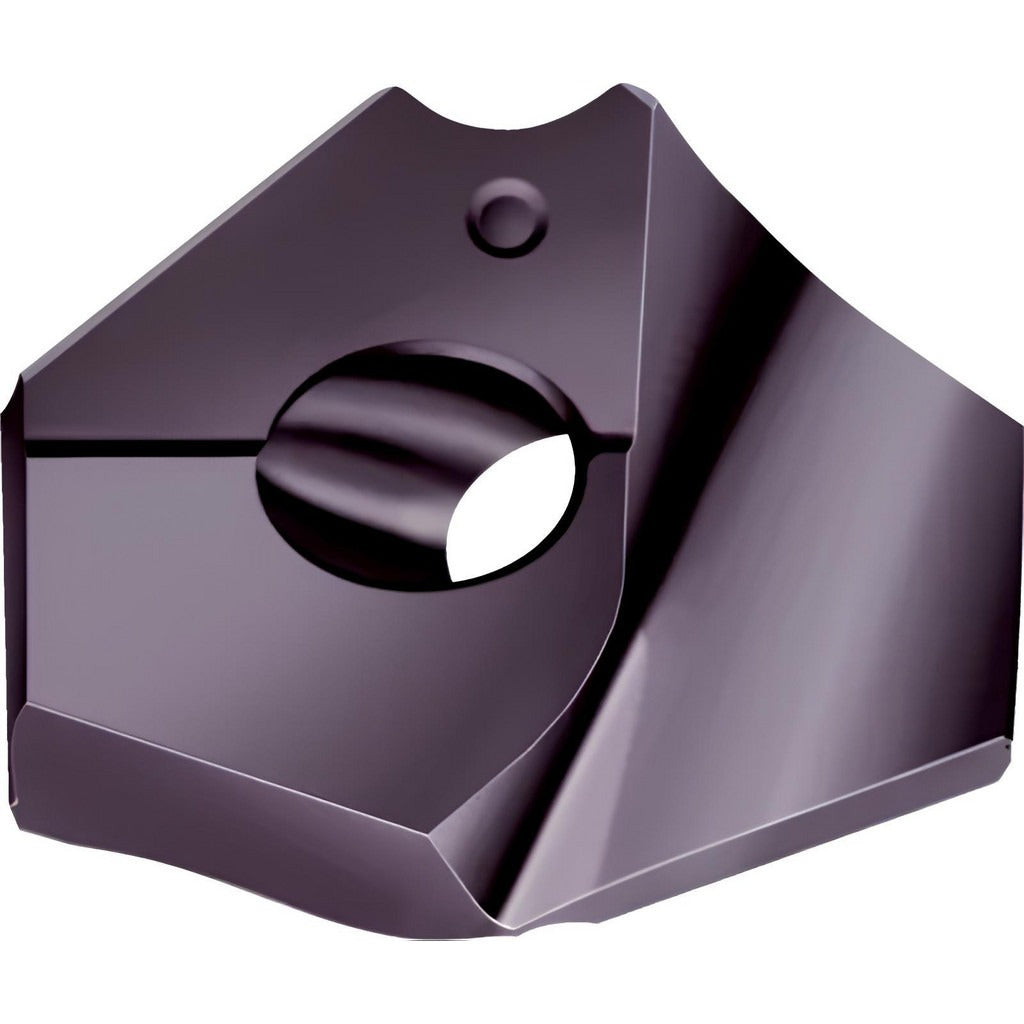

Walter 5833854 Replaceable Drill Tip 0.6560 in WMP35

Product Description

The WALTER 5833854 is a replaceable drill tip designed for use in modular indexable drill systems. It features a 0.6560 inch (16.67 mm) cutting diameter, a 140-degree drill point angle, and is manufactured from solid carbide in Grade WMP35. The TiAlN coating is applied via PVD process, providing thermal resistance and wear protection during high-speed drilling operations. This tip is engineered for cutting superalloys, titanium, steel, and stainless steel. It is installed by machinists and tool-and-die professionals in CNC turning and machining centers where consistent hole geometry and repeatable tool performance are required.

This replaceable tip fits Insert Seat Size C and belongs to the P6003 series. It is suited for production drilling in aerospace, automotive, and general manufacturing environments where difficult-to-machine materials such as superalloys and titanium are commonly encountered. It is also applicable to steel and stainless steel workpieces, making it a versatile option across primary and secondary material categories. The single-flute helical design and regular spiral promote chip evacuation in deep-hole applications.

Key Features

• 0.6560 inch (16.67 mm) cutting diameter for precise bore sizing
• Solid carbide construction in Grade WMP35 for hardness and edge retention
• TiAlN coating via PVD process for thermal and wear resistance
• 140-degree standard point angle for accurate entry in tough alloys
• Helical flute with regular spiral promotes chip flow
• Clamp-style insert holding method for secure seating and repeatable runout

Compatibility

Designed for use with WALTER P6003 series modular indexable drill bodies requiring Insert Seat Size C. Compatible with the ISO designation P6003-D16,66R WMP35.

Installation Notes

This replaceable tip is installed by qualified machinists following the tool manufacturer's assembly procedure for the P6003 series drill body. Power down and lock out the machine spindle before seating or removing the tip. Use the correct torx or clamping key as specified by the drill body manufacturer to secure the tip without over-torquing the clamp screw. Verify runout with a dial indicator after installation before returning the tool to service.
