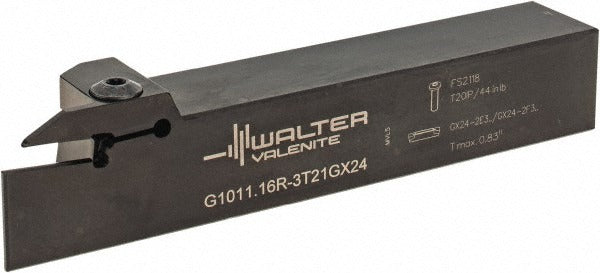

Walter 5622791 Grooving Cutoff Toolholder Right Hand

Product Description

The WALTER 5622791 is a right-hand indexable grooving and cutoff toolholder in the G1011 series, designed for external turning operations on CNC lathes and turning centers. It accepts GX24-2E3/F3 series inserts secured by a screw-clamp holding method, providing rigid, repeatable edge positioning. The shank measures 1 inch x 1 inch (25.4 x 25.4 mm) with a shank length of 4.331 inches (110 mm) and an overall length of 5.906 inches (150.01 mm). Groove width range is 0.118 to 0.125 inches (3 to 3.18 mm), and maximum depth of cut is 0.827 inches (21.01 mm). Installed by machinists and CNC tooling technicians, this holder is suited for production grooving and cutoff applications across a broad range of workpiece materials.

This toolholder is built for external grooving and cutoff operations and is compatible with universal workpiece material groups, including cast iron, non-ferrous, stainless, steel, superalloys, and general materials (ISO material codes H, K, M, N, P, S). The G1011 series head design provides consistent positioning for repeatability across high-volume turning operations. It is well suited for use in job shop and production environments where multiple material types are encountered in a single setup.

Key Features

• Right-hand external grooving and cutoff configuration for standard CNC lathe setups
• Screw-clamp insert holding method for secure, repeatable insert positioning
• Compatible with GX24-2E3/F3 series inserts, including multiple grade and geometry options
• Groove width range of 0.118 to 0.125 inches (3 to 3.18 mm) for precise groove sizing
• Maximum depth of cut of 0.827 inches (21.01 mm) supports deep grooving and cutoff cycles
• Universal material compatibility across ISO groups H, K, M, N, P, and S

Compatibility

Designed for use with GX24-2E3/F3 series inserts. Confirmed compatible insert part numbers include: GX24-2E300N02-CE4, GX24-2E300N02-CF5, GX24-2E300N02-CF6, GX24-2E300N020-CE4, GX24-2E300N03-GD3, GX24-2E300N03-GD6, GX24-2E300N03-UD6, GX24-2E300N03-UF4, GX24-2E300N030-GD3, GX24-2E300N030-UA4, GX24-2E300N030-UF4, GX24-2E300N15-RD4, and GX24-2E300N150-RD4.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Verify the machine spindle is fully stopped and the machine is in a safe state before mounting or adjusting the toolholder. Ensure the shank seating surfaces are clean and free of chips before clamping to prevent runout. Follow the machine manufacturer and tooling system torque and clamping guidelines for the toolpost or turret used.
