Walter 5614916 Turning Insert Carbide 3/8 in Ic Ccmt

Product Description

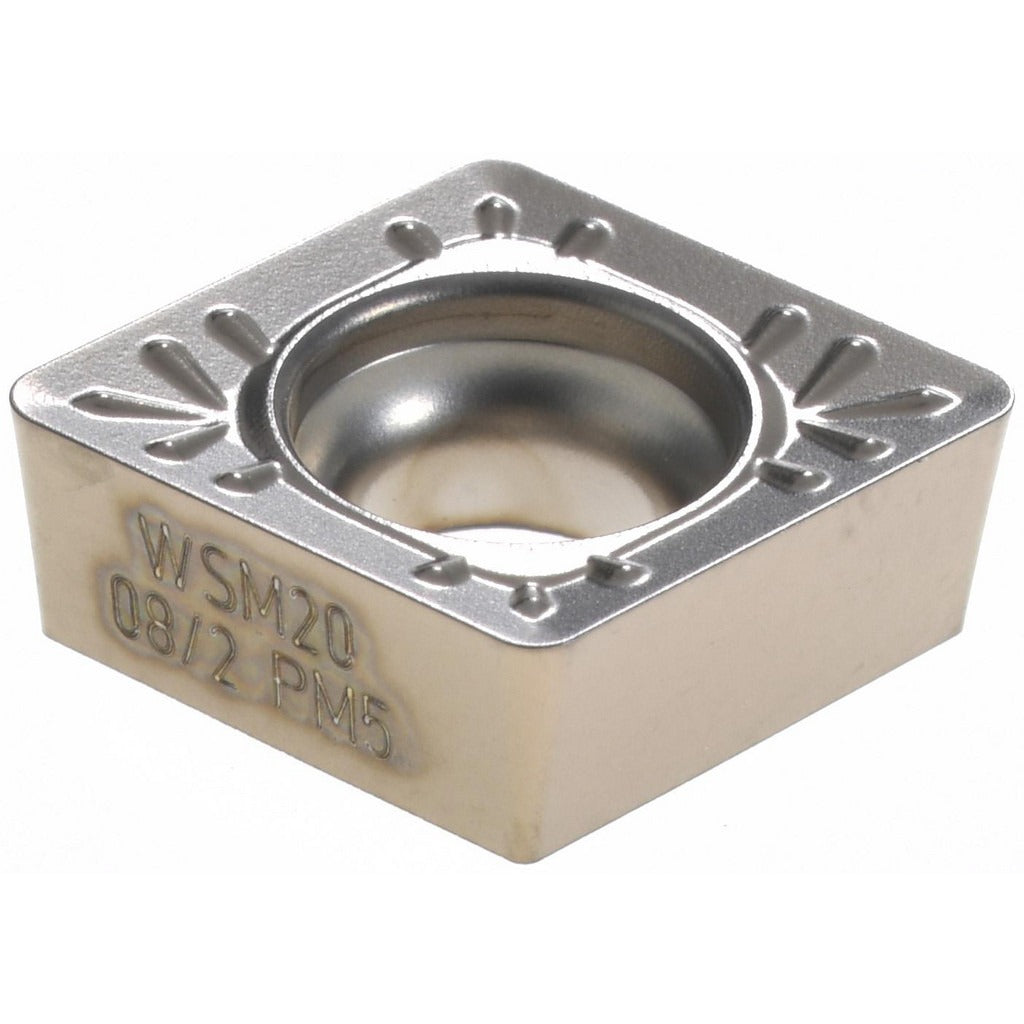

The WALTER 5614916 is a solid carbide turning insert in the CCMT-PM5 series, designed for precision metal removal on CNC lathes and turning centers. It features an 80-degree diamond (rhombic) insert shape with a 3/8 inch (0.375 inch) inscribed circle, a 1/32 inch (0.0315 inch) corner radius, and a multilayer PVD coating of TiAlN, Al2O3, and ZrCN. The PM5 chip breaker geometry supports roughing and medium machining operations. With 2 cutting edges, a positive rake angle of 12 degrees, and a 7-degree relief angle, this insert is engineered for productive metal removal rates while maintaining edge stability in demanding applications.

This insert is suited for turning, facing, and boring operations in ISO material groups M (stainless steel) and S (superalloys and titanium) as primary workpiece materials, with ISO group P (steel) as a secondary application. The CCMT format and screw-on holding method make it compatible with standard CCMT-style toolholders used across a wide range of production and job-shop turning setups. Material grades M20, P20, and S20 indicate suitability for moderate to demanding cutting conditions. A licensed machinist or CNC tooling technician typically specifies and installs this insert.

Key Features

• Solid carbide substrate with multilayer PVD coating: TiAlN, Al2O3, and ZrCN for extended tool life in stainless steel and superalloys
• 80-degree diamond insert shape with positive rake and positive side clearance for reduced cutting forces
• PM5 chip breaker geometry rated for roughing and medium machining
• 2 cutting edges per insert; neutral hand for flexible toolholder mounting
• Honed cutting edge style for improved edge toughness and thermal stability
• Screw-mount insert holding method for secure, repeatable seating in the pocket

Compatibility

Designed for use in standard CCMT-style turning toolholders per ANSI and ISO specifications. ANSI insert code CCMT32.52; ISO insert code CCMT09T308. Suitable for toolholders accepting a 3/8 inch inscribed circle CCMT insert with a 0.173 inch hole diameter.
