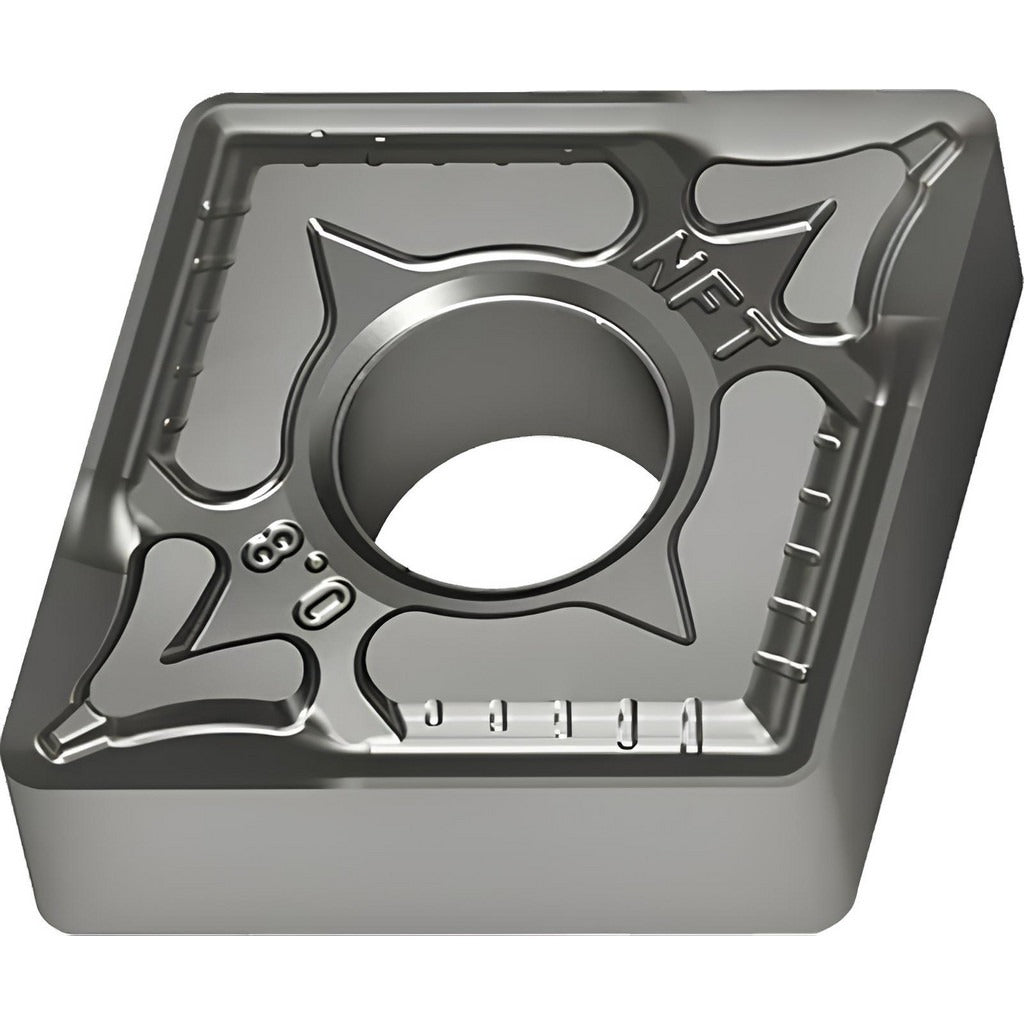

Walter 5592245 Turning Insert CNGG432-NFTWS10 Carbide

Product Description

The WALTER 5592245 is a solid carbide, uncoated turning insert in the CNGG432-NFT WS10 geometry, designed for precision metal cutting operations on superalloys and titanium workpieces. Manufactured to ANSI and ISO standards, this insert carries the ISO designation CNGG120408-NFT WS10 and features an 80-degree diamond shape with a neutral hand orientation and a sharp cutting edge style. The WS10 material grade and NFT chip breaker geometry make it well-suited for demanding cuts where edge integrity and thermal resistance are critical. Licensed machinists and CNC operators working in aerospace, power generation, and high-performance manufacturing environments are the primary installers and users of this insert.

This insert is engineered primarily for turning, facing, and boring operations on superalloys and titanium, designated primary workpiece material code S. The CNGG-NFT series targets applications where tight tolerances and consistent surface finish on difficult-to-machine materials are required. With four available cutting edges and compatibility with clamp and pin holding methods, the 5592245 suits both high-production and precision job-shop environments where tool changes must be efficient and repeatable. The secondary workpiece material code is N, indicating suitability for a broader range of general turning applications as well.

Key Features

• Solid carbide construction, bright/uncoated finish for sharp edge retention on superalloys and titanium
• 80-degree diamond insert shape (shape code C) with negative rake angle of 12 degrees for stable, controlled cuts
• NFT chip breaker geometry optimized for superalloy and titanium turning, facing, and boring
• Four usable cutting edges per insert for extended tool life per unit
• Sharp cutting edge style with no wiper edge, supporting tight tolerance finishing passes
• Compliant with ANSI and ISO standards; ISO code CNGG120408-NFT WS10

Compatibility

Designed for use in toolholders and boring bars accepting CNGG-style inserts with a clamp or pin holding method. Verify toolholder pocket geometry against CNGG432 insert dimensions before installation. Confirm compatibility with your specific machine and holder system prior to ordering.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Always power down and lock out the machine spindle before changing inserts. Use the appropriate torque wrench and clamping screw recommended by the toolholder manufacturer - do not overtighten or substitute fasteners. Inspect the insert pocket and seating surface for chips or damage before seating the new insert, and index or replace the insert at the first sign of edge wear to maintain dimensional accuracy and prevent workpiece damage.
