Wal-rich 520004 Cast Iron No-hub Dandy Tee with Plug 3in

Product Description

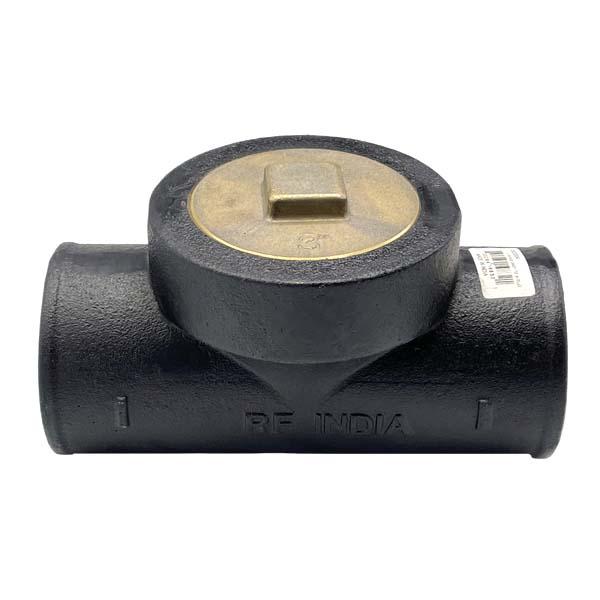

The WAL-RICH 520004 is a 3-inch cast iron no-hub dandy tee with plug, designed for use in drain, waste, and vent (DWV) piping systems. This fitting connects to no-hub cast iron pipe using standard no-hub couplings and provides a side-outlet branch with a removable plug for access or future connections. The dandy tee configuration suits cleanout, test, or branch applications in below-grade and above-grade drain systems. Licensed plumbers and pipefitters install this fitting as part of residential and commercial sanitary drainage assemblies.

This fitting is suited for sanitary drain, waste, and vent installations where a tee with a plugged outlet is required. Common applications include cleanout access points, test tees during rough-in inspection, and branch connections that are capped pending future use. The no-hub design allows integration into cast iron no-hub piping systems using standard no-hub band couplings, making it compatible with typical underground and in-wall DWV configurations.

Key Features

• 3-inch no-hub cast iron construction for durable DWV service
• Dandy tee configuration provides a side outlet for cleanout, test, or branch access
• Removable plug seals the side outlet when not in use
• No-hub ends connect using standard no-hub couplings without hub-and-spigot joints
• Suitable for both above-grade and below-grade sanitary piping installations

Compatibility

Designed as an OEM-style fitting for 3-inch cast iron no-hub DWV piping systems using standard no-hub couplings per CISPI and ASTM specifications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and ensure the drain system is depressurized before cutting into existing pipe. No-hub couplings must be torqued using a calibrated torque wrench to the coupling manufacturer's specification. Do not use this fitting on pressurized supply lines.

Technical Specifications

• Material: Cast Iron
• Connection Type: No-Hub
• Pipe Size: 3 inches
• Fitting Type: Dandy Tee With Plug

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 520004
