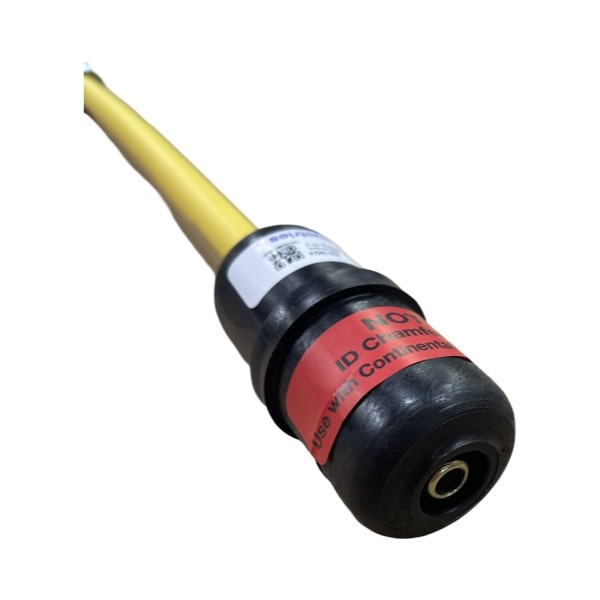

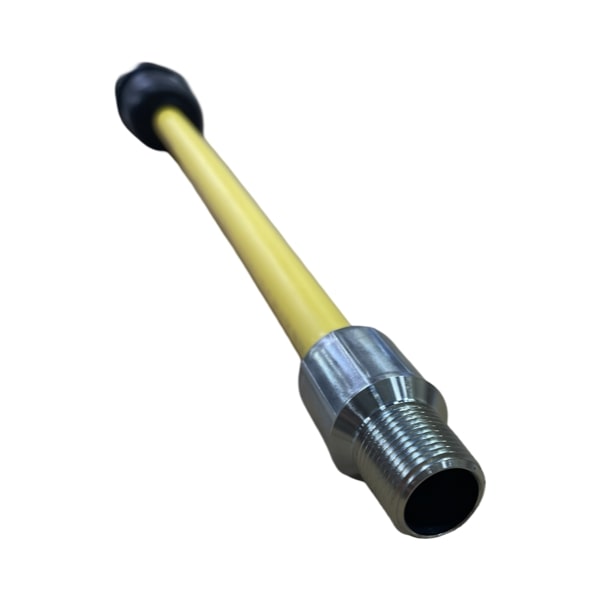

Wal-Rich 2885000 Con-Stab to MIP Adapter 5/8 in OD (1 Pack)

Product Description

Wal-Rich 2885000 is a Con-Stab to MIP adapter designed to connect 5/8 in outside diameter Con-Stab (1/2 in CTS) tubing to male iron pipe (MIP) threads. The adapter is constructed of polyethylene and zinc dichromate plated steel, has a .090 in wall thickness, and is rated to 125 psi for underground PE pipe (ASTM D 2513) applications.

• Size: 1/2 in CTS (5/8 in outside diameter); connection: Con-Stab (CTS) inlet to MIP male outlet
• .090 in wall thickness with 125 psi working pressure; UPC/CSA and MA code approvals
• Materials: PE2406 polyethylene and zinc dichromate plated steel; chamfer tool required for installation; intended for outdoor/underground PE pipe use

Product Highlights

1/2 in CTS (5/8 in OD) Con-Stab to MIP adapter; .090 in wall; 125 psi; UPC/CSA and MA code approved

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 2885000
• Country of Origin: United States

Technical Specifications

• Brand: WAL-RICH
• Manufacturer Part Number: 2885000
• Product Type: Con-Stab to MIP adapter
• Size: 1/2" CTS (5/8" OD)
• Connection Type: Con-Stab (CTS) inlet to MIP male outlet
• Wall Thickness: .090"
• Pressure Rating: 125 psi
• Materials: Polyethylene (PE2406) and zinc dichromate plated steel
• Application: For underground PE pipe (ASTM D 2513); outdoor/underground use only
• Temperature Range: -20°F to 140°F
• Approvals: UPC/CSA Approved; MA Code Approved
• Installation Note: Chamfer tool required; should be installed by a licensed gas fitter
• Quantity Per Package: 1
• UPC: 073028415138
• Prop 65 Warning: Cancer and Reproductive Harm
