Product Description

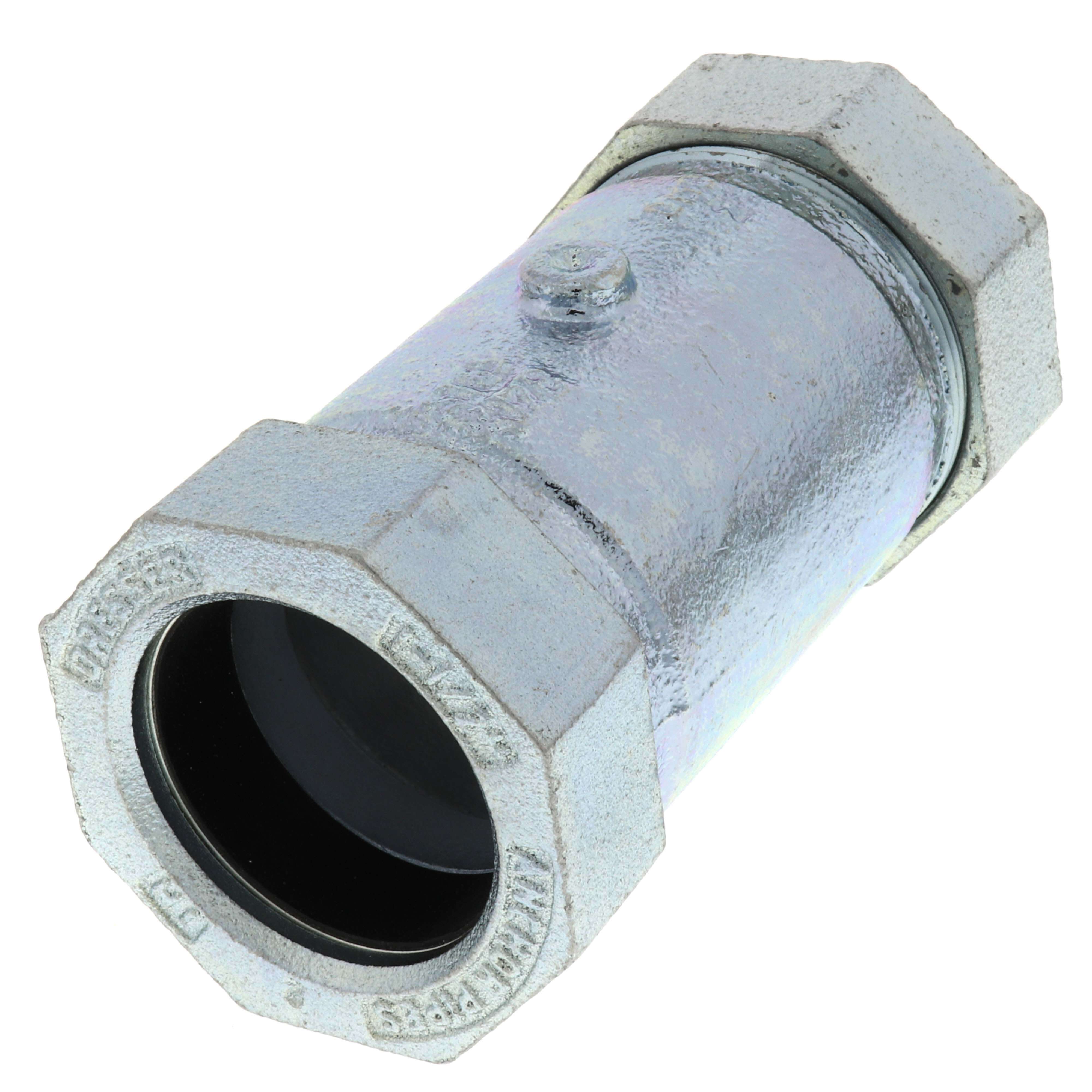

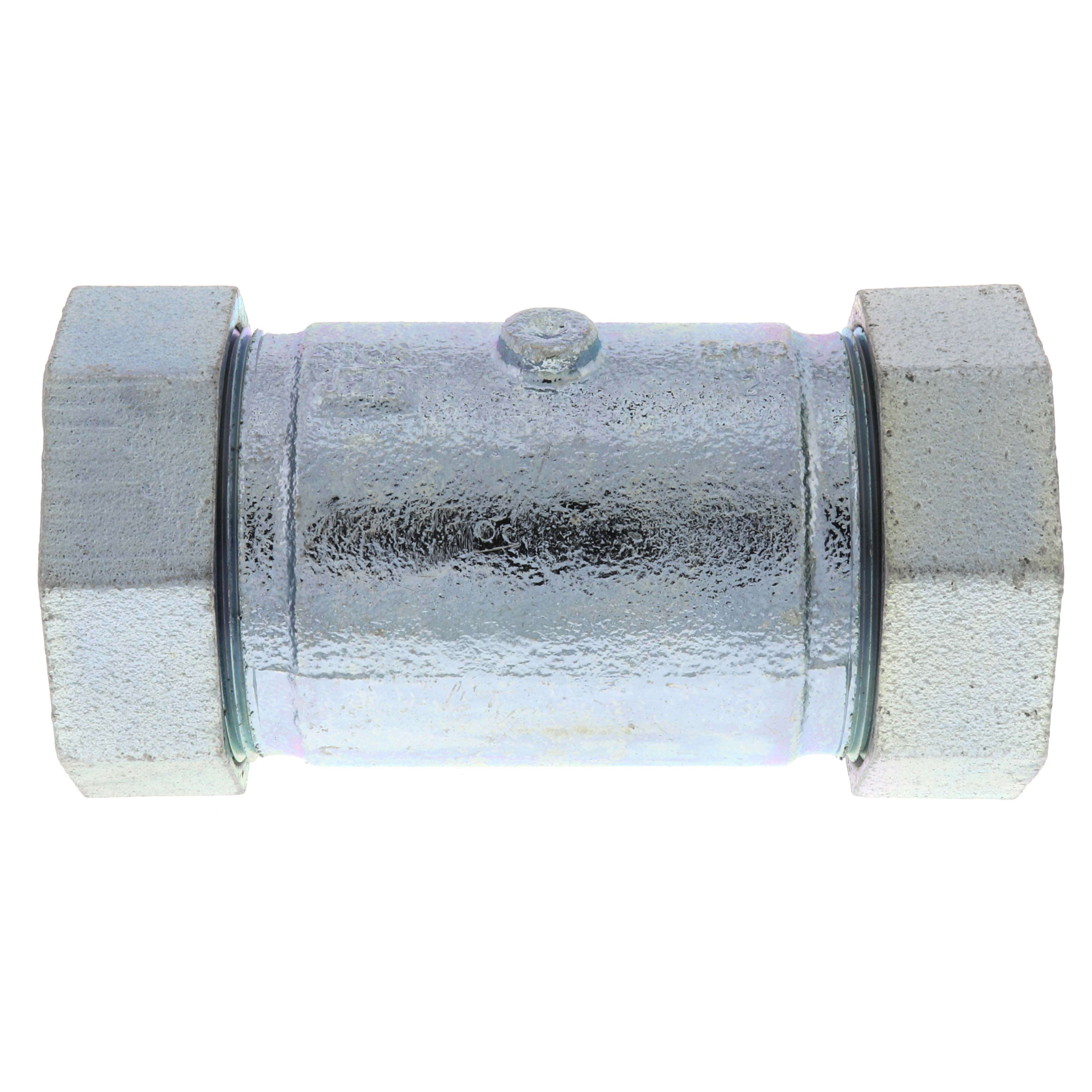

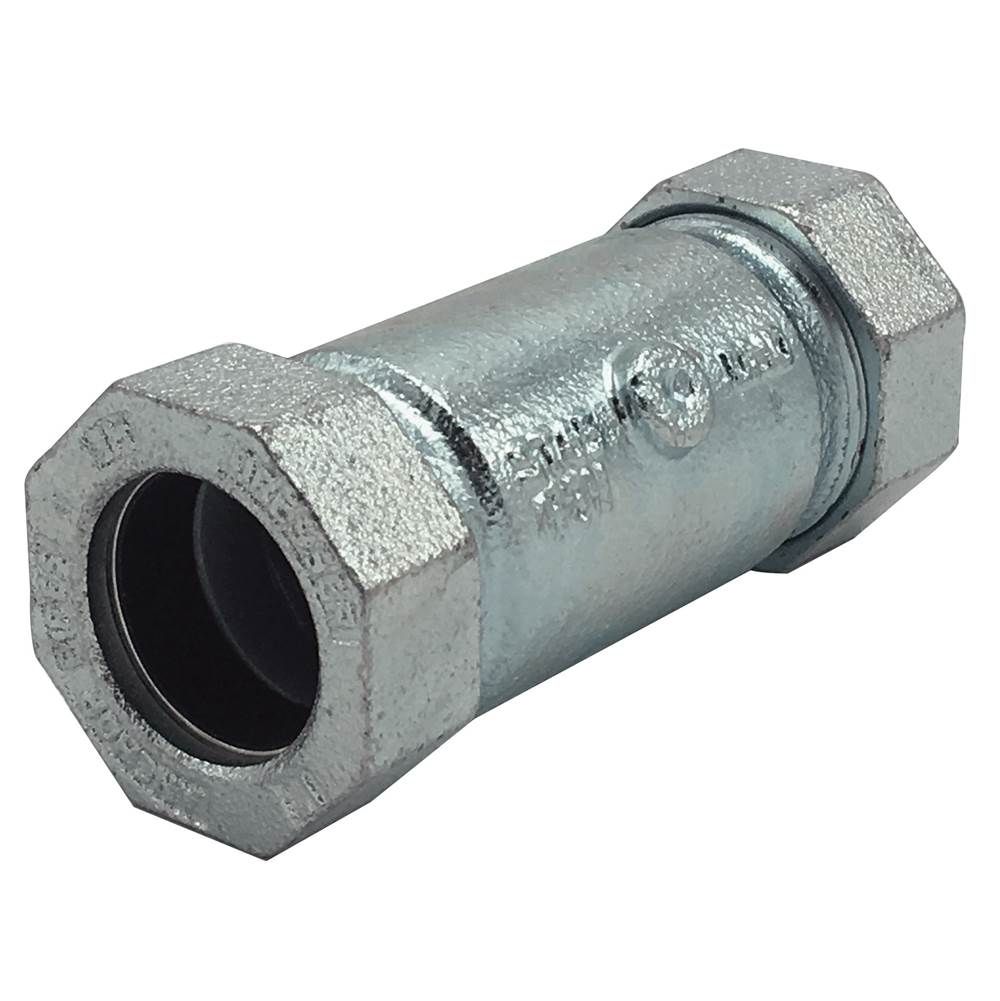

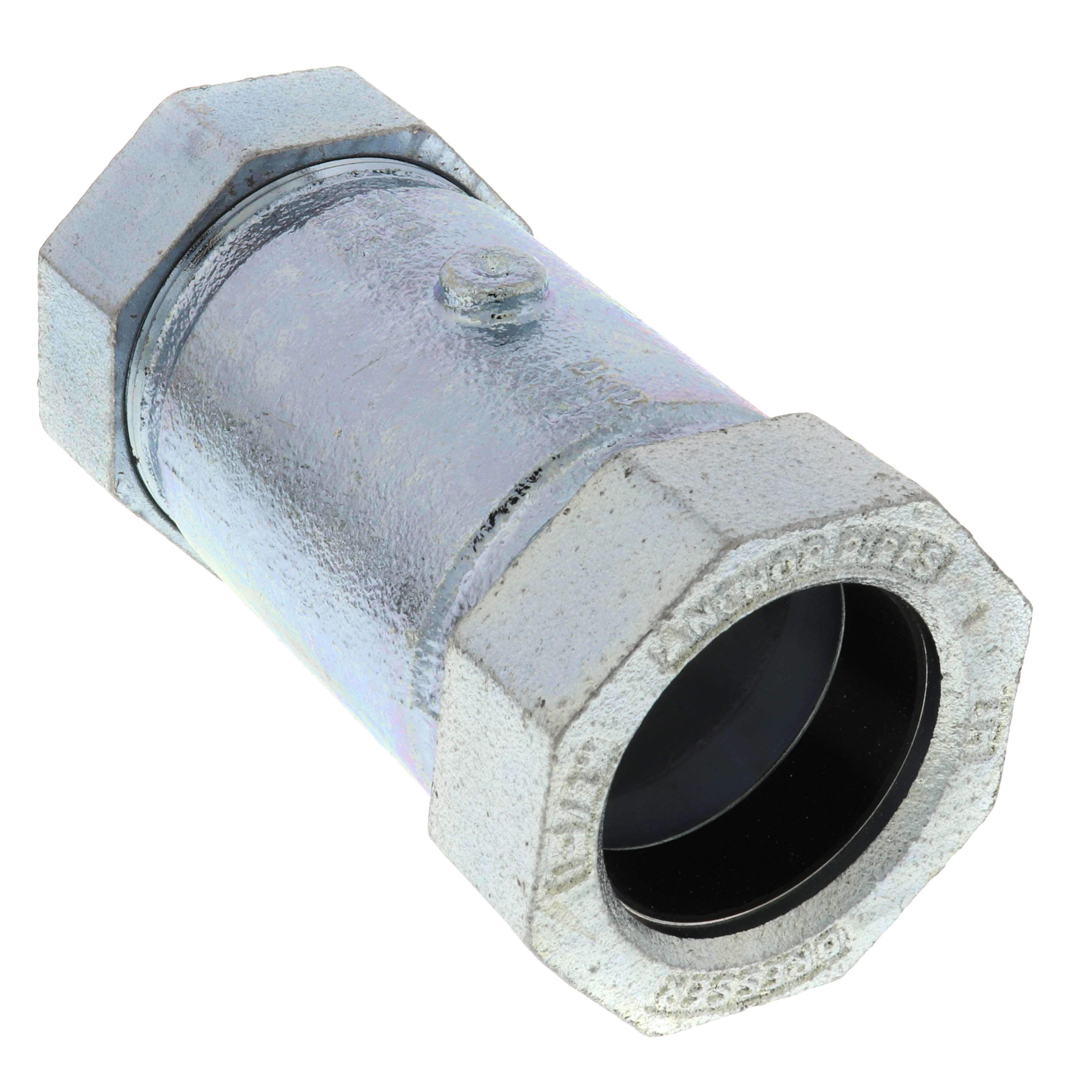

The WAL-RICH 2804010 coupling is a 1-1/2 inch IPS Style 65 galvanized dresser coupling designed for steel pipe, pipeline, and water service applications. This long-type compression fitting features an electro-galvanized finish and an armored Grade 27 gasket, rated for 150 PSI pressure and 150 degrees F temperature. It provides a secure compression x compression end connection and is made from malleable iron.
- Installs quickly onto plain-end pipe or tubing, eliminating the need for threading or flaring.
- Provides a flexible union, absorbing expansion, contraction, vibration, and deflection movements.
- Creates a uniform joint, maintaining consistent pipe wall thickness and strength.
Product Highlights
Durable electro-galvanized malleable iron coupling with armored Grade 27 gasket, ideal for water service and steel pipe applications.
Product Information
Standard Information
-
Brand: WAL-RICH
-
Manufacturer Part Number: 2804010
Technical Specifications
-
Application: Steel Pipe, Pipeline, Water Service
-
Brand: Wal-Rich
-
MPN: 2804010
-
UPC: 730284066248
-
Category: Plumbing & Bath / Kitchen Fixtures
-
End Connection: Compression x Compression
-
Finish: Electro-galvanized
-
Gasket Details: Armored Gasket
-
Gasket Supplied: Yes
-
Pressure Rating: 150 psi
-
Model: 65
-
Size: 1-1/2 inch IPS
-
Temperature Rating: 150 °F
-
Type: Long
-
UNSPSC Code: 40183107
-
Dresser Part Number: 0065-0034-003
-
Overall Length: 4 1/2 inches
-
Gasket Grade: Armored Grade 27
-
Material: Malleable Iron
-
Product Type: Dresser Coupling
