Wal-Rich 1719006 3 1/2 Compound Gauge

Product Description

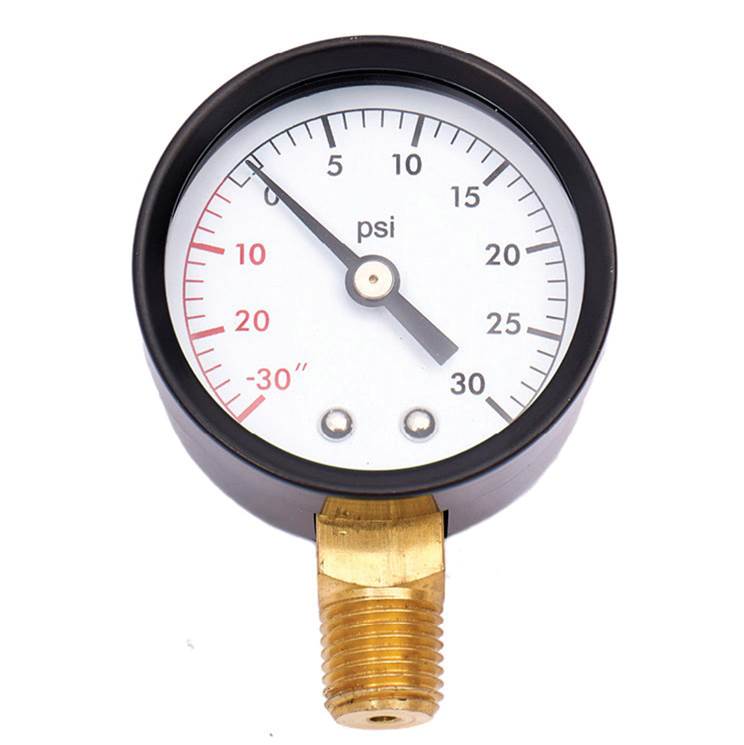

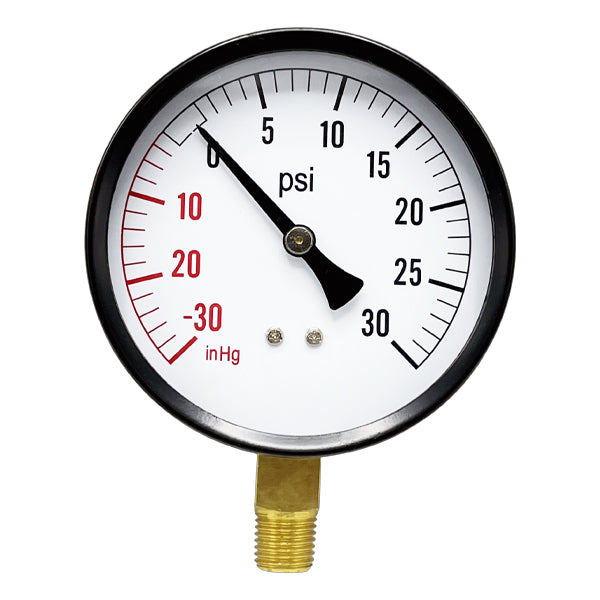

The WAL-RICH 1719006 Compound Gauge is a 3 1/2 inch Bourdon tube type instrument designed for measuring pressure. It features a range of 30" HG to 0 to +30 LBS, making it suitable for various applications. This gauge is equipped with a 1/4" NPT brass lower connection, ensuring secure installation. It is intended for use with water, oil, and gas, but not for oxygen systems.

• Range: 30' HG To 0 To + 30 LBS.
• 1/4' NPT Brass Lower Connection
• Uses: Water, Oil and Gas Not for Use on Oxygen

Product Highlights

A 3 1/2 inch compound gauge with a Bourdon tube mechanism, featuring a 1/4 inch NPT brass connection and a range of 30' HG to 0 to +30 LBS.

Product Information

Standard Information

• Brand: WAL-RICH
• Manufacturer Part Number: 1719006

Technical Specifications

• Brand: WAL-RICH
• MPN: 1719006
• Gauge Size: 3-1/2 inches
• Range: 30" HG To 0 To + 30 LBS.
• Connection Type: 1/4" NPT Brass Lower Connection
• Compatible Media: Water, Oil, Gas (Not for Use on Oxygen)
• Gauge Type: Bourdon Tube
• Increments: Below 0 - 2'HG/Above 0 - 1LB.
