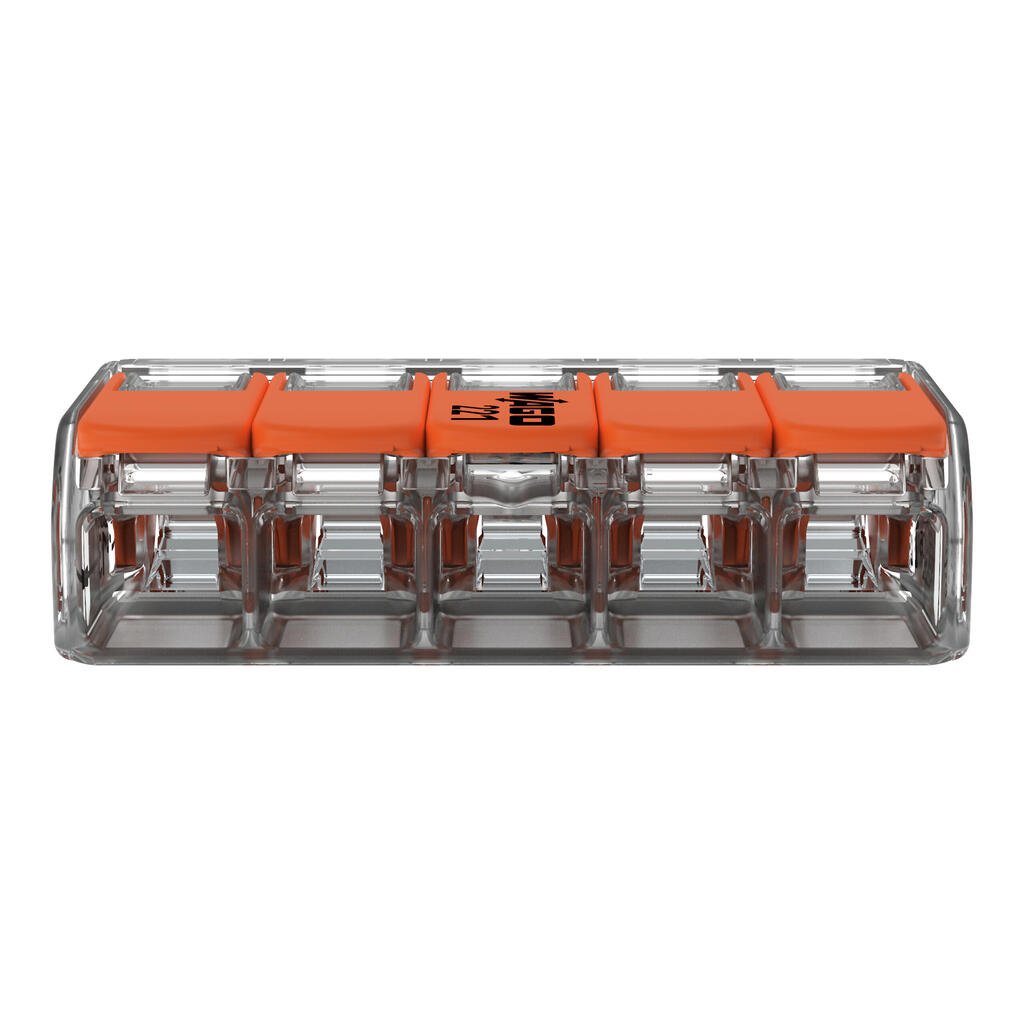

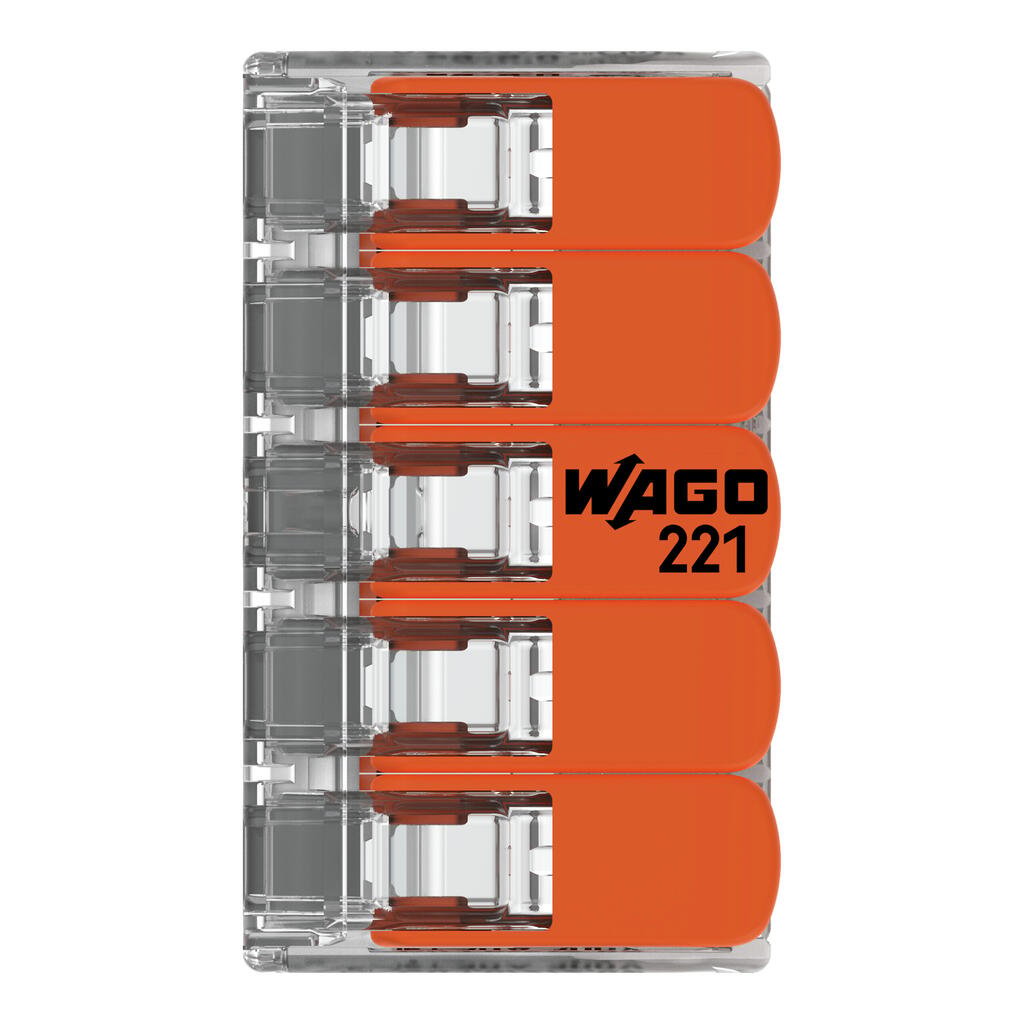

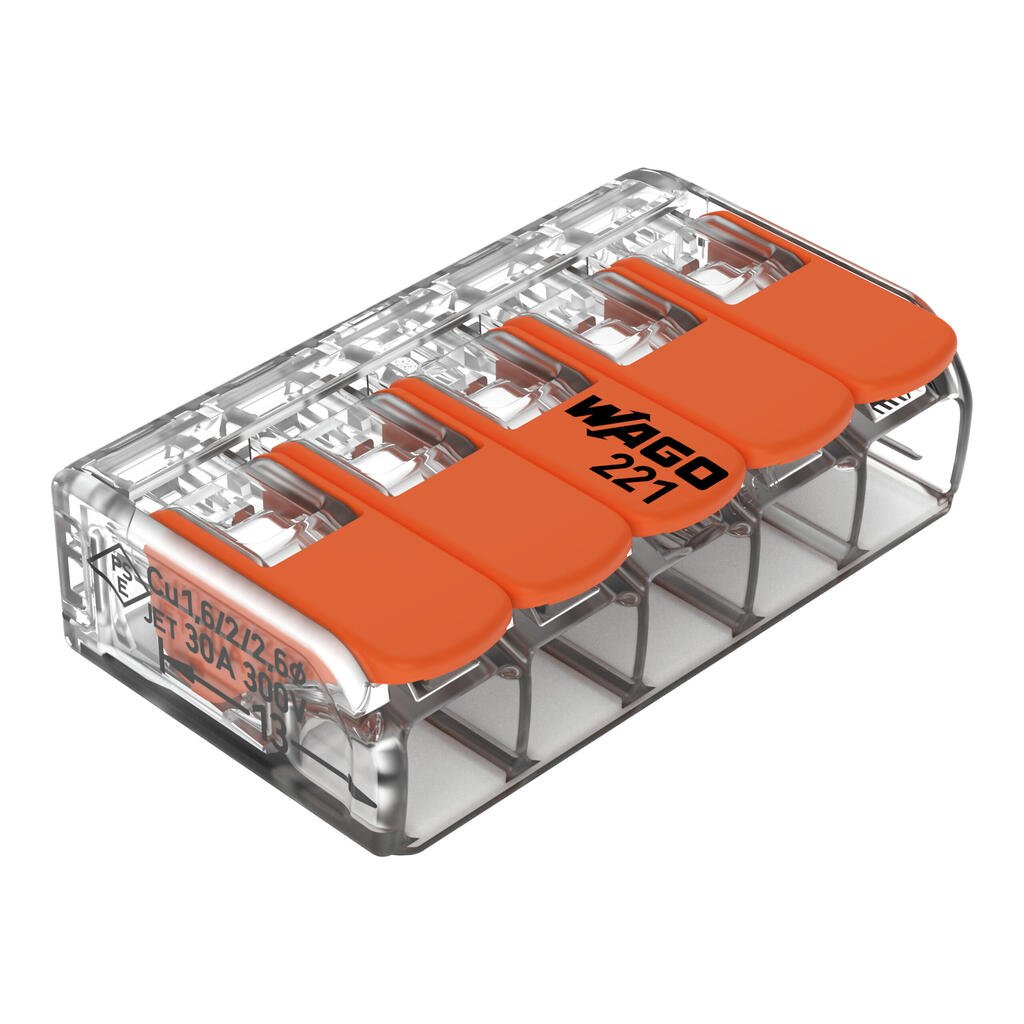

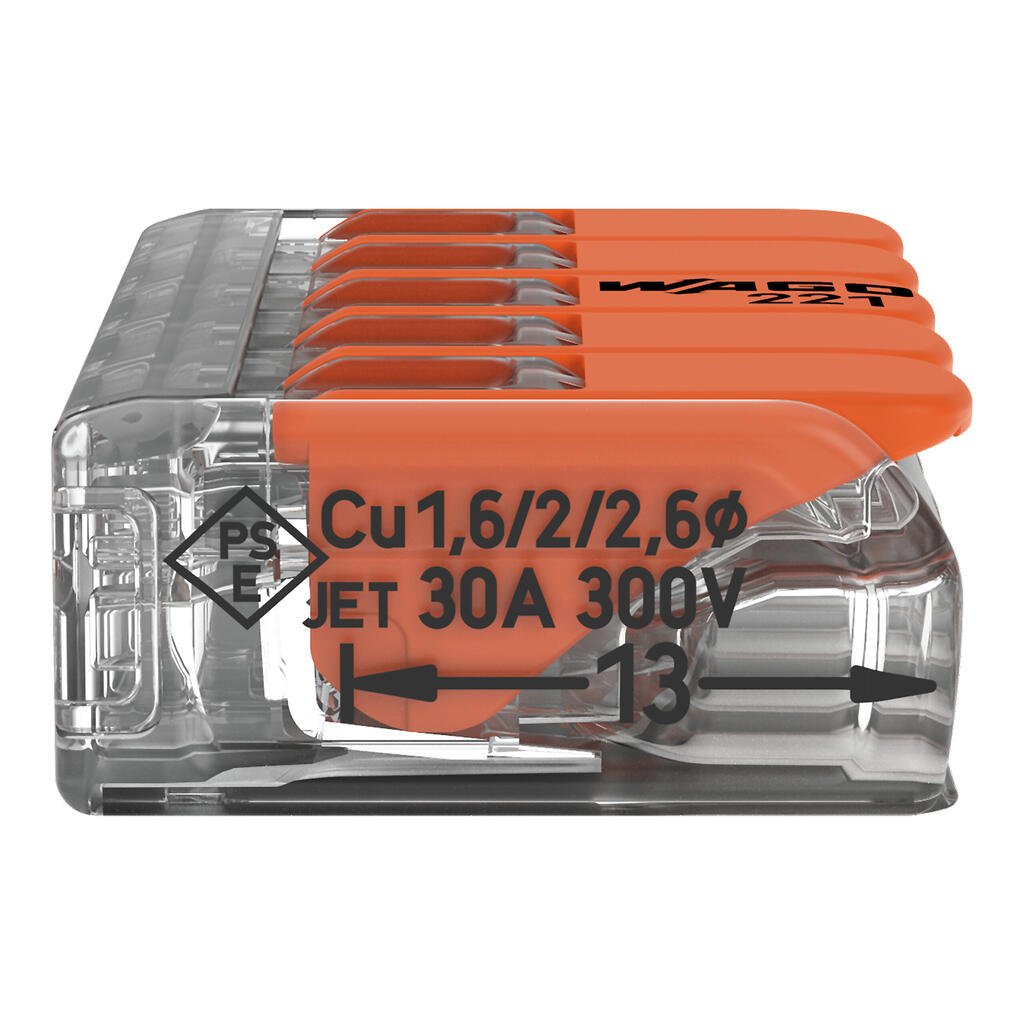

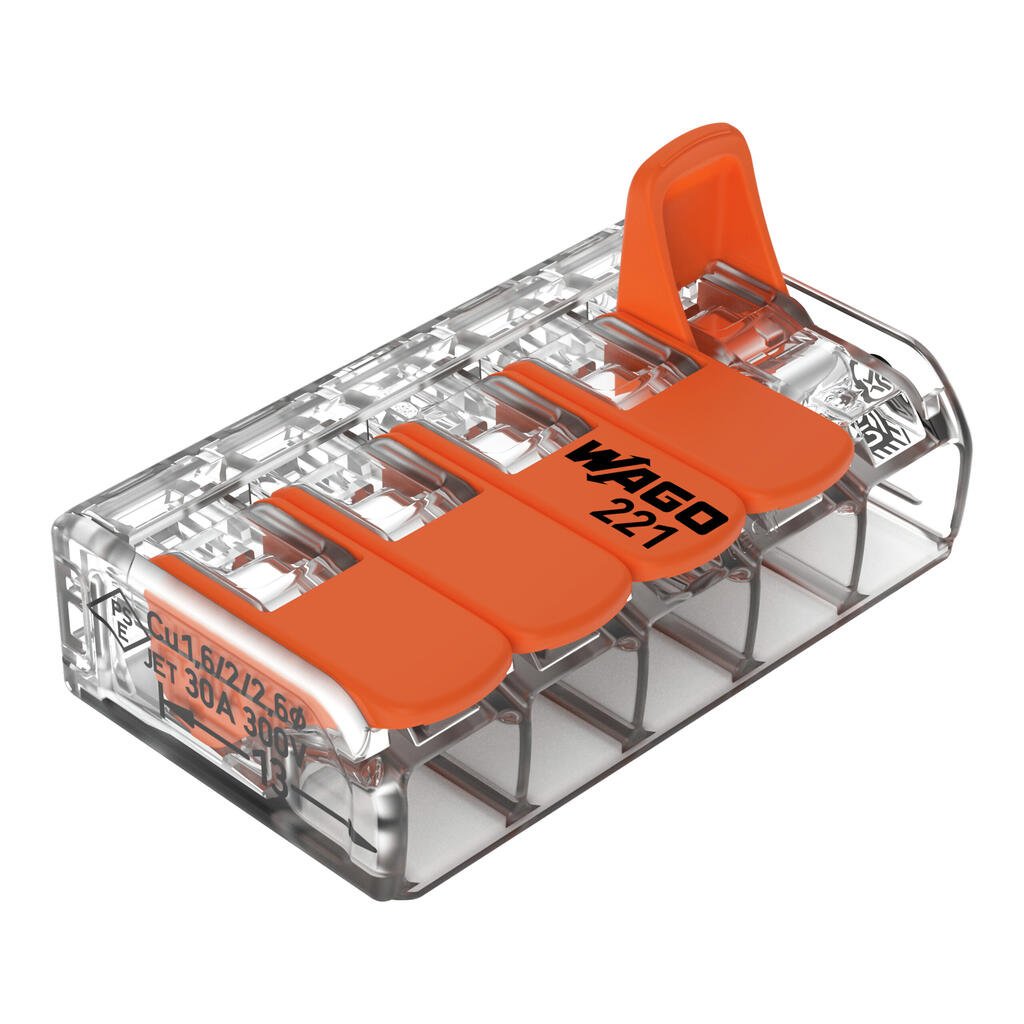

Wago Corporation 221-615 Compact Splicing Connector 10 AWG 5-Conductor 15 PK

Product Description

The WAGO CORPORATION 221-615 is a compact splicing connector with operating levers, designed for 5 conductors and 10 AWG wires. These connectors save time for installers and device manufacturers. They allow for the connection of solid, stranded and fine-stranded conductors. The mounting carrier for installation conforms to standards.

• Suitable for grounded power line applications
• Features CAGE Clamp connection technology
• Connectable with copper conductor materials

Product Highlights

This 5-conductor splicing connector features operating levers, accommodating 10 AWG wires with a transparent housing.

Product Information

Standard Information

• Brand: WAGO CORPORATION
• Manufacturer Part Number: 221-615

Technical Specifications

• Wire Size: 10 AWG
• Amperage Rating: 30 A
• Number of Poles: 5
• Voltage Rating: 600 VAC
• Series: 221 Series
• Wire Strip Length: 0.47 to 0.55 in
• Connection Type: CAGE Clamp
• Temperature Rating: 85 degrees C
• Dimensions: 1.445 in Width x 0.398 in Height x 0.831 in Depth
• Manufacturer: WAGO Corporation
• Brand: Wago
