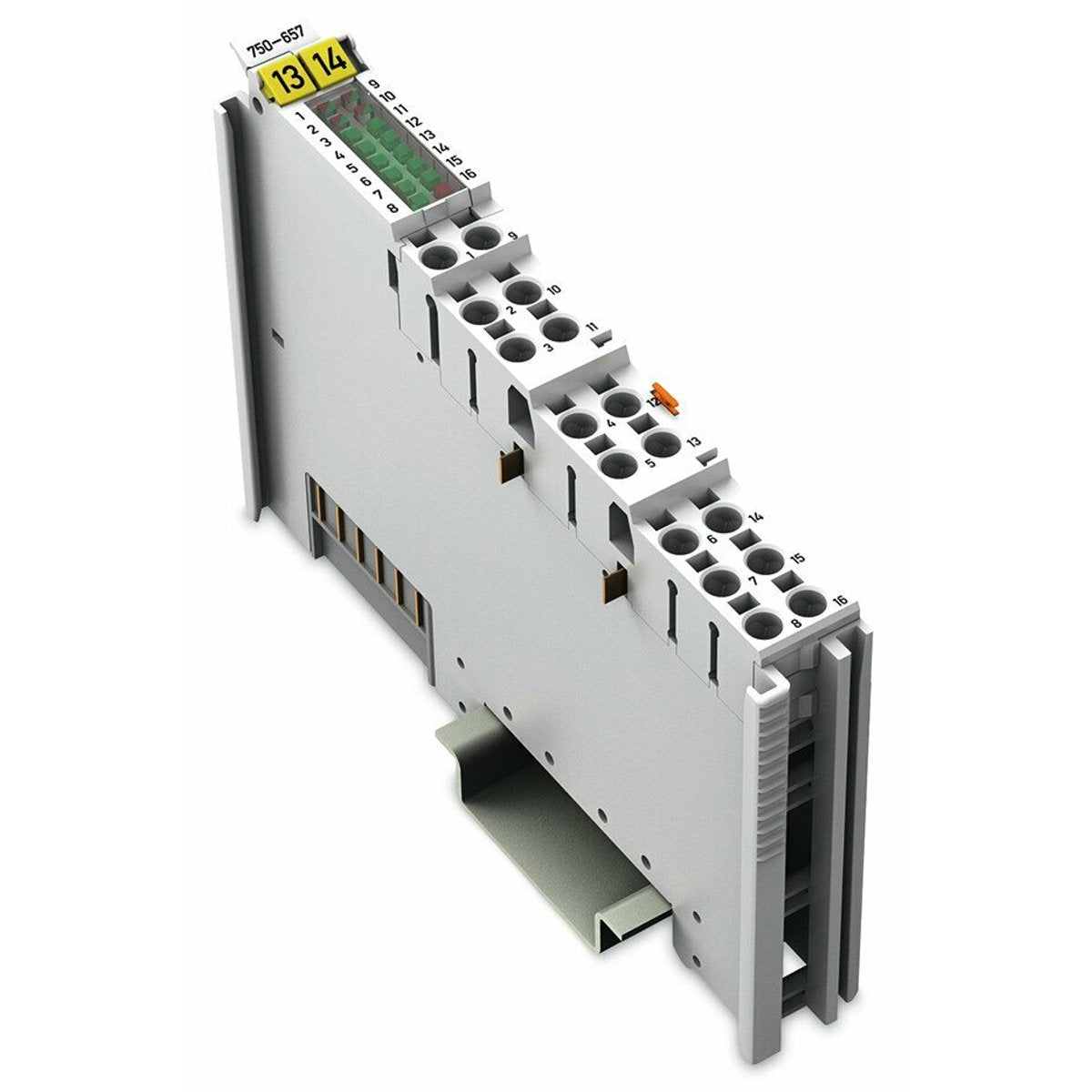

WAGO 750-657 Communications Module O-Link Master 4 x Ports Connection Capability

Product Description

The WAGO 750-657 communications module is designed for automation control. This unit features an O-Link master with the capability to connect up to four ports. It operates on a voltage of five volts direct current, supplied by the system. The device supports IO-Link communication and features push-in spring cage-clamp connections, making it suitable for efficient installation.

• Connects up to four ports
• Supports speeds of 4.8 to 230.4 kilobits per second
• DIN rail mounting compatible, measuring twelve millimeters in width

Product Highlights

The WAGO 750-657 is ideal for integration into industrial automation systems, providing reliable communication capabilities over a range of speeds. The IP20 rating and operational temperature range from zero to fifty-five degrees Celsius allow for versatile use in various environments.

Product Information

Standard Information

• Catalog Number: 750-657
• Manufacturer: WAGO

Technical Specifications

• Connection Type: Terminals (Cage-clamp)
• Speed: 4.8-230.4 kbit/s
• Dimensions: H100mm x W12mm x D69mm
• Weight: 49.551 grams
• Conductor Range: 16-28 AWG
• Mounting: DIN Rail
• RoHS Compliance: Yes
• Country of Origin: Germany
