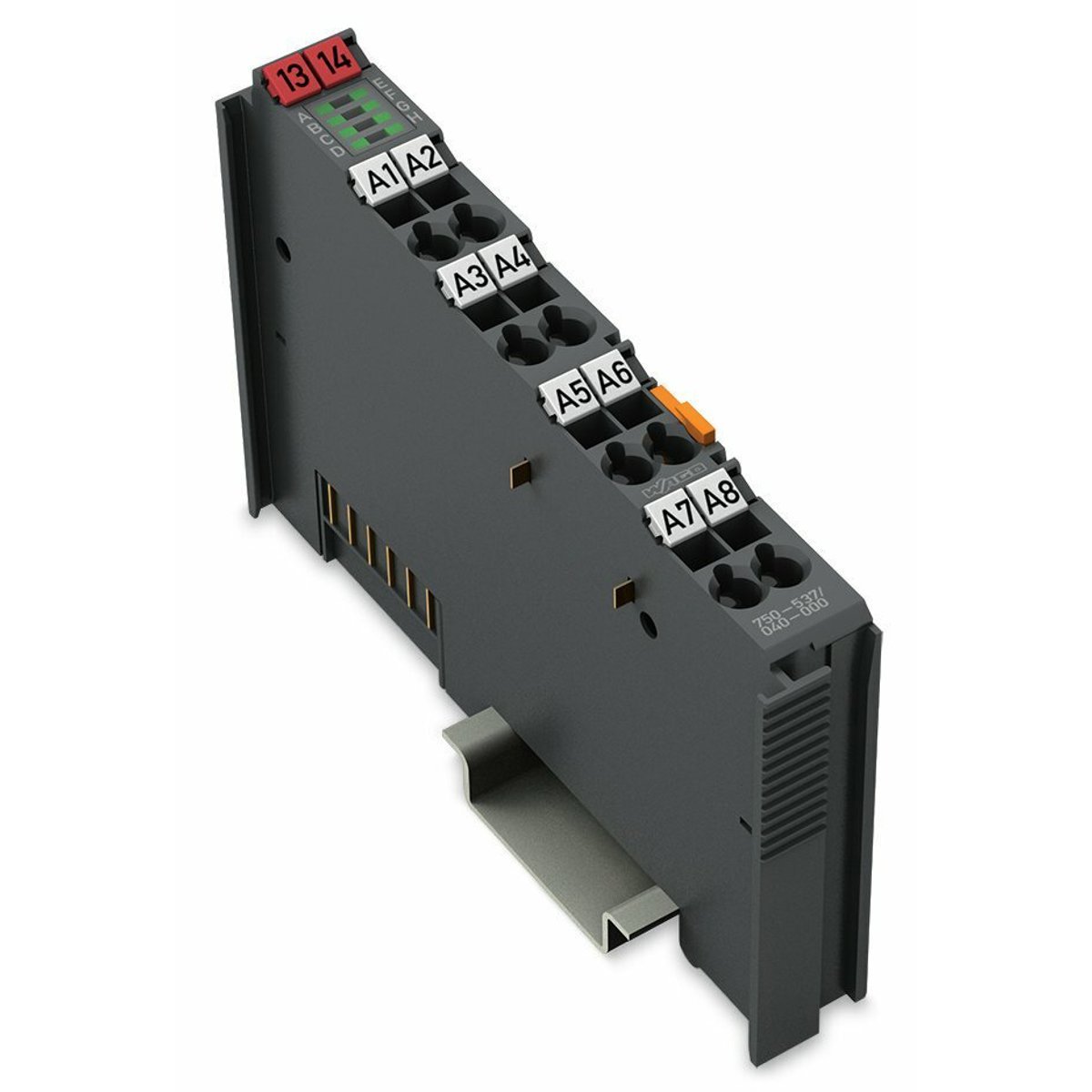

WAGO 750-537/040-000 Standard DC Digital Output Slice Module with Diagnostics and Extended Temperature Range

Product Description

The WAGO 750-537/040-000 is a standard DC digital output slice module designed to enhance control systems. It operates at twenty-four volts DC with a maximum output current of five hundred milliamps per channel. This module features diagnostics capabilities and is rated for extended temperature ranges, making it suitable for various industrial applications.

• Eight digital outputs with high-side switching
• Compact design for DIN rail mounting
• LED indicators for status and diagnostics

Product Highlights

This module provides reliable performance for industrial automation systems. It features easy installation on DIN rails and supports terminal connections for various conductor sizes. Its extended ambient temperature range allows for operation in challenging environments.

Product Information

Standard Information

• Catalog Number: 750-537/040-000
• Manufacturer: WAGO

Technical Specifications

• Item Type: I/O unit
• Mounting: DIN Rail
• Conductor Range: 14-24 AWG
• Connection: Terminals (Cage-clamp)
• Dimensions: H100mm x W12mm x D67.8mm
• Weight: 50.2 grams
• Country of Origin: Germany
• RoHS Indicator: Yes
