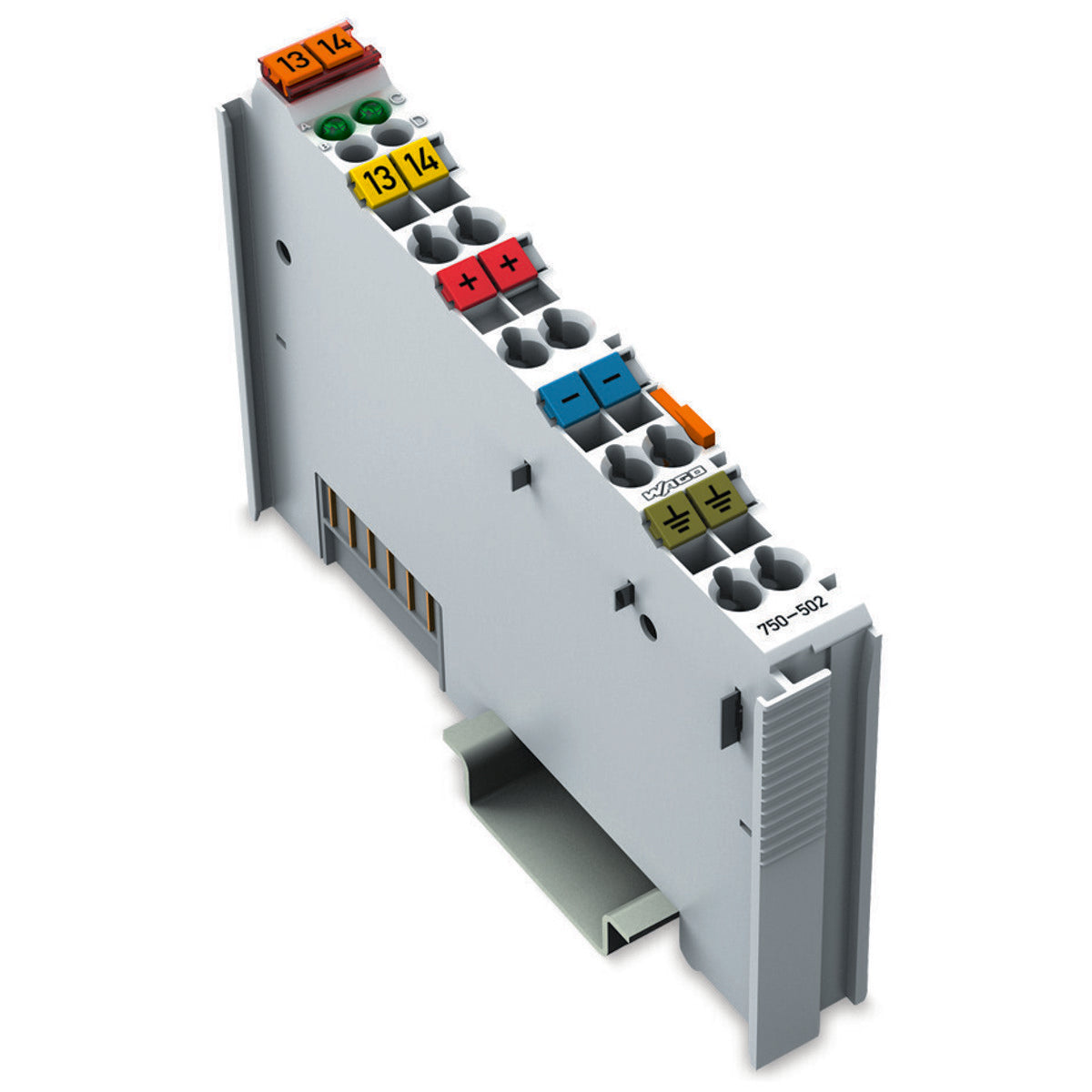

WAGO 750-502 2CH OUT 24VDC 2.0A

Product Description

The WAGO Corporation offers the model 750-502, a standard DC digital output slice module designed for industrial communication and control. This module features a dual channel output with a voltage rating of twenty-four volts DC and a maximum current of two amperes.

• Type: I/O Device
• Channels: 2
• Operation: High-side Switching

Product Highlights

The WAGO 750-502 module is essential for controlling digital outputs in complex automation systems. Its ability to connect with 2-wire, 3-wire, and 4-wire configurations makes it versatile for various applications. The module has terminals utilizing cage-clamp connections, allowing quick and reliable wire attachments.

Product Information

Standard Information

• Catalog Number: 750-502
• Manufacturer: WAGO

Technical Specifications

• Type: I/O Device
• UNSPSC Code: 39121410
• Conductor Range: 14-28 AWG
• Dimensions: H100mm x W12mm x D69.8mm
• Weight: 47.151 grams
• Indication: LED (A, C) green: Status DO 1, DO 2
• Mounting: Din Rail
• Country of Origin: Germany
