Product Description

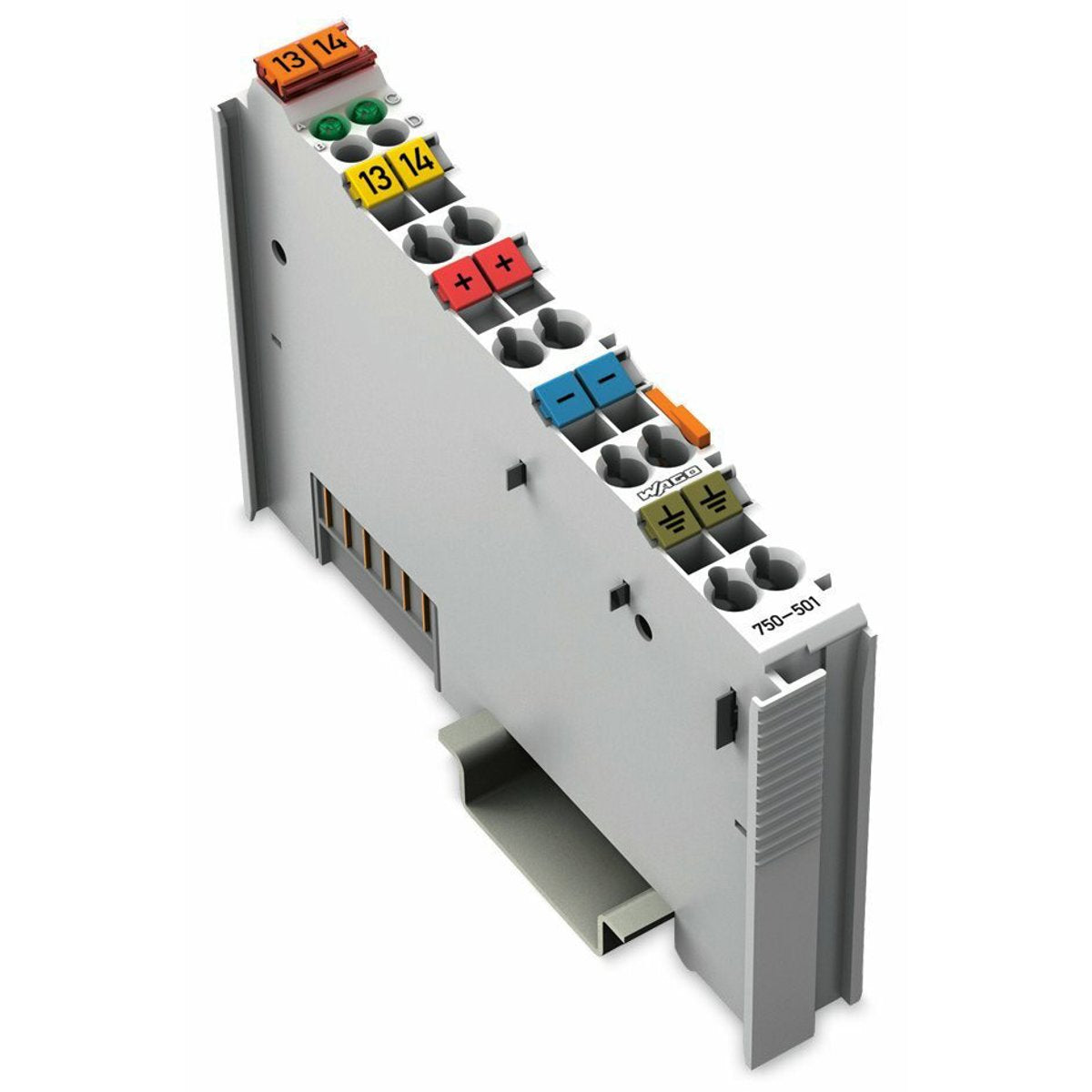

The WAGO 750-501 is a standard DC digital output slice module designed for I/O automation tasks. It operates at a voltage of twenty-four volts DC and supports a maximum load of five hundred milliamps. The module features two digital outputs configured for high-side switching. It is suitable for use in various industrial automation applications, enabling reliable control of devices.
- Two digital outputs, each rated for twenty-four volts DC
- DIN rail mounting, providing a compact installation
- Push-in spring cage-clamp connections for easy wiring
Product Highlights
This module is ideal for controlling actuators and sensors in automation systems. Its robust design allows for operation in ambient temperatures from zero degrees Celsius to fifty-five degrees Celsius.
Product Information
Standard Information
-
Manufacturer: WAGO
-
Country of Origin: Germany
Technical Specifications
-
Catalog Number: 750-501
-
Brand: WAGO
-
Connection Type: Terminals (Cage-clamp)
-
Conductor Range: 14-28 AWG
-
Mounting: DIN Rail
-
Dimensions: H100mm x W12mm x D69.8mm
-
Weight: 46.451 grams
-
RoHS Compliance: Yes
