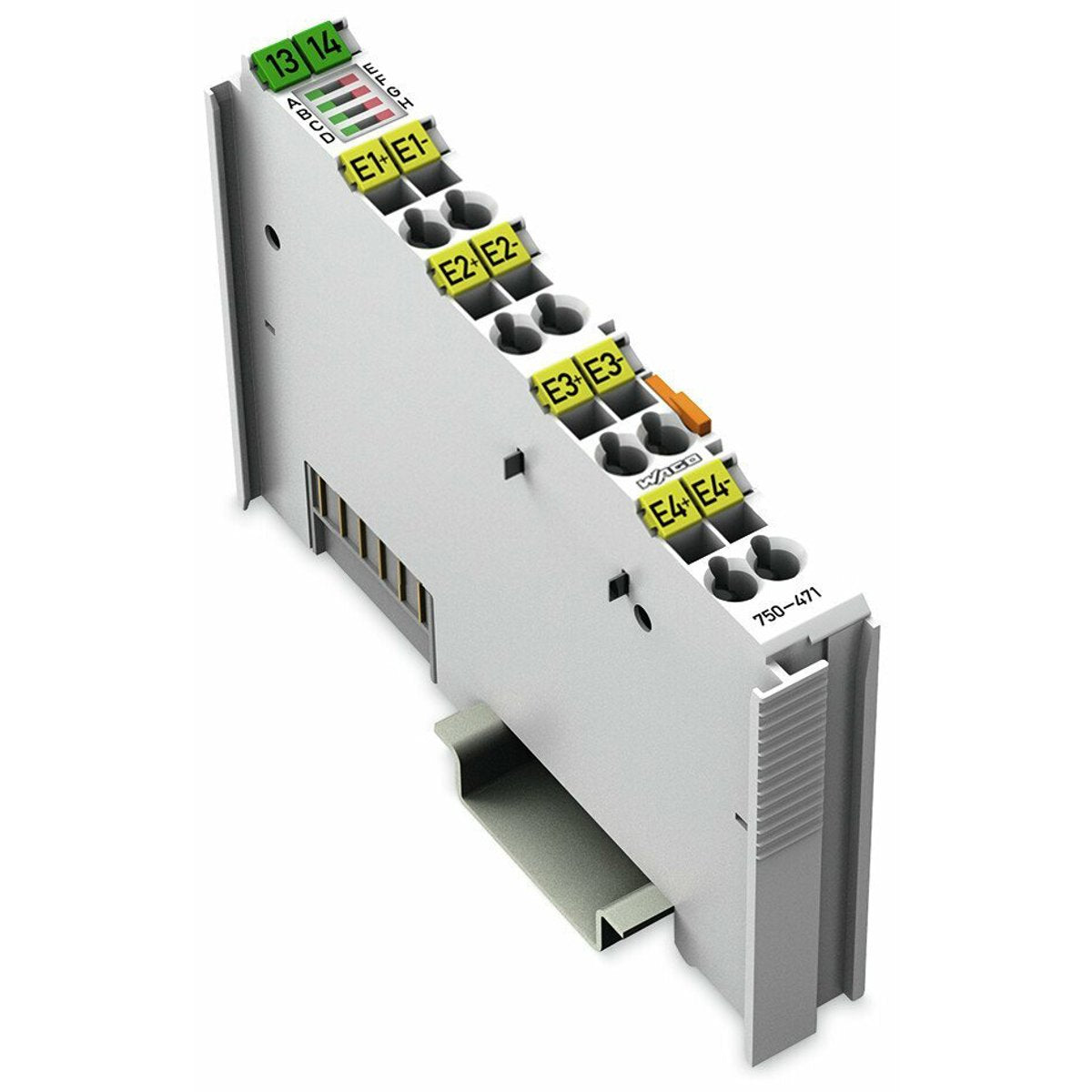

WAGO 750-471 Standard Analog Input Slice Module - 4AI; U/I; Diff; Galv - 4I/O

Product Description

The WAGO 750-471 is a standard analog input slice module. It supports various input types and is designed to function within the WAGO 750 series systems. This module accepts four analog inputs, including configurations for current and voltage signals. It operates with a supply voltage of five volts DC and uses push-in spring cage-clamp connections for easy installation.

• Four analog inputs, supports 0-20 mA, 4-20 mA, 0-10 VDC
• DIN rail mounting with IP20 protection
• Features a differential isolated design with 16-bit resolution

Product Highlights

The WAGO 750-471 module is ideal for industrial control applications requiring reliable signal processing. Its compact size and robust design make it suitable for various environments.

Product Information

Standard Information

• Manufacturer: WAGO
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 750-471
• Conductor Range: 14-28 AWG
• Connection: Terminals (Cage-clamp)
• Mounting: DIN Rail
• Dimensions: H100mm x W12mm x D69.8mm
• Weight: 51.199 grams
• Indicator: LED (A-D) green for AI 1-4, LED (E-H) red for errors
• RoHS Indicator: Yes
