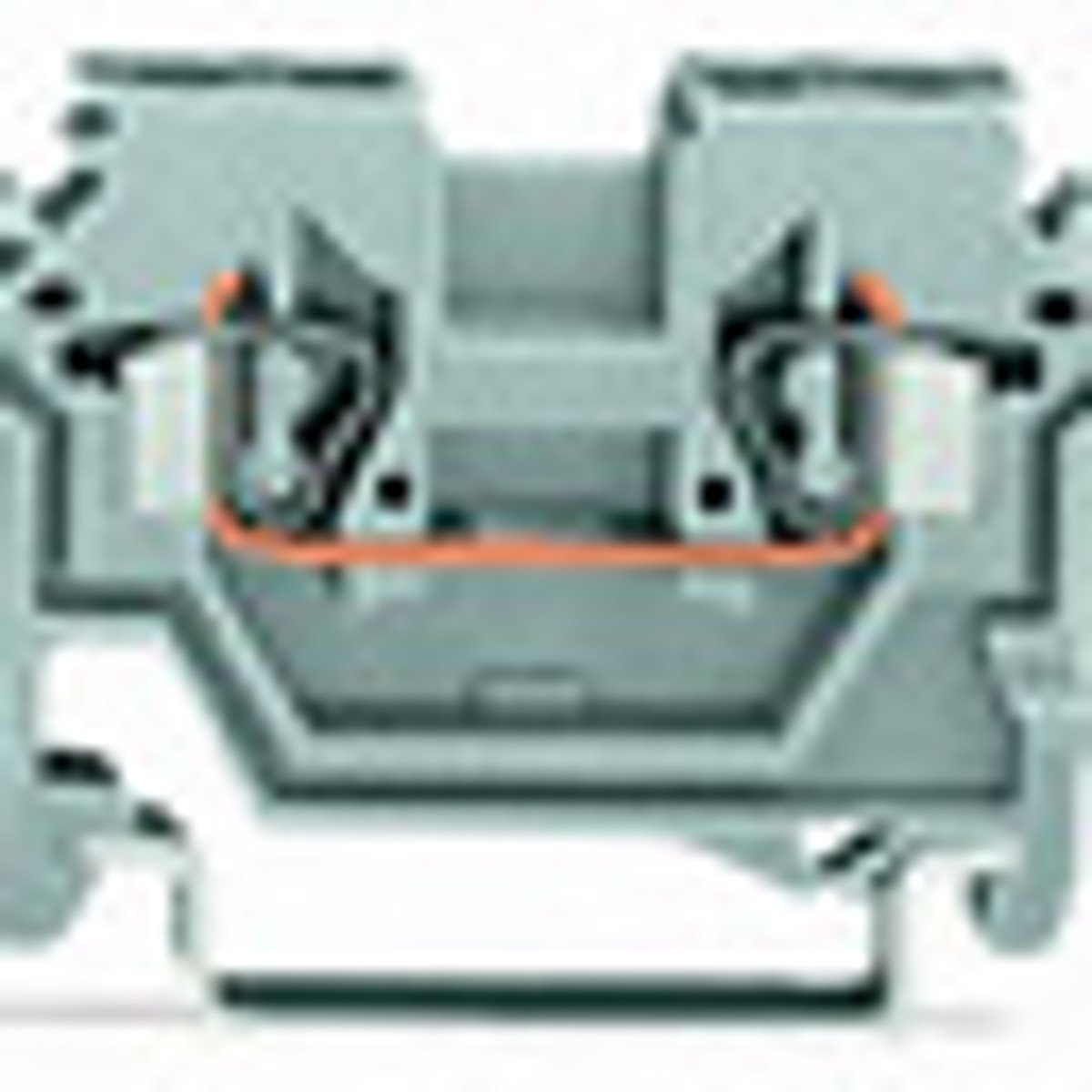

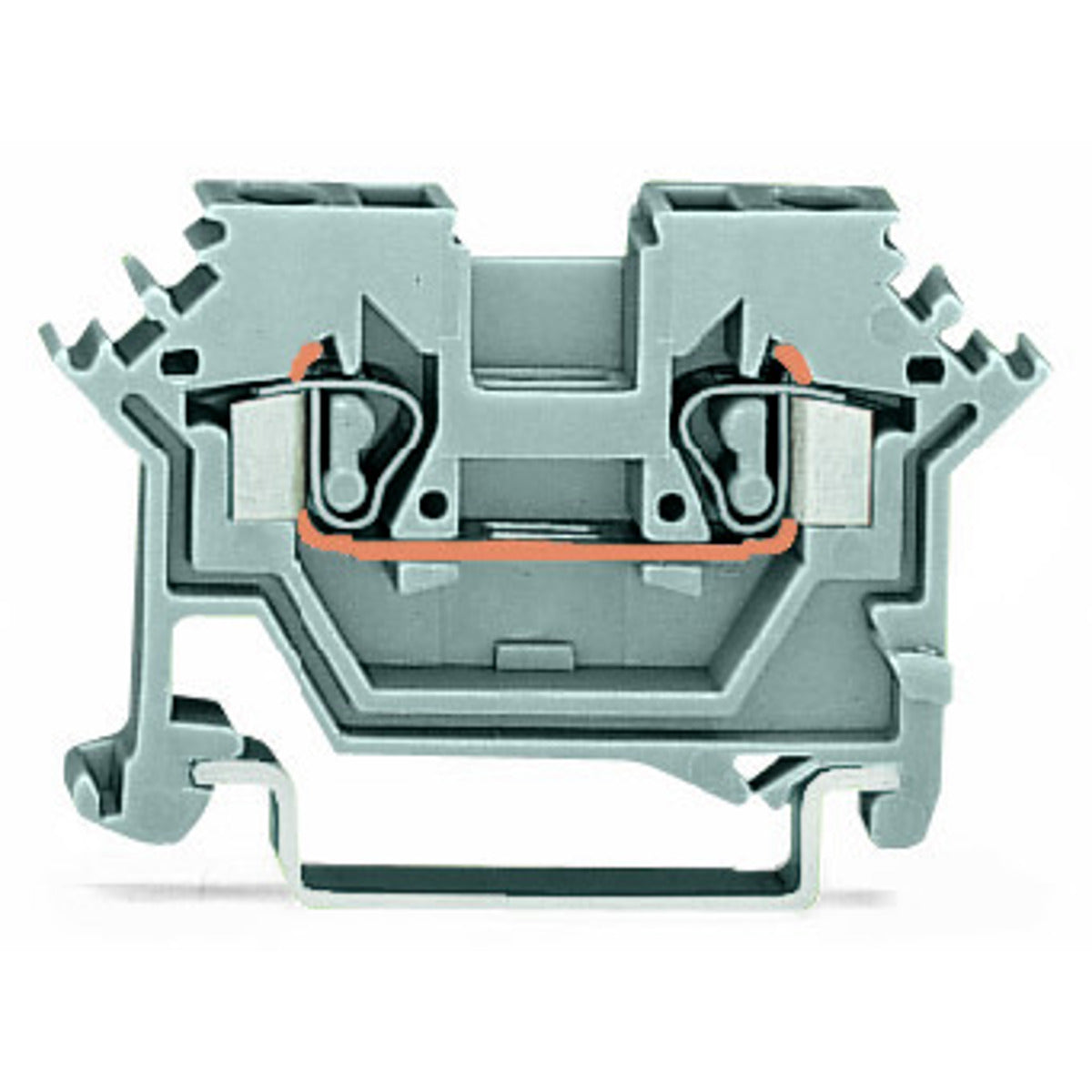

WAGO 280-601 2-Conductor Through Terminal Block Power Each

Product Description

The WAGO 280-601 is a 2-conductor through terminal block, designed for use in various industrial applications. This terminal block offers reliable connections and is suitable for up to 24 amperes of current. It features cage-clamp spring connections which ensure a secure hold on the conductors. The product is ideal for applications requiring solid and reliable electrical connections in constrained spaces.

• Rated current of 24A
• Designed for wire sizes from 0.08mm² to 2.5mm²
• IP20 rated for protection against solid objects greater than twelve millimeters

Product Highlights

The WAGO 280-601 is ideal for effective wiring solutions in automation systems. It provides easy installation onto DIN rails and features lateral marking slots.

Product Information

Standard Information

• Manufacturer: WAGO CORPORATION
• Part Number: 280-601

Technical Specifications

• Type: Terminal Block
• Rating: IP20
• Current Rating: 24A
• Conductor Range: 12-28 AWG
• Material: Polyamide (PA66)
• Mounting: DIN Rail
• Dimensions: H50mm x W5mm x D28mm
• Conductor Material: Copper
