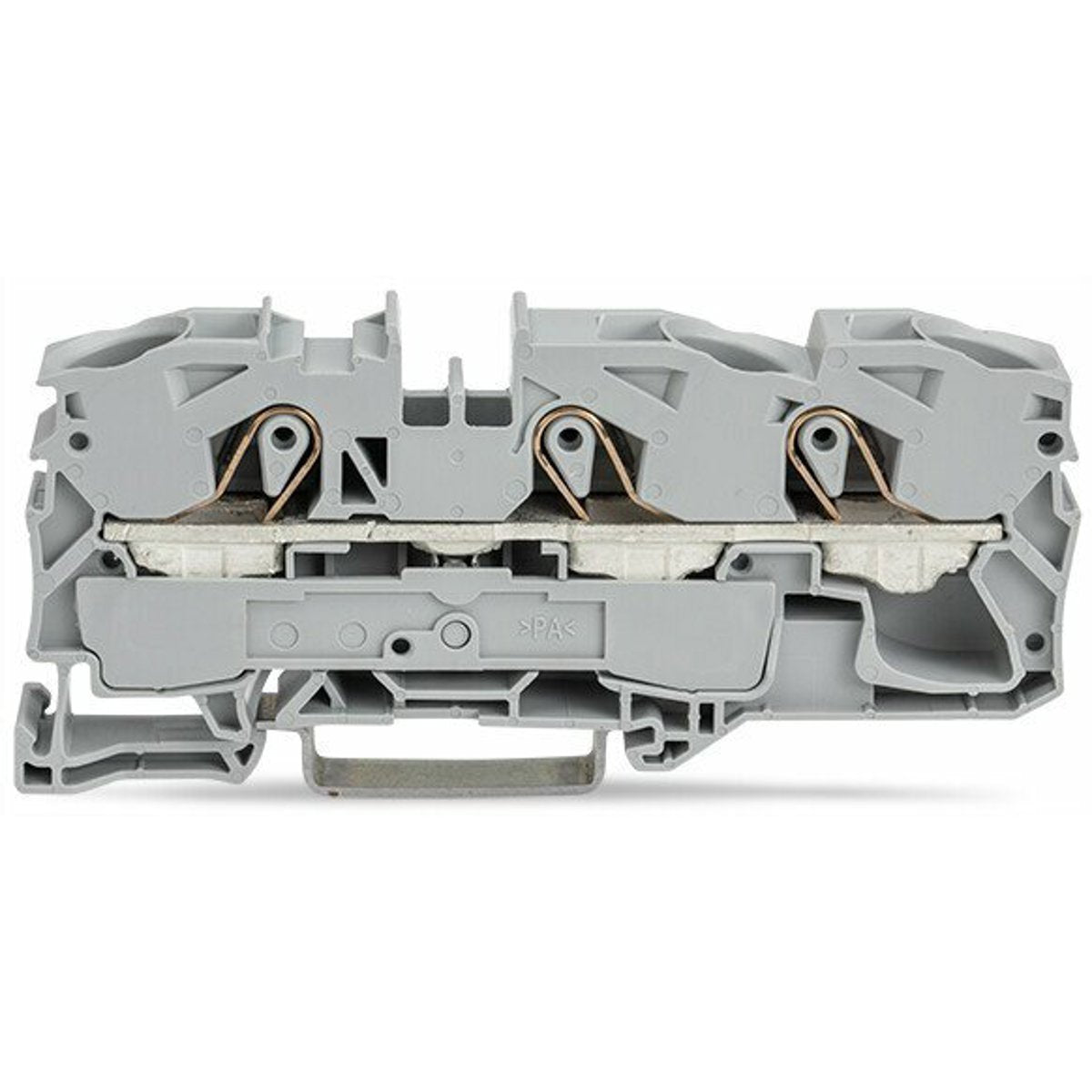

WAGO 2016-1305 Feed-through/thru terminal block with 1-deck/level + side and center marking slot - Suitable for Ex e II applications

Product Description

The WAGO 2016-1305 is a feed-through terminal block designed for Ex e II applications. It features a side and center marking slot. This terminal block accommodates one feed-through pole with three wires, offering one push-in and two push-in connections. It supports a nominal cross-section of 16mm², suitable for conductor sizes ranging from 0.5mm² to 25mm² (20AWG to 4AWG). The WAGO 2016-1305 is rated for a current of 76A and a voltage of 800V. Its push-in cage clamp spring connections ensure reliable operation.

• Designed for Ex e II applications
• Rated current of 76A, voltage rating of 800V
• Supports up to 25mm2 conductor size

Product Highlights

This terminal block is easy to install on DIN-35 rails. It is made from polyamide and has copper conductors.

Product Information

Standard Information

• Catalog Number: 2016-1305
• Manufacturer: WAGO

Technical Specifications

• Brand: WAGO
• Country of Origin: Germany
• Material: Polyamide (PA66)
• Conductor Material: Copper
• Current Rating: 76 A
• Voltage Rating: 800 V
• Conductor Range: 6-20 AWG
• Dimensions: Height 3.622 inches x Width 0.472 inches x Depth 1.453 inches
