Product Description

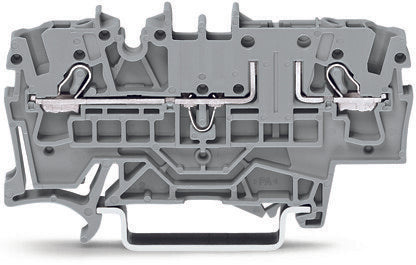

The WAGO 2002-1661 is a 2-conductor carrier terminal block designed for use in industrial applications. This terminal block offers reliable connections for various wiring needs. It supports a conductor range of twelve to twenty-two A.W.G and features push-in cage clamp connections. This terminal block is suitable for mounting on a DIN rail and can handle a rated current of sixteen amps.
- Conductor range of twelve to twenty-two A.W.G
- Rated current of sixteen amps
- Compatible with DIN rail mounting
Product Highlights
This terminal block ensures secure connections and is easy to install in industrial settings. The robust construction guarantees long-lasting performance.
Product Information
Standard Information
-
Manufacturer: WAGO
-
MPN: 2002-1661
Technical Specifications
-
Type: Terminal Block
-
UNSPSC Code: 39121410
-
Current Rating: 16 A
-
Voltage Rating: 400 V
-
Material: Polyamide (PA66)
-
Conductor Material: Copper
-
Nominal Cross Section: 2.5 mm²
-
Dimensions: H66.1 mm x W5.2 mm x D32.9 mm
