Product Description

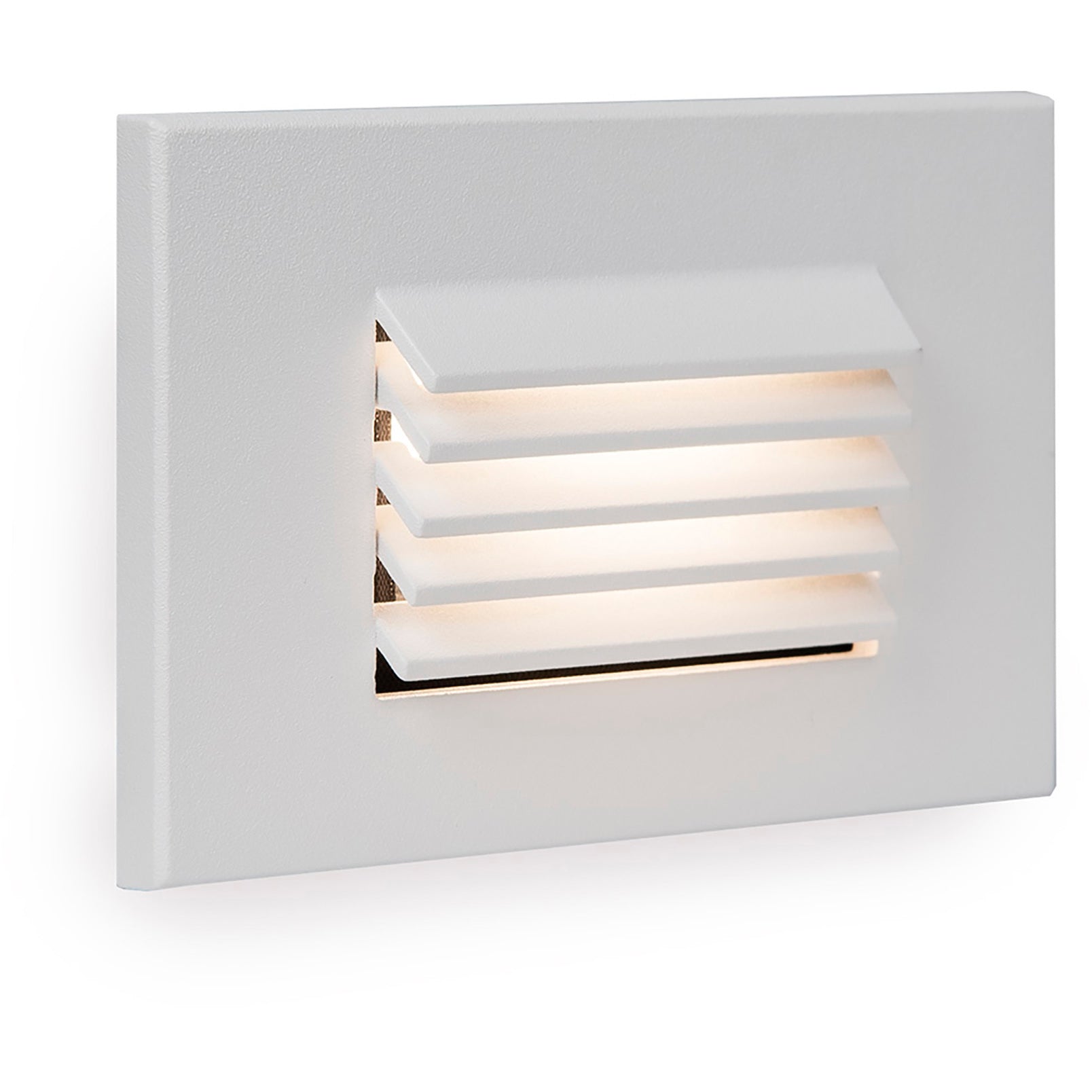

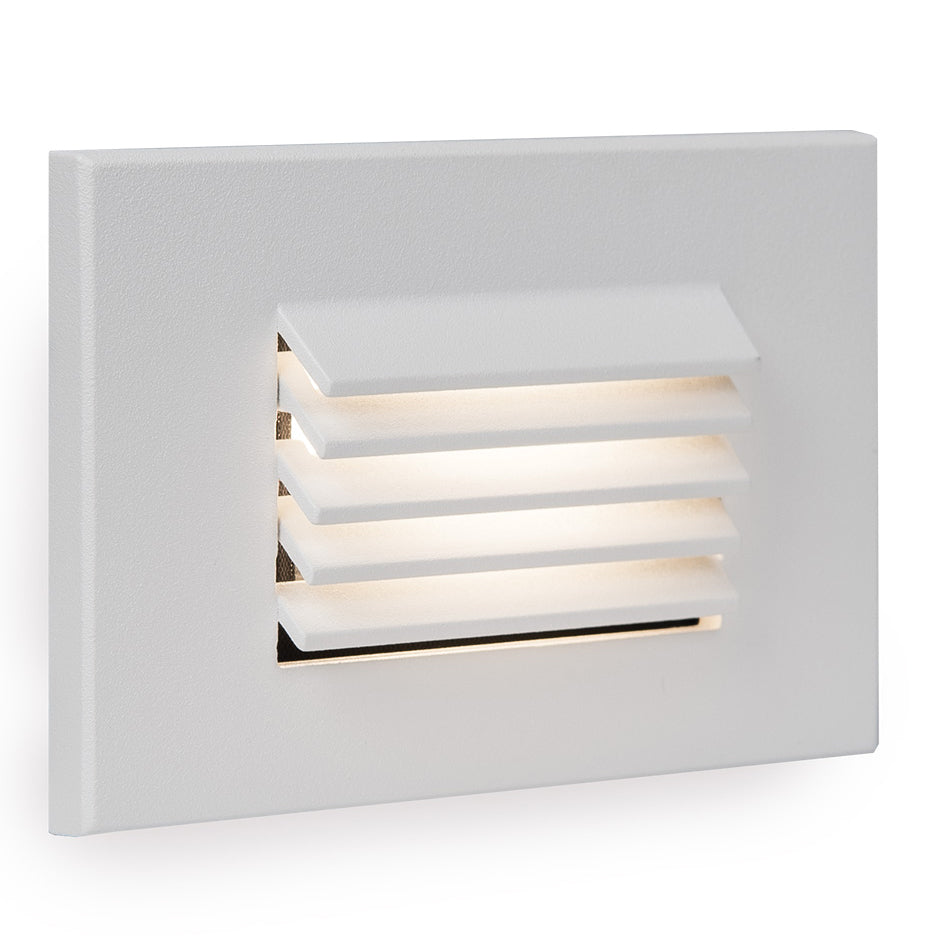

Wac WL-LED120-C-WT is a step and wall light with an integrated 3.5W LED module that delivers approximately 36 lumens at 3000K and 90 CRI. It is designed for low-profile, shielded illumination and operates on 120 V AC with ELV dimming (100-10%). The fixture uses a die-cast corrosion-resistant aluminum housing with a louvered face and a magnetized interchangeable faceplate for simplified installation and maintenance, and has a rated life of 50,000 hours.
- Integrated 3.5W LED module, ~36 lm output, 3000K color temperature, 90 CRI; rated life 50,000 hours
- 120 V AC operation with ELV dimming (100-10%); integrated LED (no remote driver required)
- Die-cast corrosion-resistant aluminum construction, louvered shielded design, magnetized interchangeable faceplate; fits into standard 2 x 4 J-box
Product Highlights
Low-profile die-cast aluminum step and wall light; 3.5W, 36 lm at 3000K, 90 CRI; ELV dimmable; IP66 wet-location rated; replacement module 4EPD500511.
Product Information
Standard Information
-
Brand: WAC
-
Manufacturer Part Number: WL-LED120-C-WT
-
Country of Origin: Thailand
Technical Specifications
-
Manufacturer Part Number: WL-LED120-C-WT
-
Brand: Wac
-
Model: WL-LED120
-
Input Voltage: 120 V AC, 50/60 Hz
-
Power / Wattage: 3.5 W
-
Delivered Lumens: 36 lm
-
Color Temperature: 3000K
-
Color Rendering Index (CRI): 90
-
Rated Life: 50,000 hours
-
Dimming: ELV dimming 100-10%
-
Light Source: Integrated LED module
-
Replacement Module: 4EPD500511
-
Construction / Material: Die-cast corrosion-resistant aluminum alloy
-
Design / Features: Louvered shielded face; magnetized interchangeable faceplate; low-profile, flush-to-wall aesthetics
-
Mounting Type: Hardwired, ceiling/wall; fits into 2 x 4 J-box (minimum inside dimensions 3"L x 2"W x 2"D)
-
Dimensions (W x H x D): 5.00 in x 3.13 in x 1.75 in
-
Weight: 1.02 lb
-
Beam Pattern: Flood
-
Ingress Protection (IP) Rating: IP66
-
Location Rating: Wet location
-
Certifications: ETL, cETL, Title 24 (JA8)
-
Finish: White on Aluminum
-
Mounting / Installation Notes: Magnetized faceplate for tool-free removal; fits standard 2 x 4 J-box
-
UPC: 790576458526
-
Country of Origin: Thailand
