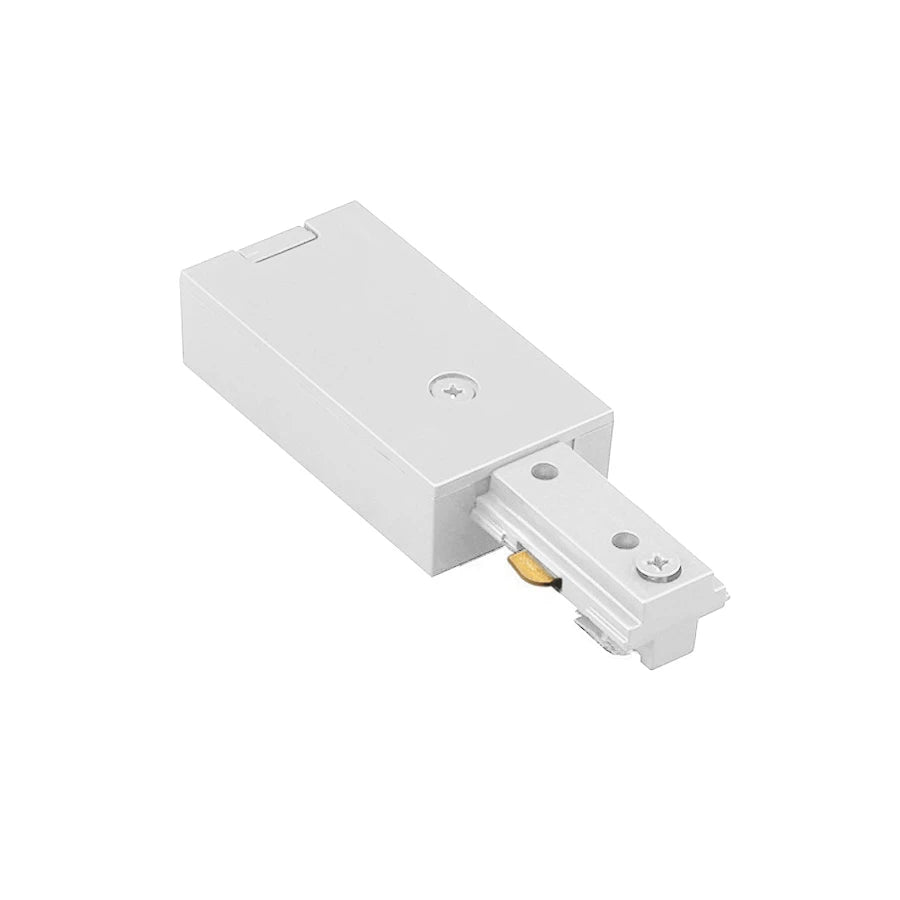

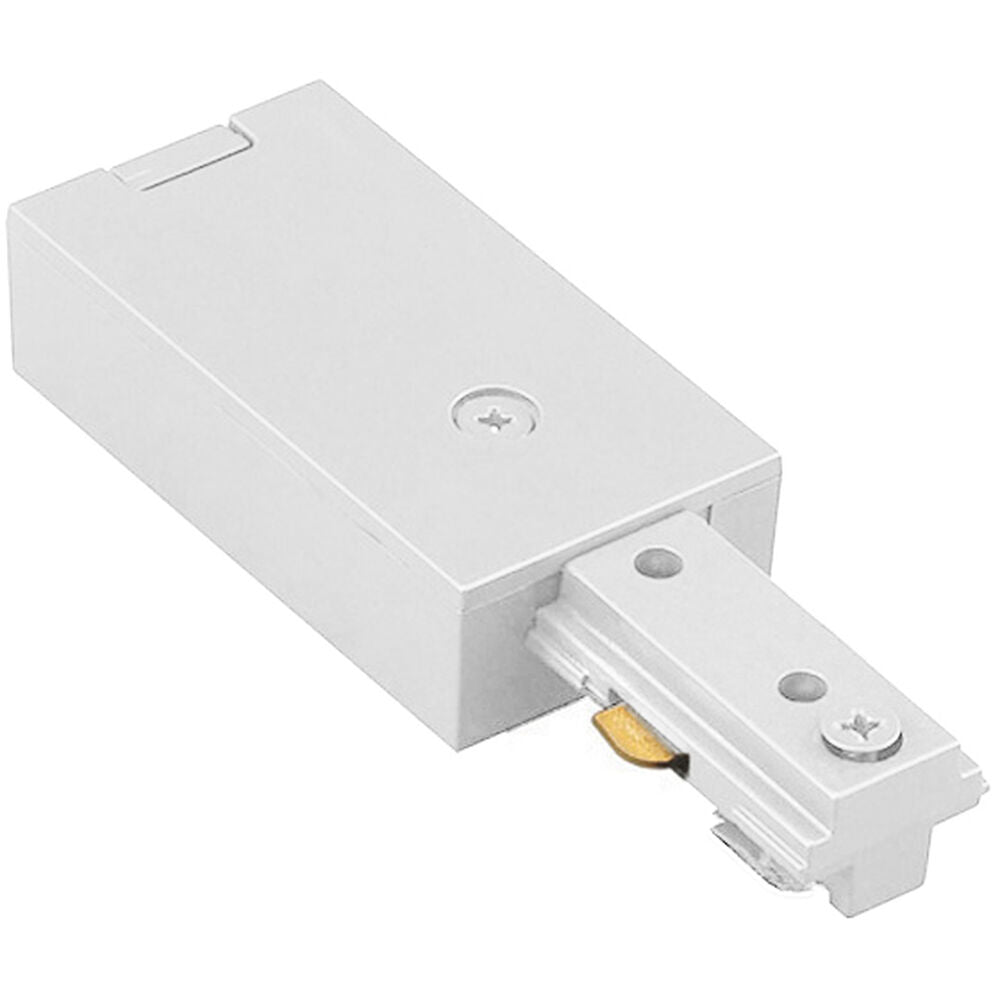

Wac LLE-WT L Track Live End Connector 120V

Product Description

The WAC LLE-WT L Track Live End Connector is designed for 120V track systems, enabling power distribution to track lighting. Live end connectors supply power to a track system on either end of the track. Compatible with L track systems and L systems from other leading lighting manufacturers. Single Circuit 120V track, 1920W max per circuit, 20A max.

• Compatible with L track systems and J style fixtures by WAC Lighting Also compatible with L systems and L style fixtures from other leading lighting manufacturers
• Die cast aluminum construction.
• For use with L Track systems.

Product Highlights

This live end connector is for use with WAC's L-Series 120V Track Systems. It is UL & cUL Listed for Dry Locations.

Product Information

Standard Information

• Brand: WAC
• Manufacturer Part Number: LLE-WT
• Country of Origin: China

Technical Specifications

• Brand: WAC Lighting
• Brand Category: Track Component
• Brand Product Description: L Track Live End Connector
• Lamping Included: Bulbs Not Included
• Lamping Type: None
• Voltage: 120 Volts
• Extension: 5.39
• Height: 0.75
• Length: 4.25
• Maximum Adjustable Height: 0.75
• Width: 1.39
• Country of Origin: China
• UL Ratings: UL/cUL Dry
• Complete System: No
• Interior/Exterior: Interior
• Hardwired or Portable: Hardwired
• Mounting: L-Track
• System: L Track
• Light Source Type: LED
• Power Source: AC
• Maximum Compatible Light Source Wattage: 1920 Watts
• Mounting Type: Ceiling Mount
• Light Source Special Features: Dimmable
• Number of Light Sources: 1
• Batteries are Included: No
• Wattage: 1920 watts
• Finish Types: Painted
• Material: Aluminum
• Category: Track
• Style 1: Traditional
• Sub Category: Parts
• Collection: L Track
• Light Bulb Requirement::: Bulbs Not Included
• Dimmable: No
• Special Features: UL, cUL
• Volt: 120 VAC
