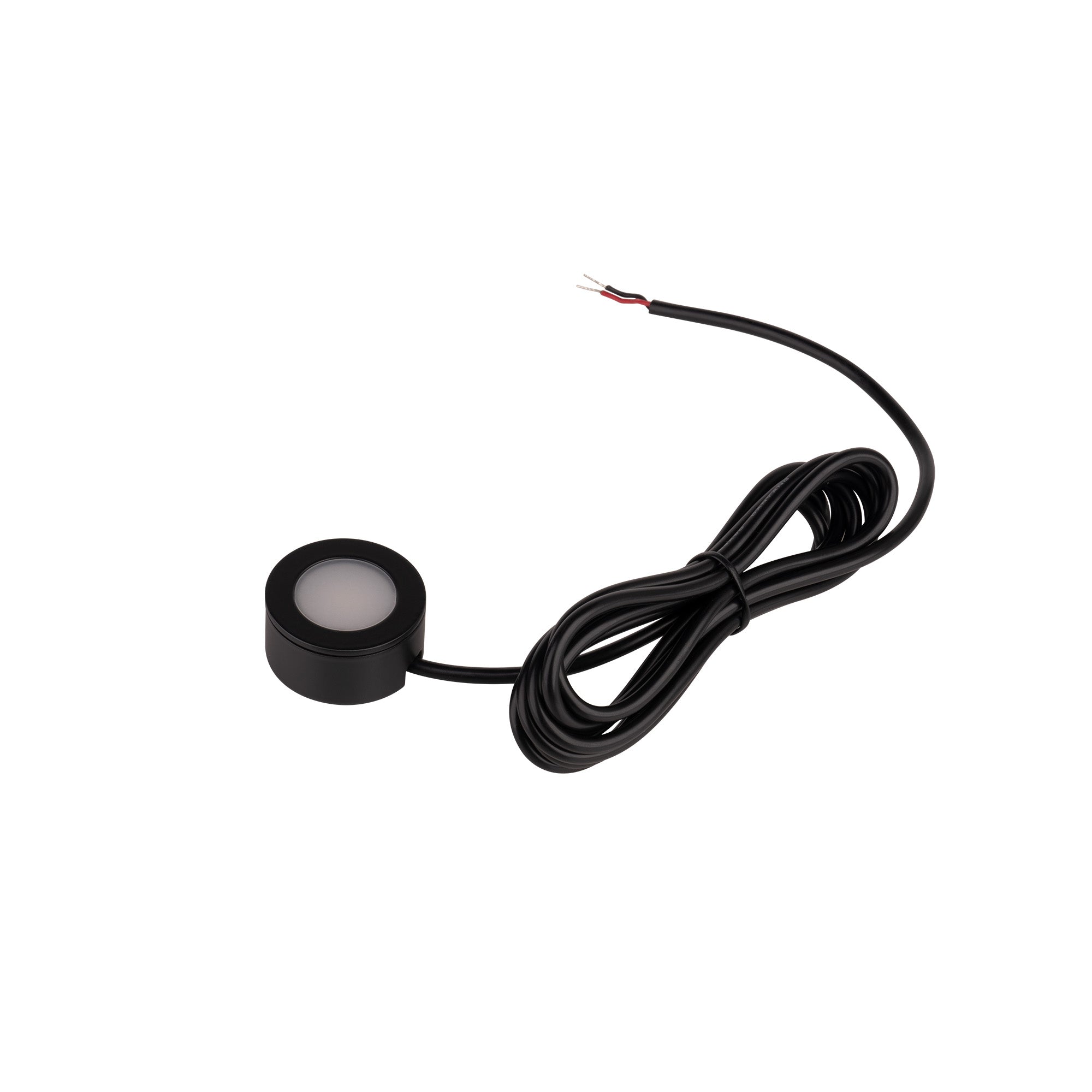

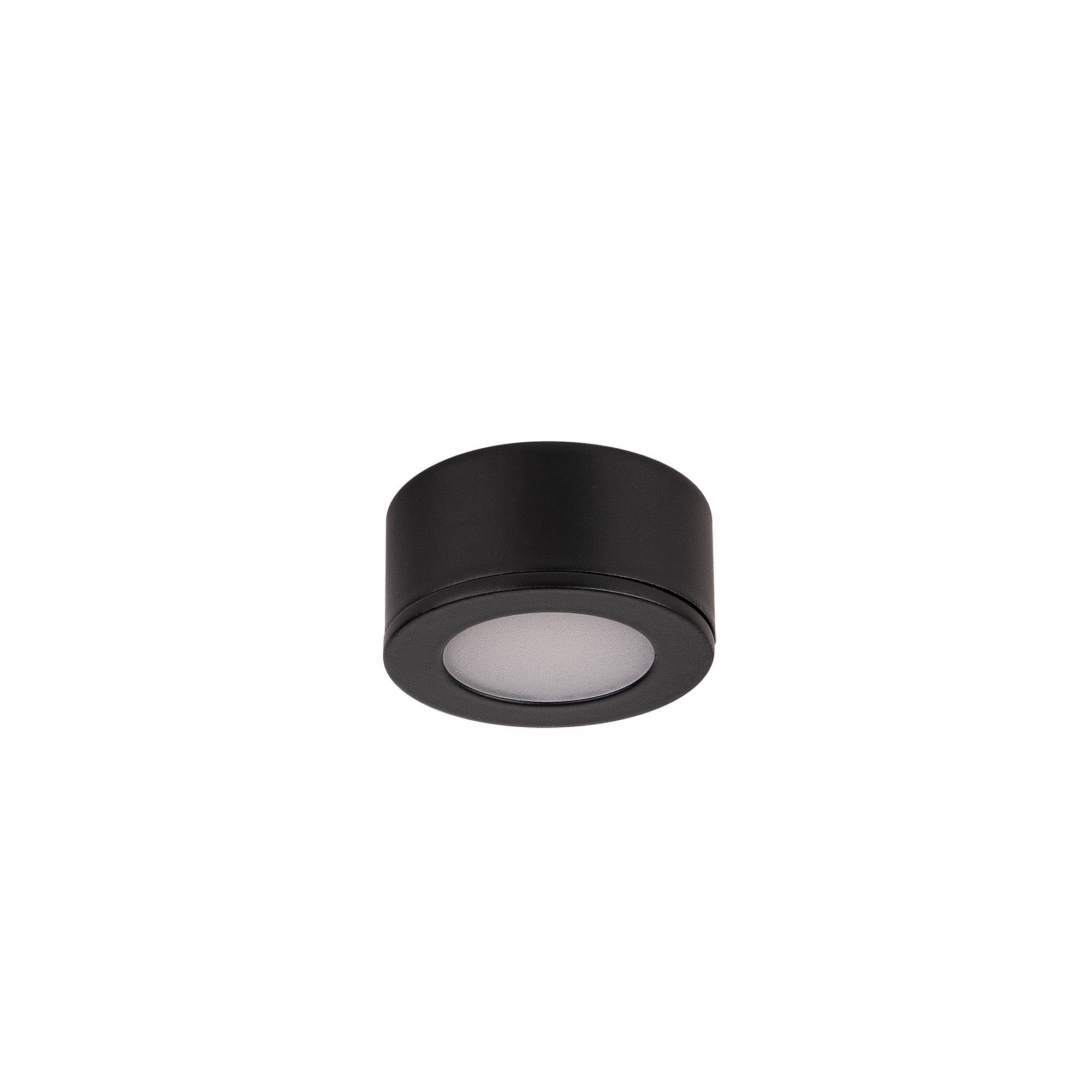

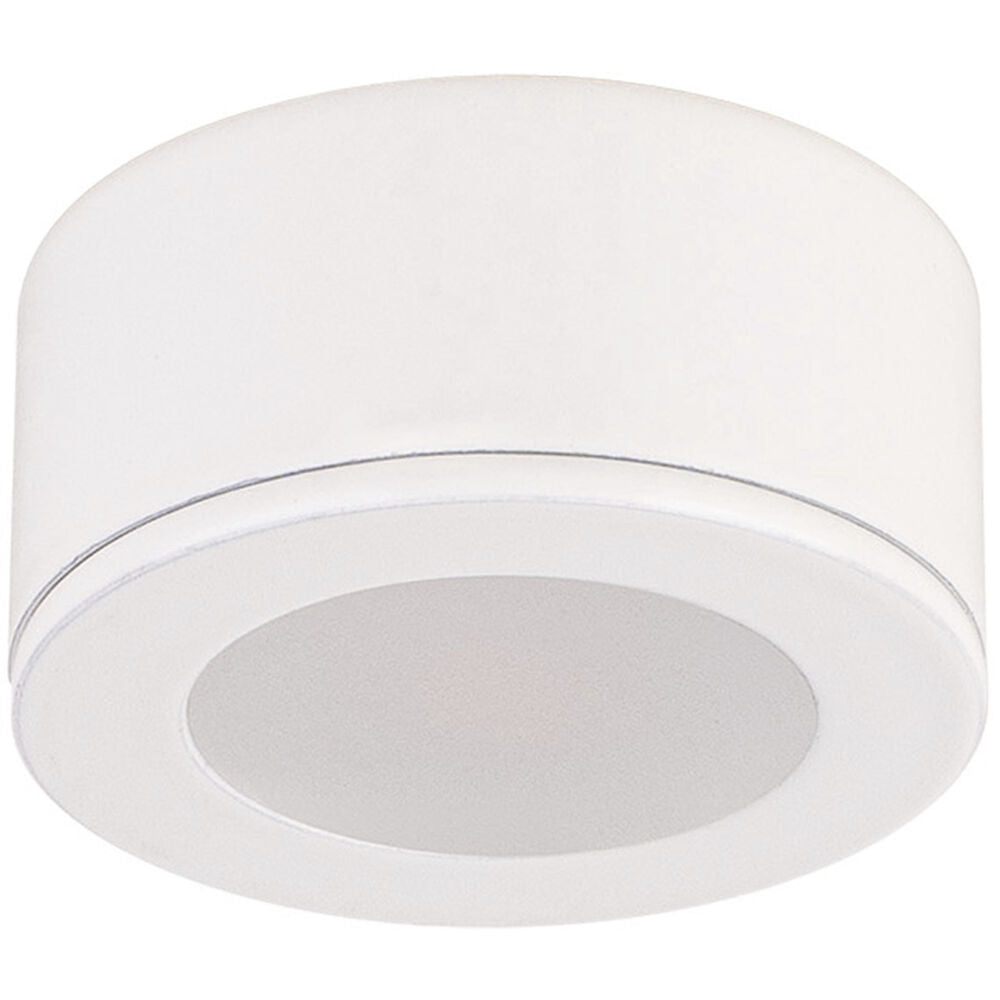

Wac Lighting HR-LED10-30-WT Mini Puck 1 Light Puck Lighting Ceiling Light 2 Watts

Product Description

The WAC LIGHTING HR-LED10-30-WT Mini Puck Light is an undercabinet lighting solution designed for optimal ambient illumination. This 2-watt LED fixture, with a 3000K color temperature and 90 CRI, delivers 95 lumens. It can be surface mounted or recessed into cabinetry for a clean appearance, making it suitable for kitchens, bathrooms, and other spaces. Operating at 24 VAC/VDC, it offers smooth and continuous dimming with ELV or TRIAC dimmers. Its die-cast aluminum construction ensures durability.

• Can be surface mounted or recessed mounted into cabinetry for a cleaner appearance.
• Delivers optimal ambient illumination in kitchens and other spaces.
• Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer.

Product Highlights

Compact 24V LED puck light for versatile undercabinet or ceiling lighting applications.

Product Information

Standard Information

• Brand: WAC LIGHTING
• Manufacturer Part Number: HR-LED10-30-WT
• Country of Origin: Thailand

Technical Specifications

• Brand: WAC Lighting
• MPN: HR-LED10-30-WT
• SKU: HR-LED10-30-WT
• UPC: 790576992716
• Model Series: HR-LED10 Mini Puck
• Fixture Type: Single Fixture
• Product Type: Mini Puck 24VACDC LED Puck Light
• Category: Puck Lighting
• Light Source Type: LED
• Bulb Type: LED Integrated Module
• Number of Bulbs: 1
• Socket Type: LED Module
• Power: 2 Watts
• Max Wattage: 2.00
• Input Voltage: 24 VAC/VDC, 50/60Hz
• Dimmable: Yes
• Dimmer Type: Low Voltage Electronic
• ELV Dimming Range: 100-10%
• TRIAC Dimming Range: 100-5%
• Color Temperature: 3000K
• CRI: 90
• Delivered Lumens: 95
• Efficacy: 47.50 Lumens/Watt
• Beam Spread: Wide Flood
• Rated Life: 50000 Hours
• Finish: White
• Material: Die-cast aluminum
• Diffuser Material: Translucent Acrylic
• Diffuser Color: Frosted
• Diameter: 1.38 inches
• Height: 0.63 inches
• Length: 1.38 inches
• Width: 1.38 inches
• Lead Wire Length: 72.00 inches
• Cord Length: 6 inches
• ADA Compliant: Yes
• Title 20 Compliant: Yes
• Title 24 Compliant: Yes
• Certifications: ETL/cETL, IP20 Damp Location, Title 24 (JA8) Compliant
• Bulbs Included: Yes
• Design Style: Functional
