Wac Lighting HR-86-DB Xenon HR-86 Low Voltage Button Light 20W (2 5/8 in)

Brand: WAC LIGHTING
SKU: HR-86-DB
Availability: In Stock

Ships same day if ordered by 12 pm
$23.00
$23.00
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Wac Lighting HR-86-DB is a low-voltage xenon button light designed for tight spaces with a low-profile, shallow installation depth. The fixture delivers 200 lumens at 20 W, operates on 12/24 VAC (50/60 Hz), and has a rated life of 50,000 hours. It is constructed of steel, includes a cutout template for recessed installation, is supplied with 72-inch wires, and requires a Class 2 transformer.

  • 20 W xenon light delivering 200 lumens with a rated life of 50,000 hours
  • Operates on 12/24 VAC (50/60 Hz); dimmable with electronic low-voltage dimmers; requires Class 2 power supply/transformer
  • All-steel construction; recessed or surface mounting with cutout template; supplied with 72 in wires; 2 5/8 in diameter

Product Highlights

Low-profile 20 W xenon puck/button light for undercabinet or tight-space recessed or surface mounting.

Product Information

Standard Information

  • Brand: WAC LIGHTING
  • Manufacturer Part Number: HR-86-DB
Technical Specifications
Brand
Wac Lighting
Manufacturer Part Number
HR-86-DB
Model / Catalog Number
HR-86-DB
Light Technology
Xenon
Power
20 W
Delivered Lumens
200 lm
Input Voltage
12/24 VAC, 50/60 Hz
Rated Life
50,000 hours
Material / Construction
Steel (all steel construction)
Mounting
Recessed or surface mounting; recessed installations include cutout template
Wire Length
72 in supplied
Dimmable
Dimmable with electronic low-voltage dimmers
Power Supply Requirement
Must be used with a Class 2 power supply; transformer required
Orientation
Can be mounted on wall in all orientations

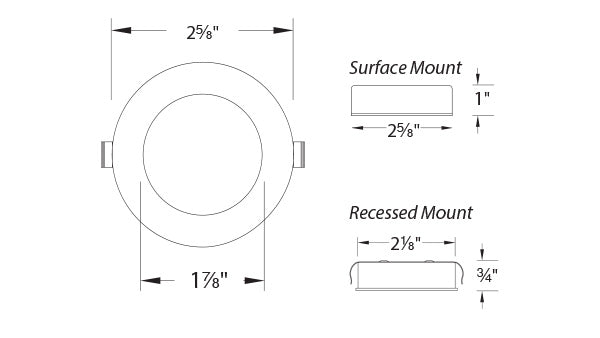

Diameter
2.625 in
UPC
790576167640
