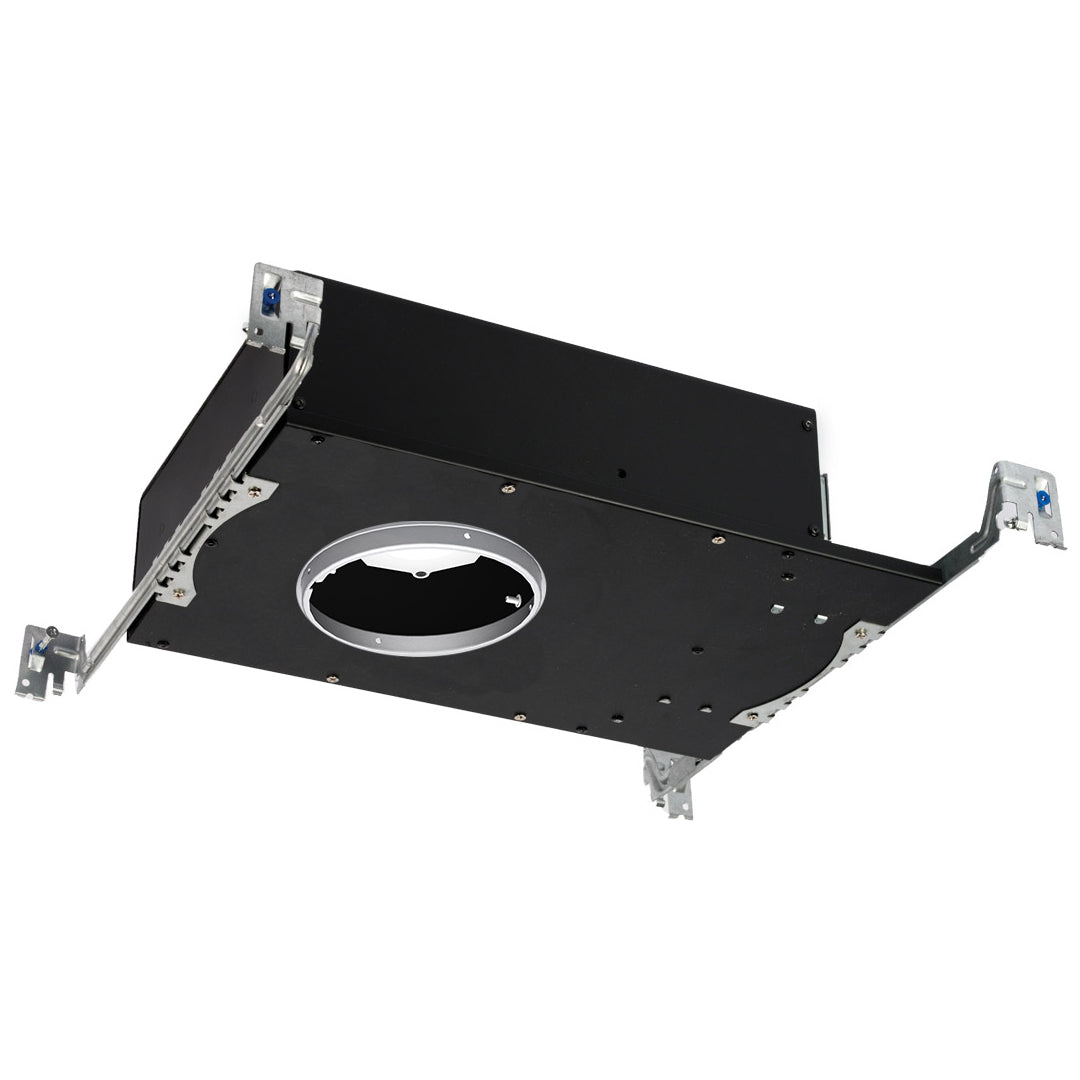

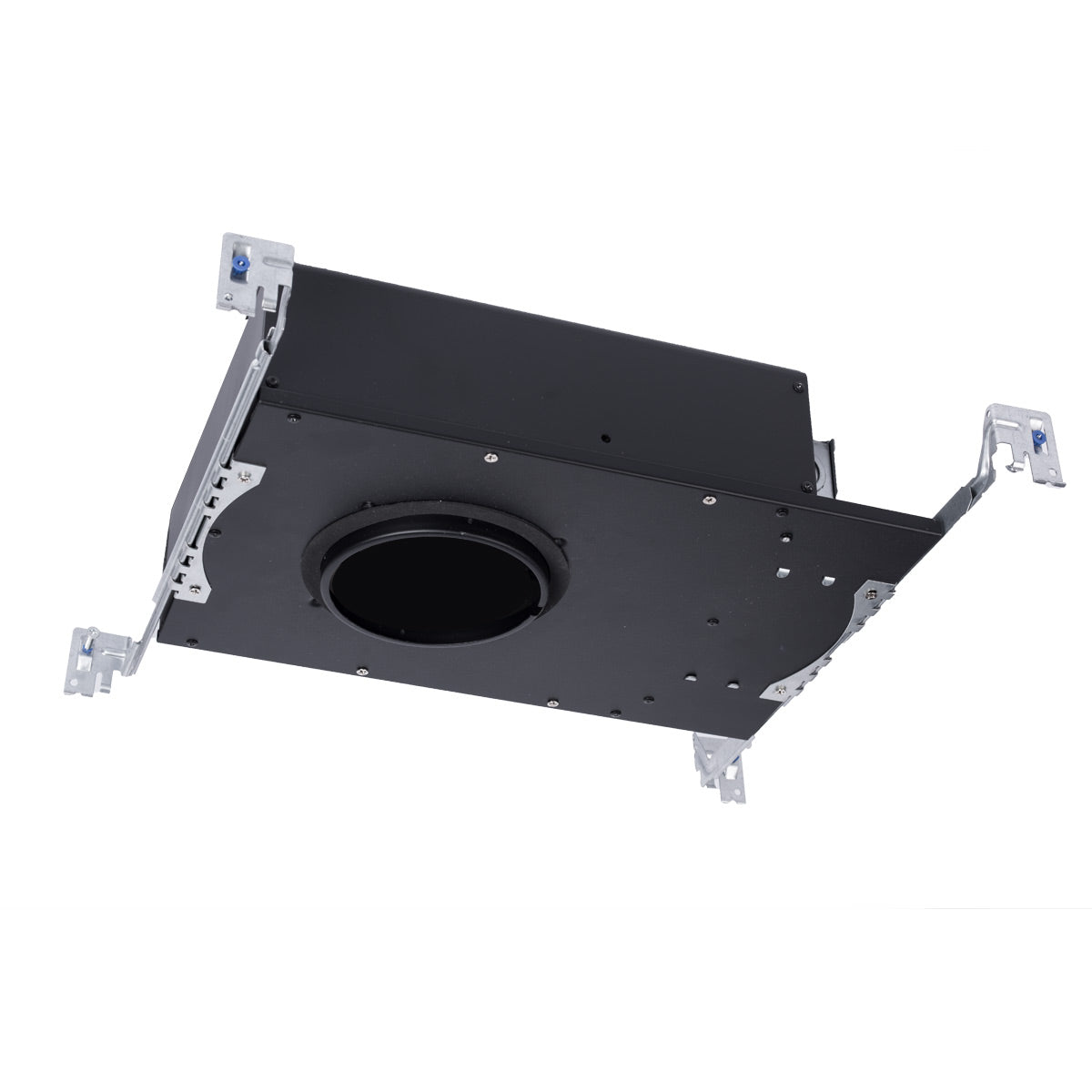

Wac Lighting HR-3LED-H17A Aether 22.5W (3.5in Housing)

Product Description

Wac Lighting HR-3LED-H17A is an Aether new construction shallow recessed housing designed for IC-rated, airtight LED downlighting. The housing operates at 120-277 V with a 22.5 W rating and a 3.5 inch profile for tight plenum spaces; a concealed universal driver is provided and the unit supports dimming and ETL/cETL safety listings.

• IC-rated for direct contact with insulation and airtight construction for reduced air leakage
• Universal input voltage 120-277 V with concealed driver; compatible with electronic dimming
• ETL and cETL listed with Energy Star rating and designed for shallow plenum new construction

Product Highlights

Shallow 3.5in new construction recessed housing; 22.5W LED specification; IC-rated and airtight; 120-277V universal input; ETL/cETL and Energy Star listings.

Product Information

Standard Information

• Brand: WAC LIGHTING
• Manufacturer Part Number: HR-3LED-H17A
• Country of Origin: China

Technical Specifications

• Brand: Wac Lighting
• MPN: HR-3LED-H17A
• Model Name: Aether new construction shallow housing
• Input Voltage: 120-277 V
• Power Consumption: 22.5 W
• Height: 3.5 inches
• Housing Type: New construction recessed housing
• Mounting Type: Ceiling recessed (new construction)
• IC Rated: Yes
• Airtight: Yes
• Dimmable: Yes
• Dimming Type: ELV and 0-10V (smooth continuous dimming to 1% supported)
• Driver: Universal driver included (conceled), rated for 120-277 V input
• Material: Aluminum housing with cold-rolled steel wiring box noted in some listings
• Cutout Size: 4.5 inches
• Trim Size: 5.25 inches
• Trim Aperture: 3.5 inches
• Certifications: ETL, cETL, Energy Star (wet-location listing indicated in some configurations)
• Bulb Included: No
• Ceiling Thickness Compatibility: 1/2 inch - 1 1/2 inch
• Country of Origin: China
