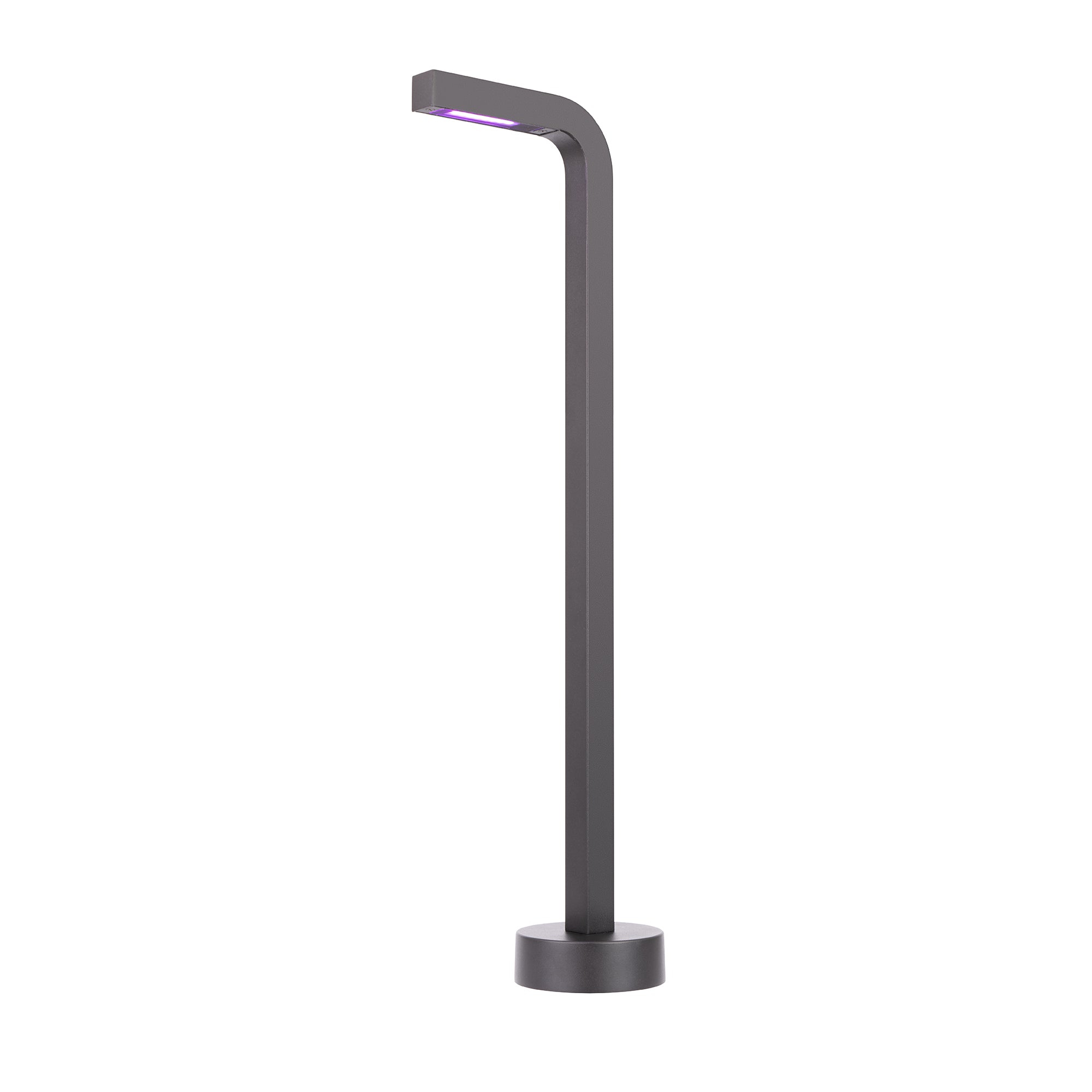

Wac Lighting 6861-CSBK Balance Path Colorscaping 7W

Product Description

The WAC LIGHTING 6861-CSBK Colorscaping transformer allows for installation growth, each transformer, supports one or two legacy landscape, lighting, circuits in addition to the Colorscaping fixtures. Each fixture can be individually controlled and grouped. Fixtures contain discrete, warm, and a cool white LEDs for full tunability. Fixtures can generate tens of thousands of different colors.

• Delivered Lumens: 310lm
• CCT: Color Changing
• CRI: 85

Product Highlights

Automations can be stored in recalled for holiday or other celebratory lighting scenes. Fixtures from multiple transformers can be controlled as a single group in the app. Integrators can control the fixtures using industry standard DMX 512.

Product Information

Standard Information

• Brand: WAC LIGHTING
• Manufacturer Part Number: 6861-CSBK
• Country of Origin: USA

Technical Specifications

• Order Number: 6861-CSBK
• model & voltage: 6861 - 15VAC
• color temp & cri: Color Changing - 85
• Lumens: 310
• finish: BK - Black on Aluminum
• Brand: WAC Lighting
• Brand Category: Path Lighting
• Brand Product Description: WAC LED Colorscaping RGBWW Balance Path and Area Light
• Dimmable: Yes
• Lamping Category: LED
• Lamping Features: Bulb Shape: LED
• Average Hours: 50000
• Lamping Included: Bulbs Included
• Lamping Type: LED - Transformer
• Lead Wire Length: 36
• Primary Number of Bulbs: 1
• Total Number of Bulbs: 1
• Total Watts: 7
• Voltage: 12
• Wattage Max: 7.00
• Height: 24.88
• Length: 7.92
• Width: 7.92
• ADA: Yes
• Country of Origin: USA Assembled
• Title 24: Yes
• UL Ratings: UL, cUL, IP66 Wet
• Material: K-Alloy Aluminum
• Glass Features: Frosted Glass Lens
• Power: 7W
• Input: 15VAC
• Color Temperature: Color Changing
• Delivered Lumens: 310
• CRI: 85
• Rated Life: 50000 Hours
• Construction: Corrosion resistant aluminum alloy
• Base: 3.94" Dia. x 1.31" H
• Lamping: 1 x 7W LED (Included)
