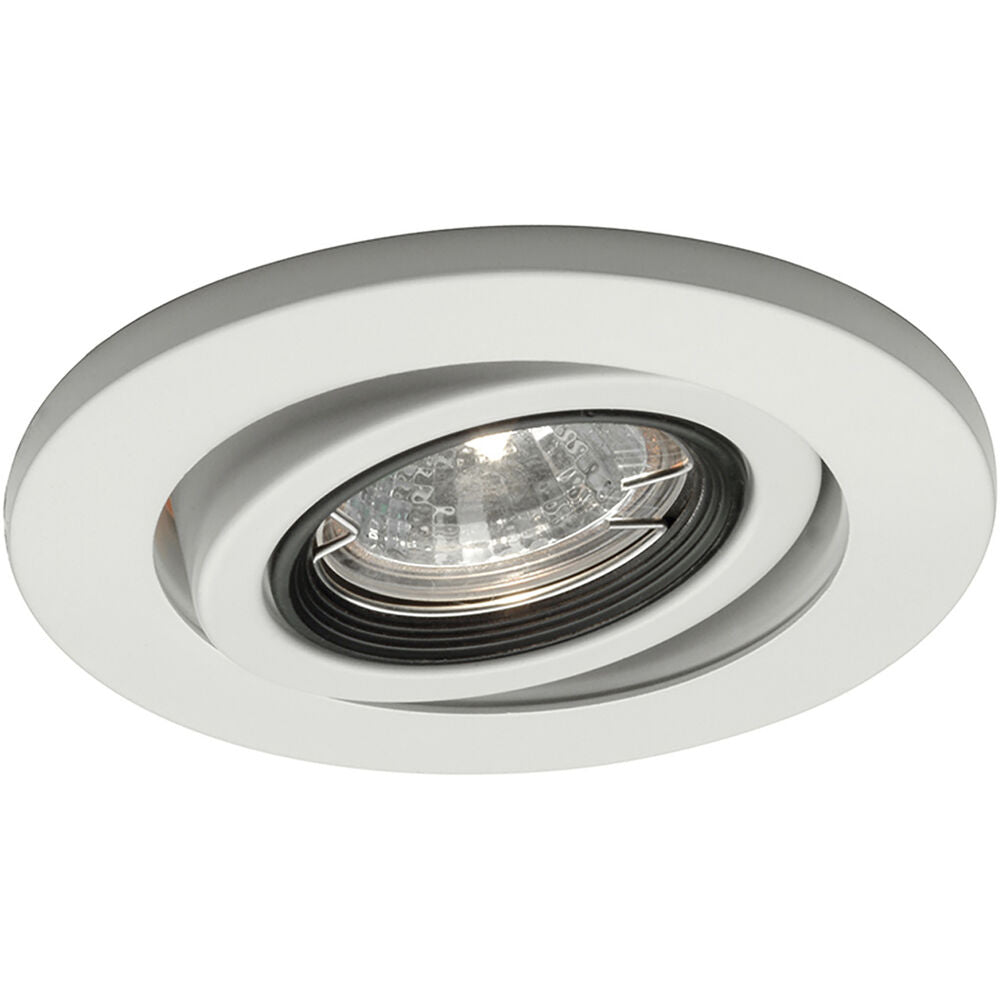

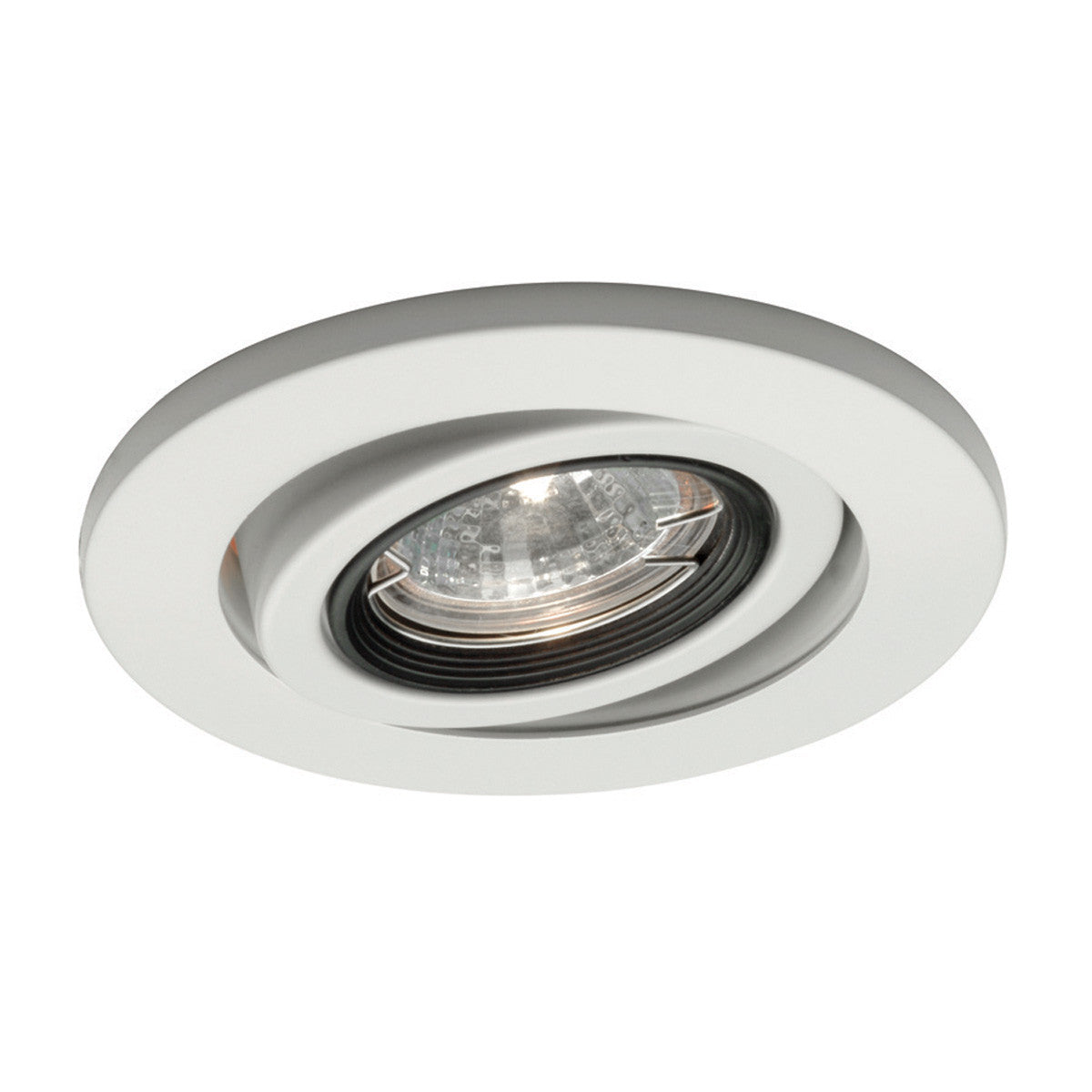

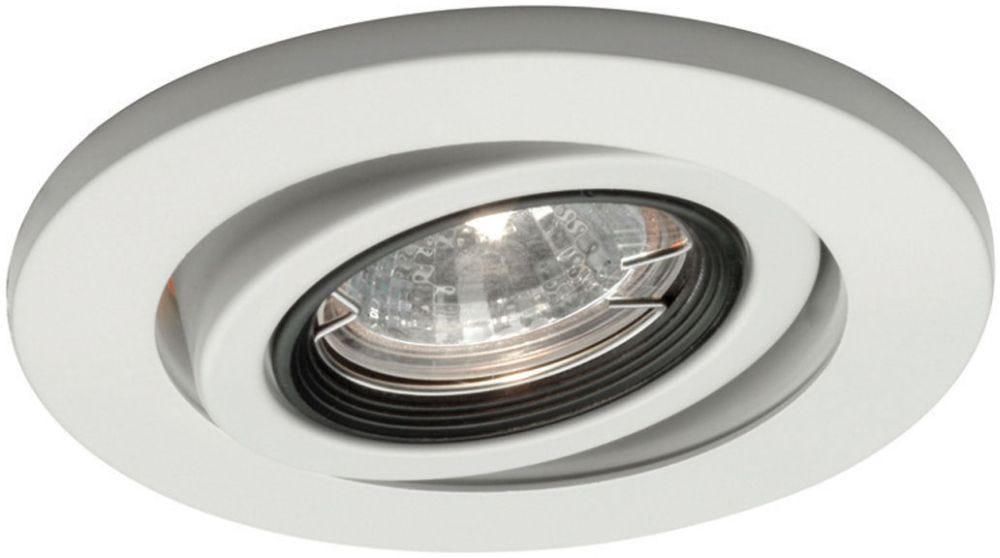

Wac HR-D417-WT Round Gimbal Trim

Product Description

The WAC HR-D417-WT is engineered for high performance in a compact fixture. These 4 inch Low Voltage Recessed Downlights are styled with form and function. It allows for a 25 degree adjustment in either direction from vertical and is compatible with any WAC HR-8400 low voltage housing.

• Includes retention clips to secure firmly into housing.
• Allows for 25 degree adjustment in either direction from vertical.
• Simple to install, compatible with any WAC HR-8400 low voltage housing or existing 4in recessed retrofit.

Product Highlights

The HR-D417-WT is a round gimbal light for ambient, accent, and slope ceiling downlighting. Gimbal can tilt 30 degrees and rotates 360 degrees.

Product Information

Standard Information

• Brand: WAC
• Manufacturer Part Number: HR-D417-WT
• Country of Origin: China

Technical Specifications

• Brand: WAC Lighting
• Brand Category: Trim
• Brand Product Description: 4in Round Adjustable Gimbal Trim
• Dimmable: Yes
• Lamping Category: LED
• Lamping Features: Bulb Shape: MR16
• Lamping Included: Bulbs Not Included
• Lamping Type: GY5.3
• Primary Number of Bulbs: 1
• Socket: GY5.3
• Total Number of Bulbs: 1
• Voltage: 120 Volts
• Wattage Max: 50.00

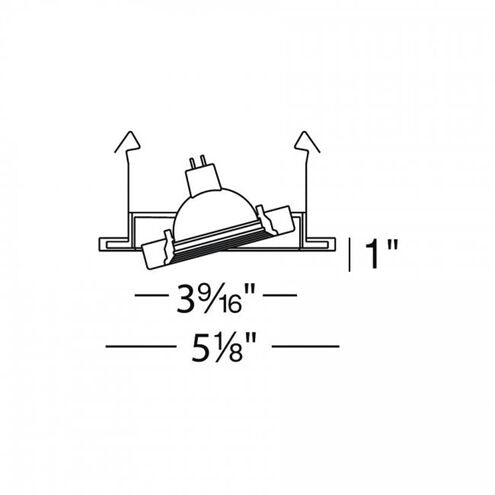

• Diameter: 5.13
• Height: 1
• Country of Origin: China
• Title 24: Yes
• UL Ratings: UL/cUL Damp
• Hardwired or Portable: Hardwired
• Interior/Exterior: Interior or Exterior Covered
• Standards: UL & cUL Damp Location Listed.
• Construction: Durable Die-cast aluminum construction.
• Accessory 1 Type: Housing
• Accessory 1 SKU: HR-8402E, HR-8401E, HR-8403H, HR-8403HF, HR-8402H, HR-8402HF, HR-8402HL, HR-8402HFL, HR-8401H, HR-8401HF
• Accessory 2 Type: LED Lamp
• Accessory 2 SKU: MR16LED-BAB-BK, MR16LED-BAB-WT
• Mounting: No
• Material: Aluminum
• Color: White
• Special Features: UL, cUL
• Light fixture form: Recessed
• Room Type: Bathroom, Bedroom, Dining Room, Kitchen, Living Room
• Specific Uses For Product: General purpose
• Indoor Outdoor Usage: Indoor
• Power Source: AC/DC
• Light Source: LED
• Number of Light Sources: 1
• Light Color: White
• Lighting Method: Adjustable
• Wattage: 50 watts
• Bulb Base: G5.3
• Water Resistance Level: Water Resistant
• Brightness: 450 lumen
• Efficiency: High Efficiency
• Mounting Type: Ceiling Mount
• Fixture Type: Non Removable
• Color Temperature: 3000 Kelvin
• Light Output Maximum: 1000 Lumens
• Specification Met: ANSI, Energy Star, RoHS, UL, cUL
• Required Assembly: Yes
• Type: Gimbal Ring
• Lamp Type: LED MR16/Halogen MR16 12 V 50/75 W
• Ceiling Type: Non-Insulated
• Size: 5-1/8 Inch
• Finish: White
• Approval: UL CUL
• Used On: HR-8400 Series Low Voltage Housing
• Bulb: 1 x MR16/GU5.3 (bipin)/7W/12V LED Bulb not included
• Dimmer: Low Voltage Electronic
• Function: Adjustable Accent
• Aperture Shape: Round
• Aperture Size: 4.000"
• Lamp Source: LED
• Total Wattage: 7 watts
