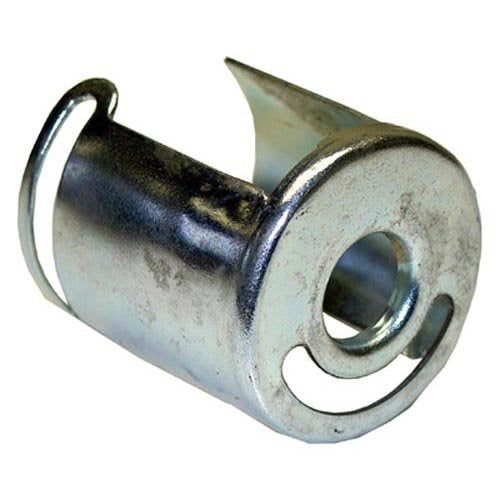

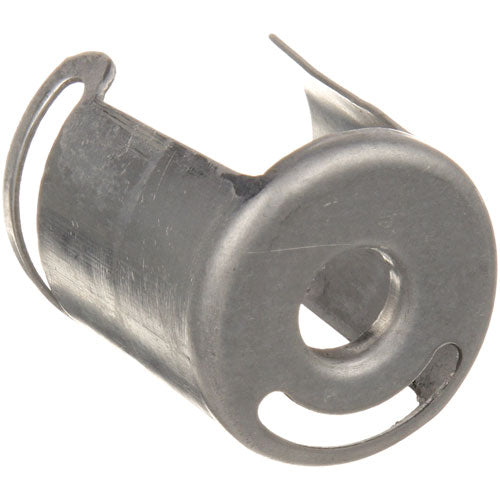

Vulcan Hart 00-413775-00003 Air Shutter Tube Burner

Product Description

The VULCAN HART 00-413775-00003 is an air shutter designed for use with 1-1/4 inch diameter tube burners in commercial broiler and oven equipment. It features a 0.480 inch orifice hole and measures 1.47 inches in length, with front-side screw slots for secure mounting and adjustment. Air shutters regulate the air-to-fuel mixture entering the burner, directly affecting flame quality and combustion efficiency. This part is installed by qualified commercial kitchen equipment technicians and foodservice equipment service professionals during routine maintenance or burner repair.

This air shutter is suited for commercial broiler and oven applications where tube burner service is required. Compatible equipment includes Magikitch'n broiler series models FMB-RMB, RMB, and RMB-APM, as well as Star broiler models 255B, 257, and 258B. It is also applicable to Wolf oven units that use the corresponding tube burner configuration. Verify burner diameter and orifice size before installation to confirm fitment.

Key Features

• Designed for 1-1/4 inch diameter tube burners used in commercial broilers and ovens
• 0.480 inch orifice hole for proper air-fuel mixture control
• 1.47 inch body length with front-side screw slots for field adjustment and secure retention
• OEM part number 00-413775-00003 ensures direct replacement fitment
• Overall dimensions of 1.73 inches x 1.26 inches x 1.26 inches

Compatibility

Compatible with Magikitch'n broiler series FMB-RMB, RMB, and RMB-APM; Star broiler models 255B, 257, and 258B; and Wolf oven units using a 1-1/4 inch diameter tube burner with a 0.480 inch orifice.

Installation Notes

Installation should be performed by a qualified commercial kitchen equipment technician or licensed gas appliance service professional. Shut off all gas supply and allow the unit to cool completely before beginning any burner service. Front-side screw slots allow for positional adjustment of the shutter during setup - use appropriate hand tools and verify the air shutter is secured before restoring gas flow. Follow all applicable local gas codes and manufacturer service documentation during service.
