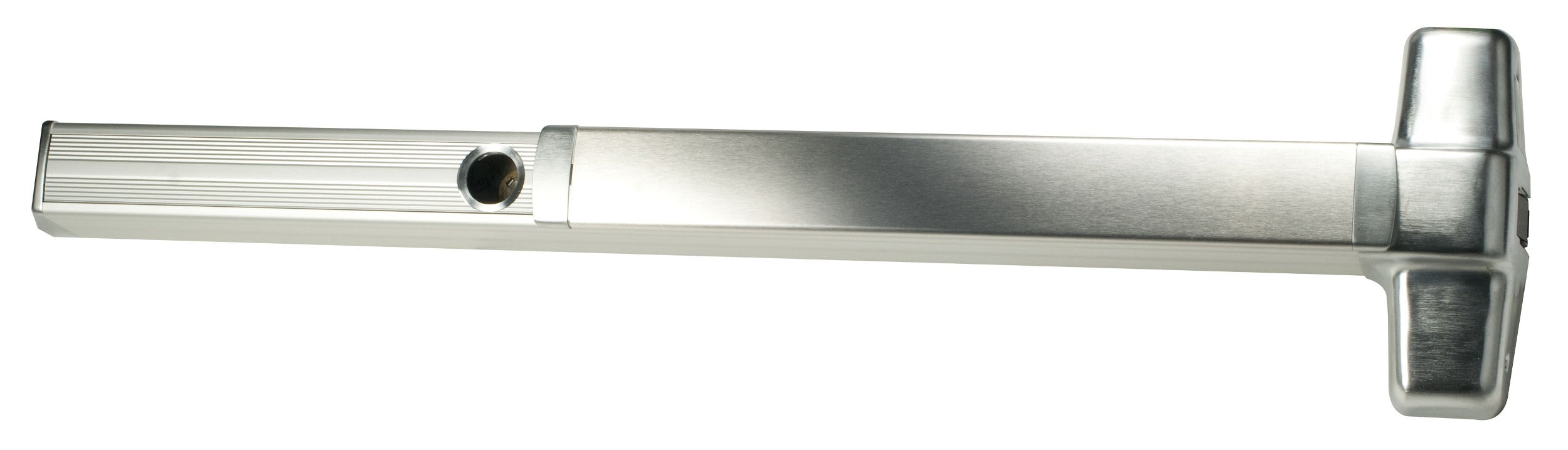

Von Duprin CD99EO26D3 Rim Exit Device Cylinder Dogging 626

Product Description

The VON DUPRIN CD99EO26D3 is a cylinder dogging rim exit device designed for commercial door applications requiring reliable, code-compliant egress hardware. The grooved case construction houses the dogging mechanism, which allows the latch to be held in the retracted position for hands-free passage during high-traffic periods. The device ships in a 626 satin chrome finish, providing corrosion resistance suited to interior and light exterior applications. At 36.75 inches in length, it is configured for standard 3-foot door widths. Licensed locksmiths, door hardware specialists, and commercial contractors are the typical installers of this device.

This rim exit device is intended for commercial and institutional buildings such as schools, hospitals, office buildings, and public facilities where panic hardware is required by code. The cylinder dogging feature allows facility managers or authorized personnel to deactivate the latch using a standard key cylinder, making it practical for high-traffic entry and exit points during business hours. The grooved case profile accommodates standard rim device mounting conditions on hollow metal and wood doors.

Key Features

• Cylinder dogging mechanism allows key-controlled latch retraction for high-traffic use
• Grooved case rim exit device construction for standard commercial door applications
• 626 satin chrome finish for corrosion resistance and clean appearance
• 36.75-inch length fits standard 3-foot door widths
• Rim-mount design installs directly to door face without mortising

Compatibility

Designed as an OEM-style replacement or new-installation rim exit device for standard 3-foot commercial doors requiring cylinder dogging panic hardware.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware professional familiar with ANSI and local building code requirements for panic egress devices. Before installation or service, ensure the door is secured and no electrical power is present if the device is used in conjunction with electric hardware. Follow the manufacturer's template and instruction sheet for proper strike and case alignment. Do not modify the cylinder dogging mechanism, as doing so may void compliance with applicable life safety codes.
