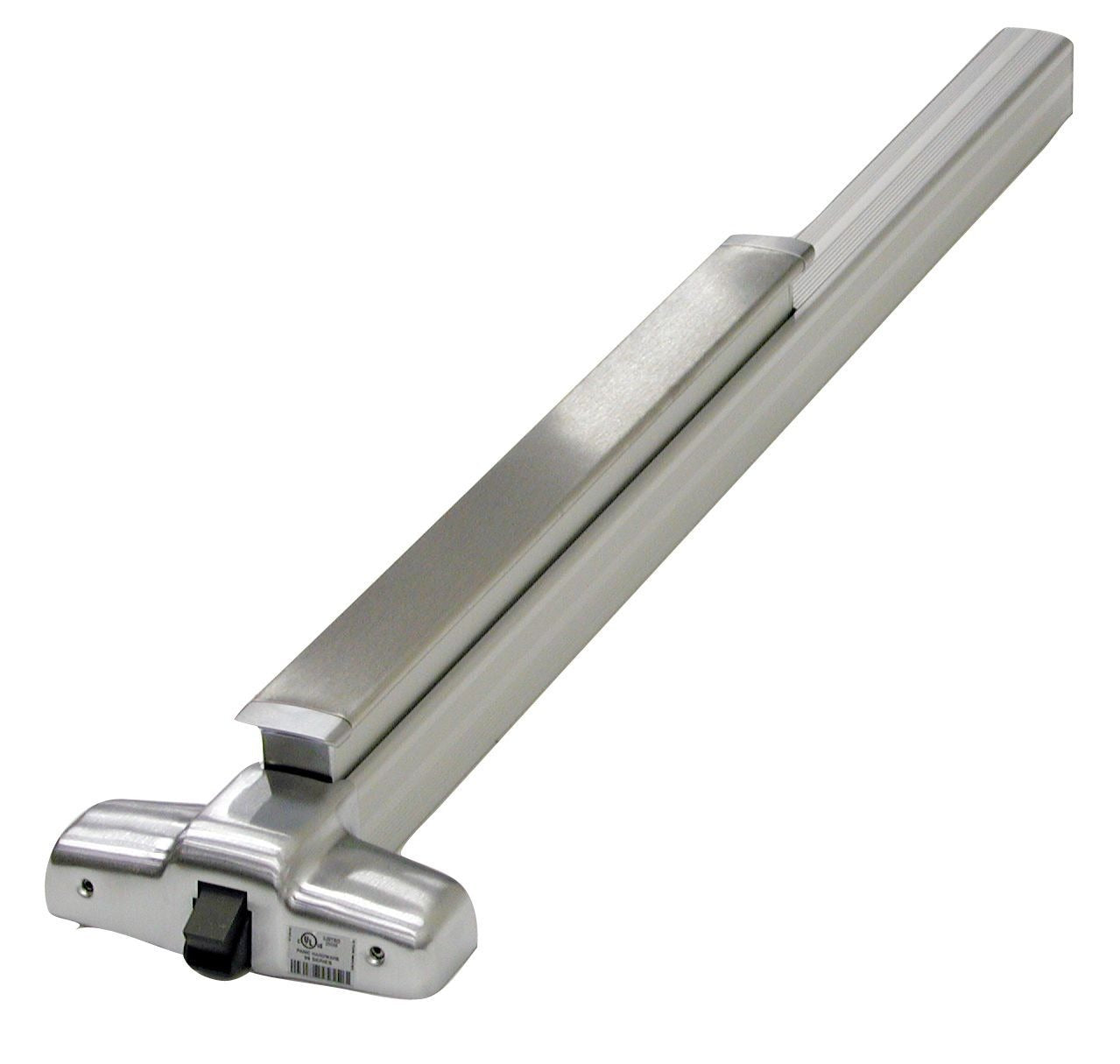

Von Duprin AX99EO26D3 Rim Exit Device 626 Satin Chrome

Product Description

The VON DUPRIN AX99EO26D3 is a 3-foot accessible rim exit device with a grooved case profile and a 626 satin chrome finish. It is designed for single-door commercial and institutional applications where panic hardware is required by code. The grooved case provides a clean, architectural appearance while maintaining the structural integrity expected in high-traffic egress assemblies. At 12.45 pounds, the unit is a full-length touchbar-style device suited for doors requiring ADA-accessible egress hardware. Licensed contractors and commercial door hardware specialists are the primary installers of this device.

This exit device is intended for commercial, institutional, and public-building applications where code-compliant panic hardware is mandated. Typical installations include school corridors, hospital wings, government facilities, and office buildings. The 626 satin chrome finish coordinates with standard commercial hardware finish schedules. The accessible design supports egress requirements under applicable building and life-safety codes, making it appropriate for doors serving high-occupancy spaces.

Key Features

• 3-foot (39.5-inch) grooved rim case exit device
• 626 satin chrome finish for corrosion resistance and architectural compatibility
• Accessible touchbar design supports ADA-compliant egress
• Rim-mount configuration for standard single-door commercial applications
• Sold individually as a complete exit device assembly

Compatibility

Designed as an OEM-style rim exit device for commercial single-door applications requiring accessible panic hardware in a 3-foot door width configuration.

Installation Notes

Installation should be performed by a licensed door hardware specialist or commercial contractor familiar with ANSI A156.3 exit device standards and applicable life-safety codes. Disengage any electric strike or access control power before beginning installation. Verify door preparation dimensions and backset against the device specifications prior to mounting. Do not modify the case or touchbar assembly in the field.
