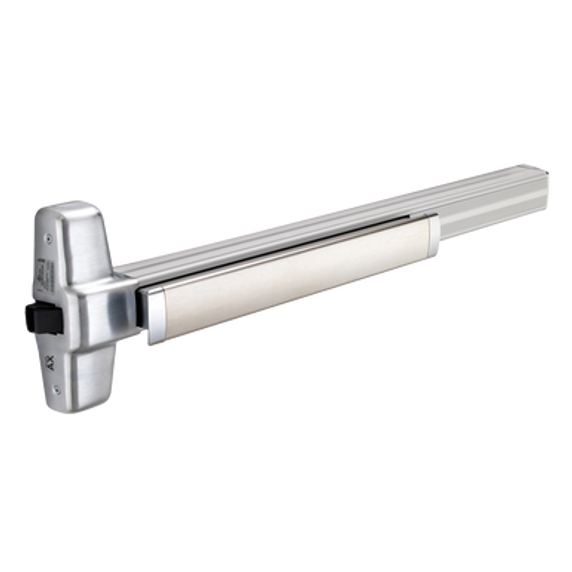

Von Duprin 99EO-F-628-36 Fire Rated Rim Exit Device Exit Only No Trim 36

Product Description

The Von Duprin 99EO-F-628-36 is a fire-rated rim exit device built for exit-only applications without the need for trim. This device is highly durable, designed for use on both aluminum and wood doors, as well as hollow metal doors. It meets UL standards for panic and fire hardware and is certified to ANSI A156.3, Grade 1.

• Fire Rated for added safety
• Exit Only operation, no trim needed
• Compatible with various door materials

Product Highlights

The Von Duprin 99EO-F-628-36 offers a reliable solution for emergency exits, ensuring compliance with safety regulations.

Product Information

Standard Information

• Brand: Von Duprin
• Device Type: Rim Exit Device

Technical Specifications

• Function: Exit Only
• Door Width: 36 inches
• Fire Rated: Yes
• Door Type: Aluminum, Hollow Metal, Wood
• Device Length: 36 inches
• Grade: Grade 1
• Installation: Commercial
• UL Listing Type: UL 10C
• ANSI Number: A156.3
• Mechanical Function: Exit Only
• Device Centerline from Floor: 39 13/16 inches

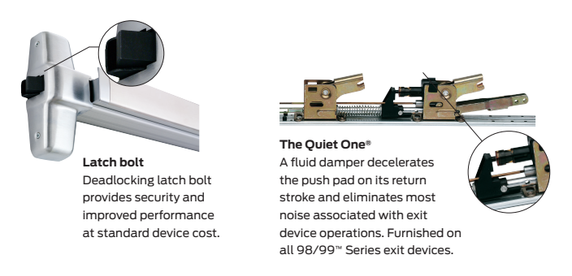

• Latch Bolt: Deadlocking, 3/4 inch throw
• Projection: Pushbar neutral 3 13/16 inches
