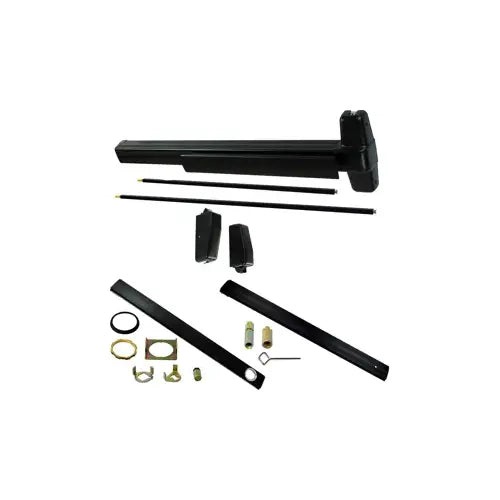

VON DUPRIN 9927EO-711-48 Kit - CD SVR Grooved Exit Device Exit Only 48inch x 84inch

Product Description

The Von Duprin 9927EO-711-48 kit features a cylinder dogging (CD), surface vertical rod (SVR) exit device designed for exit-only applications. This non-handed grade 1 exit device is suitable for doors measuring 48 inches by 84 inches.

• Grade 1 exit device
• Surface vertical rod design
• Fire-rated and field reversible

Product Highlights

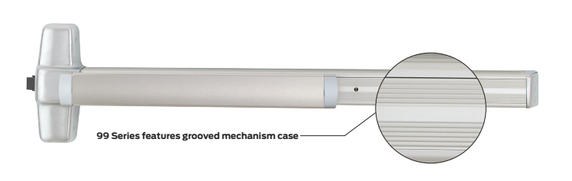

The device is suitable for varying door types including aluminum, hollow metal, and wood. It includes a grooved mechanism case and comes with a complete screw pack for various door thicknesses.

Product Information

Standard Information

• Device Function: Exit Only
• Door Width: 48 inches

Technical Specifications

• Device Lengths: 3 feet
• Centerline from Finished Floor: 39 5/8 inches
• Center Case Dimensions: 8 inches x 2 3/4 inches x 2 3/8 inches
• Mechanism Case Dimensions: 2 1/4 inches x 2 1/4 inches
• Projection: Pushbar neutral 3 13/16 inches, Pushbar depressed 3 1/16 inches
• Latch Bolt Type: Deadlocking anti-friction
• Door Undercut: 1/4 inch recommended
• Vertical Rods: 1/2 inch square tubing
• Bar Style: Push Bar
• Handing: Field Reversible
