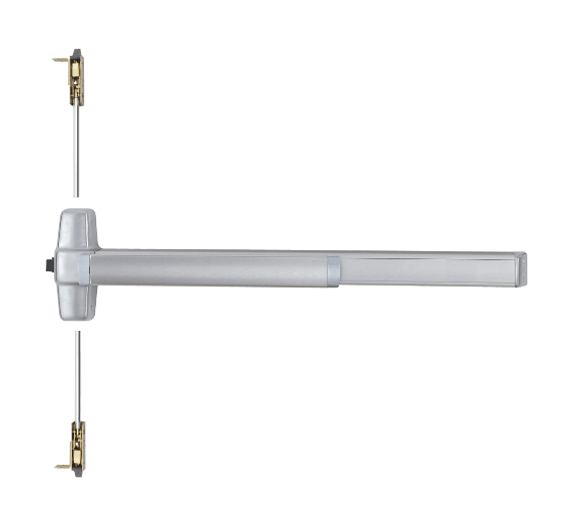

VON DUPRIN 9847EO-710-36 CVR Concealed Vertical Rod Exit Device 36 inch

Product Description

The VON DUPRIN 9847EO-710-36 is a CVR (Concealed Vertical Rod) exit device designed for use on exit-only doors. It is suitable for doors with a width of up to thirty-six inches and a height of one hundred inches. This device is ideal for installations on aluminum, hollow metal, and wood doors. Key features include hex key dogging and field reversible handing, allowing for flexible installation.

• Constructed for aluminum, hollow metal, and wood doors
• Includes hex key dogging for secure locking
• Field reversible handing for easy installation

Product Highlights

This exit device provides durability and reliability for high-traffic areas. With its push bar design, it allows for smooth egress while meeting safety standards.

Product Information

Standard Information

• Function: Exit Only
• Door Type: Aluminum, Hollow Metal, Wood

Technical Specifications

• Handing: Field Reversible
• Door Width: 36 inches
• Device Length: 39 3/8 inches
• Device Projection: Pushbar neutral 3 13/16 inches
• Latch Bolt: Deadlocking top and bottom bolt, 5/8 inch throw
• Vertical Rods: Round 2-piece adjustable rods
• Top Rod Adjustable: From 6'8 inches to 8'4 inches
• Bottom Rod Adjustable: From 35 5/8 inches to 49 5/8 inches
