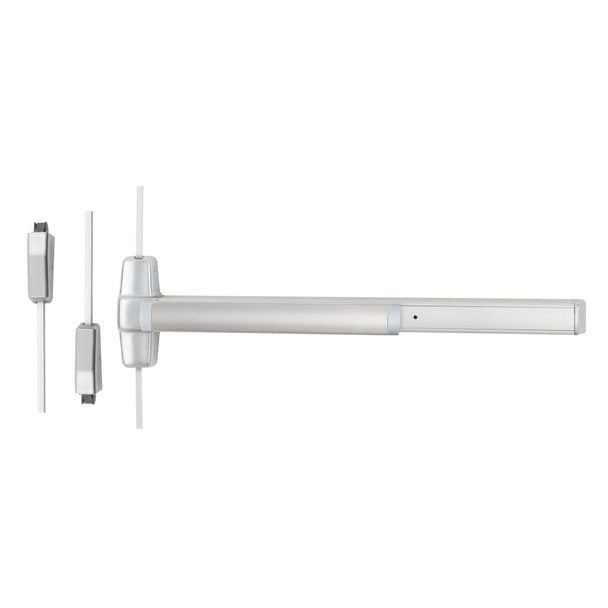

Von Duprin 9827EO 3 26D Surface Vertical Rod Exit Device (36 in) Less Bottom Rod

Brand: VON DUPRIN
SKU: 9827EO 3 26D
Availability: In Stock

Ships same day if ordered by 12 pm
$2,047.06
$2,047.06
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Von Duprin 9827EO 3 26D is a Grade 1 surface vertical rod exit device configured as exit-only with hex key dogging. The mechanical, non-handed unit includes a wide stile pushpad and smooth mechanism case sized for a 36 in device and 84 in door height; it ships less bottom rod and less trim. The device meets ANSI A156.3 and is UL listed for panic exit hardware with deadlocking top and bottom bolts.

  • Grade 1 surface vertical rod exit device, exit-only function with hex key dogging (non fire rated)
  • Designed for 36 in device length and 84 in door height; fits stile width 3 3/4 in and door thickness 1 3/4 in
  • Mechanical operation with deadlocking anti-friction top and bottom bolts (5/8 in throw); wide stile pushpad and smooth mechanism case

Product Highlights

Grade 1 surface vertical rod, exit-only, 36 in device for 84 in door, hex key dogging, less bottom rod and less trim

Product Information

Standard Information

  • Brand: VON DUPRIN
  • Manufacturer Part Number: 9827EO 3 26D
  • Country of Origin: United States
Technical Specifications
Brand
Von Duprin
MPN
9827EO 3 26D
Device Type
Surface vertical rod exit device
Series
98 (smooth case)
Grade
Grade 1
Function
Exit Only (EO)
Dogging
Hex key dogging (non fire rated)
Mechanical Operation
Mechanical
Finish
Satin chrome
Device Length
36 in
Door Width
36 in
Door Height
84 in
Door Thickness
1 3/4 in
Fits Stile Width
3 3/4 in
Minimum Stile Size
3-11/16 in
Handing
Non-handed
Trim
Less trim (less bottom rod option)
Includes Cylinders
No
Fire Rated
No
Standards/Certifications
ANSI A156.3
UL Listing
UL listed for panic exit hardware
Latch Bolt
Deadlocking anti-friction top and bottom bolts, 5/8 in (16 mm) throw
Top Strike
299
Vertical Rods
1/2 in square tubing; standard rods accommodate 7 ft doors; top rod 34 15/16 in, bottom rod 31 1/2 in; extension rods available
Center Case Dimensions
8 in x 2 3/4 in x 2 3/8 in (203 mm x 70 mm x 60 mm)
Mechanism Case Dimensions
2 1/4 in x 2 1/4 in (57 mm x 57 mm)
Pushbar Projection
Neutral 3 13/16 in (97 mm); depressed 3 1/16 in (78 mm)
Top and Bottom Latch Case
4 1/2 in x 2 1/8 in x 1 1/2 in (114 mm x 54 mm x 38 mm)
Pushpad
Wide stile pushpad
Door Compatibility
Single and double doors (fits hollow metal with 86 or 161 cutouts per model variations)
Notes/Options
Field reversible in some configurations; available in multiple finishes and size variants; smooth mechanism case
