Product Description

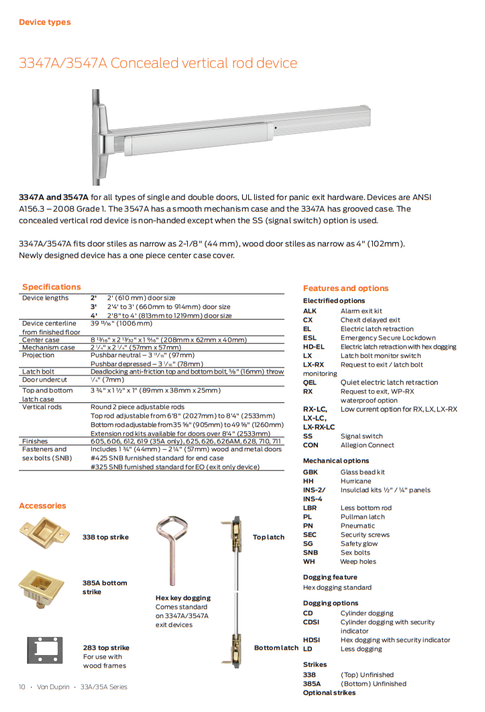

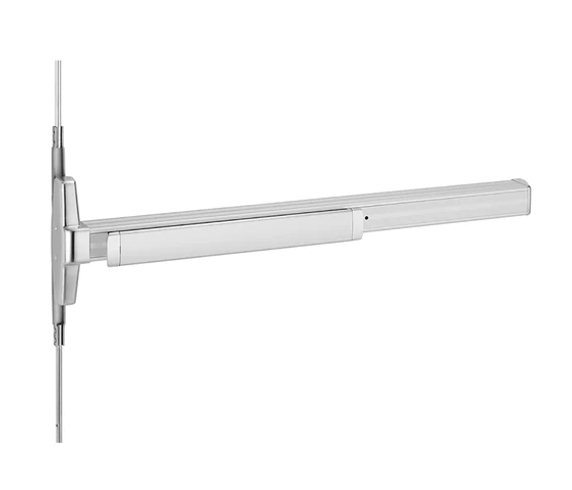

The VON DUPRIN 3347A-EO-711-36 is a concealed vertical rod exit device for exit-only applications on single and double doors that include a mullion. It is UL listed for Panic Exit Hardware and meets ANSI A156.3 Grade 1 standards. This device features a grooved mechanism case and fits door stiles as narrow as one and three-quarters inches and wood door stiles as narrow as four inches.

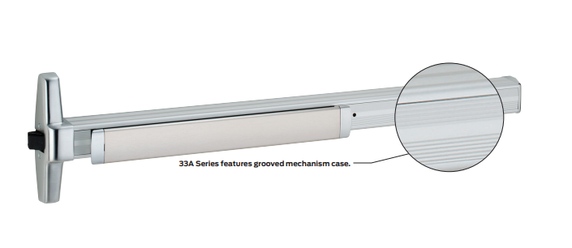

- Grooved mechanism case ensures durability and reliability.
- Equipped with a deadlocking latchbolt to prevent forced latchbolt retraction.
- Includes a fluid dampener to decelerate the pushpad and reduce noise during operation.
Product Highlights
The VON DUPRIN 3347A-EO-711-36 is specially designed for secure exit-only access while providing safety and convenience in commercial applications.
Product Information
Standard Information
-
Device Type: Exit Only
-
Door Fit: Single and double doors
Technical Specifications
-
Device Lengths: 36 inches (711mm to 914mm) Door Size
-
Door Size: 36 inches (864mm to 1219mm)
-
Dogging Feature: Hex key dogging standard
-
Dogging Options: CD Cylinder Dogging; LD Less Dogging
-
Electric Options: LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; SS Signal Switch; EL Electric Latch Retraction; ALK Alarm Exit Kit
-
Miscellaneous Options: PN Pneumatic Latch Retraction; LBR Less Bottom Rod; GBK Glass Bead Kit; PL Pullman Latch
-
Fasteners & Sex Bolts: Includes 1 three-quarter inches (44mm) to 2 and one-quarter inches (57mm) for wood and metal doors
-
Latch Bolt: Deadlocking Anti-friction Top & Bottom Bolt five-eighths inches (16mm) throw
-
Device Centerline from Finished Floor: Thirty-nine and five-eighths inches (1006mm) Standard, Adjustable from thirty-five and five-eighths inches (905mm) to forty-nine and five-eighths inches (1260mm)
-
Door Undercut: one-quarter inches (7mm)
-

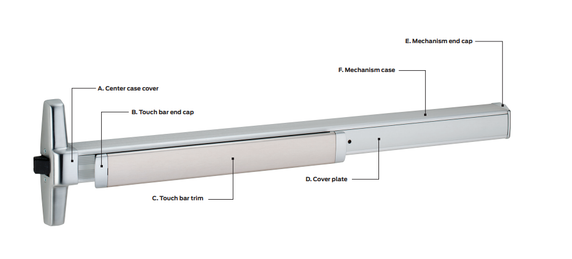

Center Case Dimensions: Eight and three-sixteenths inches x two and thirteen-thirty-seconds inches x one and nine-sixteenths inches (208mm x 62mm x 40mm)
-
Mechanism Case Dimensions: Two and one-quarter inches x two and one-quarter inches (57mm x 57mm)
-
Vertical Rods: Round two piece adjustable rods
-
Top Rod Adjustable From: Six feet eight inches (2027mm) to eight feet four inches (2533mm)
-
Bottom Rod Adjustable From: Thirty-five and five-eighths inches (905mm) to forty-nine and five-eighths inches (1260mm)
-
Projection Pushbar Neutral: Three and thirteen-sixteenths inches (97mm)
-
Pushbar Depressed: Three and one-sixteenth inches (78mm)
-
Device Functions: EO - Exit Only
-
Device Handing: Non-Handed (except with SS option)
-
Top and Bottom Latch Case: Three and three-fourths inches x one and one-half inches x one inch (89mm x 38mm x 25mm)
