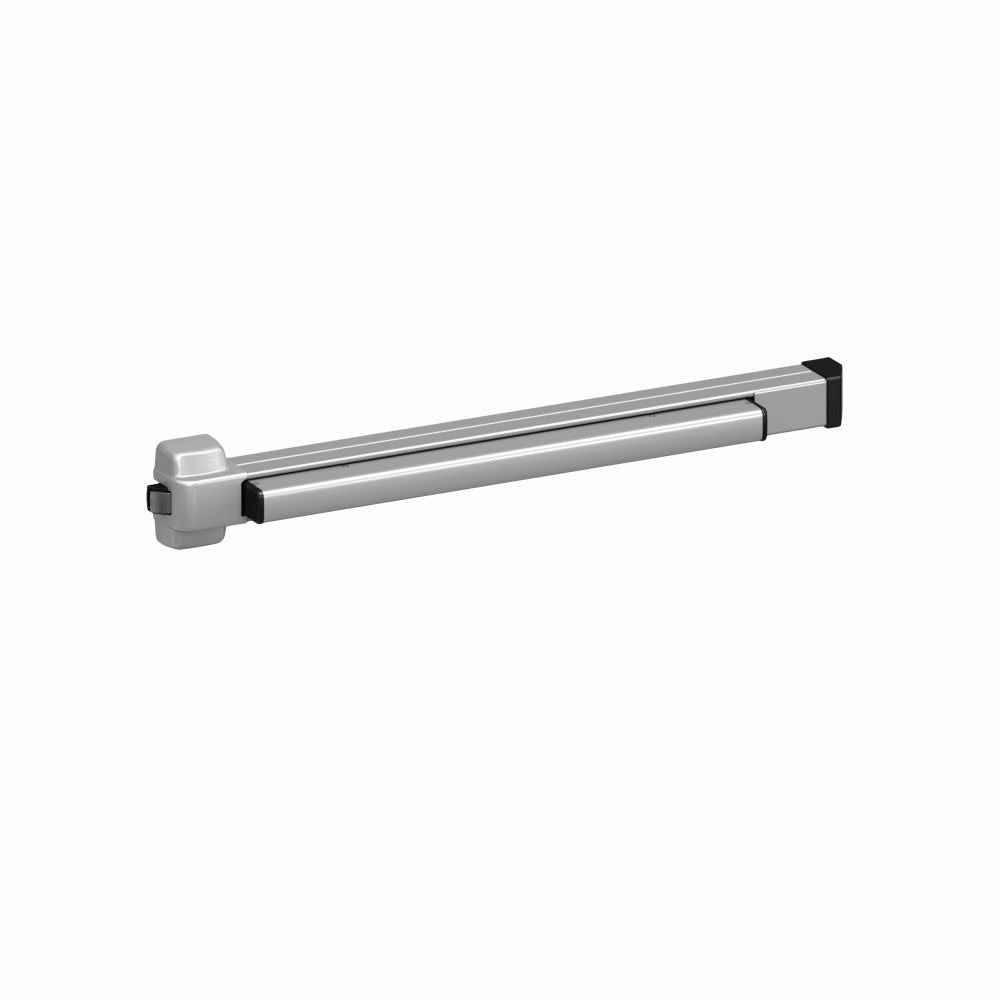

Von Duprin 22EOF6893 Fire Rated Rim Exit Device 689 Aluminum

Product Description

The VON DUPRIN 22EOF6893 is a fire-rated rim exit device designed for single-door commercial and institutional applications. It mounts to the face of the door and activates the latch mechanism when the crossbar is depressed, allowing rapid egress in emergency situations. Finished in 689 aluminum, it suits high-traffic public building environments where both code compliance and durability are priorities. The unit ships as a single device and is suitable for doors with a 36.75-inch crossbar span. Licensed locksmiths, door hardware specialists, and commercial contractors are the typical installers.

This exit device is intended for commercial facilities including schools, hospitals, office buildings, and public assembly spaces where fire-rated egress hardware is required by code. The rim-mount configuration makes it appropriate for metal or wood doors where a surface-mounted device is preferred over a mortise or concealed vertical rod configuration. It is sold individually and available in case quantities of three units.

Key Features

• Fire-rated rim exit device for single-door egress applications
• 689 aluminum finish for corrosion resistance in high-use environments
• Crossbar span of 36.75 inches suitable for standard 3-foot door openings
• Surface rim-mount design simplifies installation on metal and wood doors
• Sold individually with a case quantity of three available

Compatibility

Designed as an OEM-style fire-rated rim exit device for commercial single-door applications requiring surface-mounted egress hardware.

Installation Notes

Installation should be performed by a licensed door hardware technician or commercial contractor familiar with NFPA 80 fire door assembly requirements and local building codes. Verify that the door and frame assembly carry the appropriate fire rating before mounting the device. All electrical or access control integrations should be completed with power isolated from the system. Do not modify the crossbar or latch mechanism, as alterations may void the fire rating listing.
