Vogt Valves 12111SW 2 Gate Valve 2 in Replacement 12111SW

Product Description

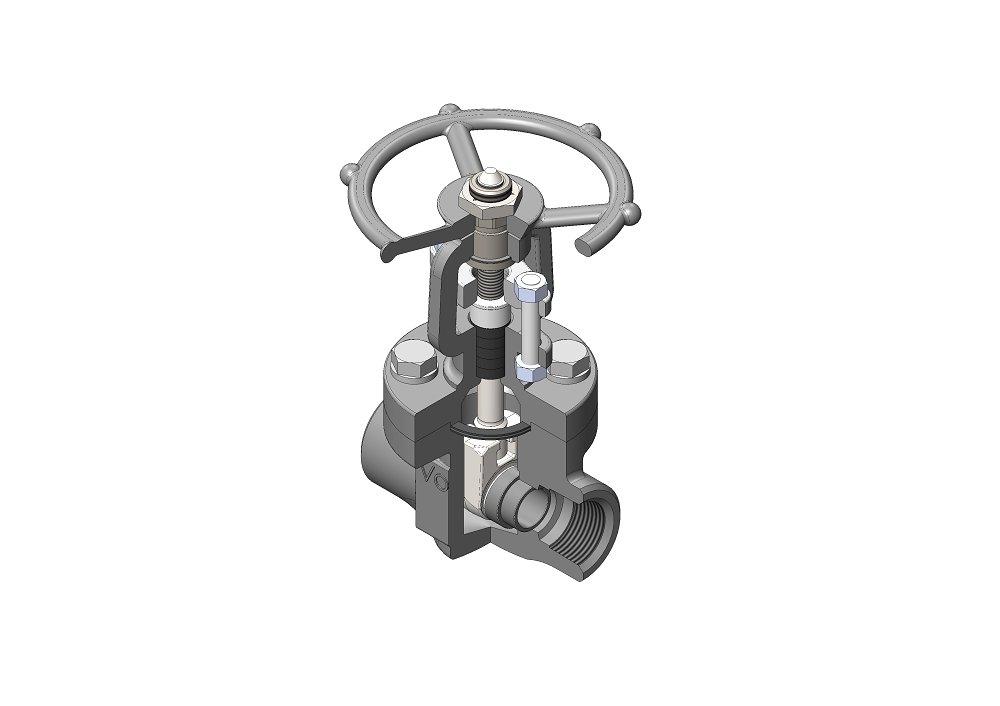

The Vogt Valves 12111SW 2 is a Class 800 Forged Carbon Steel Gate Valve, designed for use in a fully open or fully closed position. When open, media flows with minimal turbulence and pressure drop. Forged gate valves provide an extended life of safe operation under a wide range of pressure-temperature conditions.

• Conventional-port
• Metal-to-metal seating surfaces
• Standards/Certifications: ASME B16.34, API 602 certified

Product Highlights

This 2 inch gate valve features a socket weld connection, forged carbon steel body, and is suitable for use in a variety of applications.

Product Information

Standard Information

• Brand: VOGT VALVES
• Manufacturer Part Number: 12111SW 2

Technical Specifications

• Connection Size: 2 in
• Connection Type: Socket Weld
• Flow Co-Efficient: 117.6 Cv
• Item Name: Gate Valve
• Material Specifications: ASTM A105
• Material: Forged Carbon Steel
• Pressure Class: Class 800
• Pressure Rating: 1975 psi
• Series: 12111SW
• Temperature Rating: 100 deg F
• API: API 602
• ASME: ASME B16.34
• ASTM: ASTM A105
• Coating: Hardfaced
• Collection: Series 12111
• End Connection 1: Socket Weld
• End Connection 2: Socket Weld
• End Connections: Socket Weld
• Handle Length (in): 7
• Length: 5-1/4
• Material Type: A105
• Maximum Temperature: 100
• Valve Body Material: Forged Steel
• Valve Body Style: Socket Weld
• Valve Bonnet Type: Bolted
• Valve Operator: Handwheel
• Valve Port Opening: Standard Port
• Valve Size: 2 in
• Valve Stem: Outside
• Valve Type: Gate Valve
